INSTALLATION SHEET

CH93834

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20180109

: kuzcolighting.com

LED Chandelier

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

Please Note:

• For dimming, a TRIAC or an ELV type of dimmer is required.

1.

2.

3.

4.

Remove the fixture from its original packaging. Next, remove

the mounting plate within the canopy by removing (1c)(2a)

the screws Secure the mounting plate to the (2b). (1c)

electical junction box with screws Connect all wires (1a)(1d).

(1b) (1c)around the crossbar correctly black to black “L”,

white to white “N” and the ground wire with provided

marrettes from the hardware package. Secure the mounting

plate to the junction box with screws provided (1c)(1a)(1d)

in the hardware package. Make sure to reinforce the wood

behind the drywall for extra support and use the woodscrews

(1e)(1c) to secure the crossbar to the ceiling.

Before you mount the canopy to the mounting plate, select

the desired length you would like the fixture to hang down

from the ceiling. To set the fixture hanging height, simply push

in the sleeve . Installer has the flexibility to adjust fixture (2c)

height and posture by pushing or pulling wires individually.

Release the sleeve and the wire will be held tightly in (2c)

place.

You are now ready to mount the canopy to the mounting

plate. Align the holes on the sides of canopy with the (2a)

holes on the sides of mounting plate . Next, push the (1c)

canopy to the mounting plate and use the screws (2a)(1c)

(2b). This will secure the canopy to the mounting plate.

You have now completed the installation of your fixture,

enjoy.

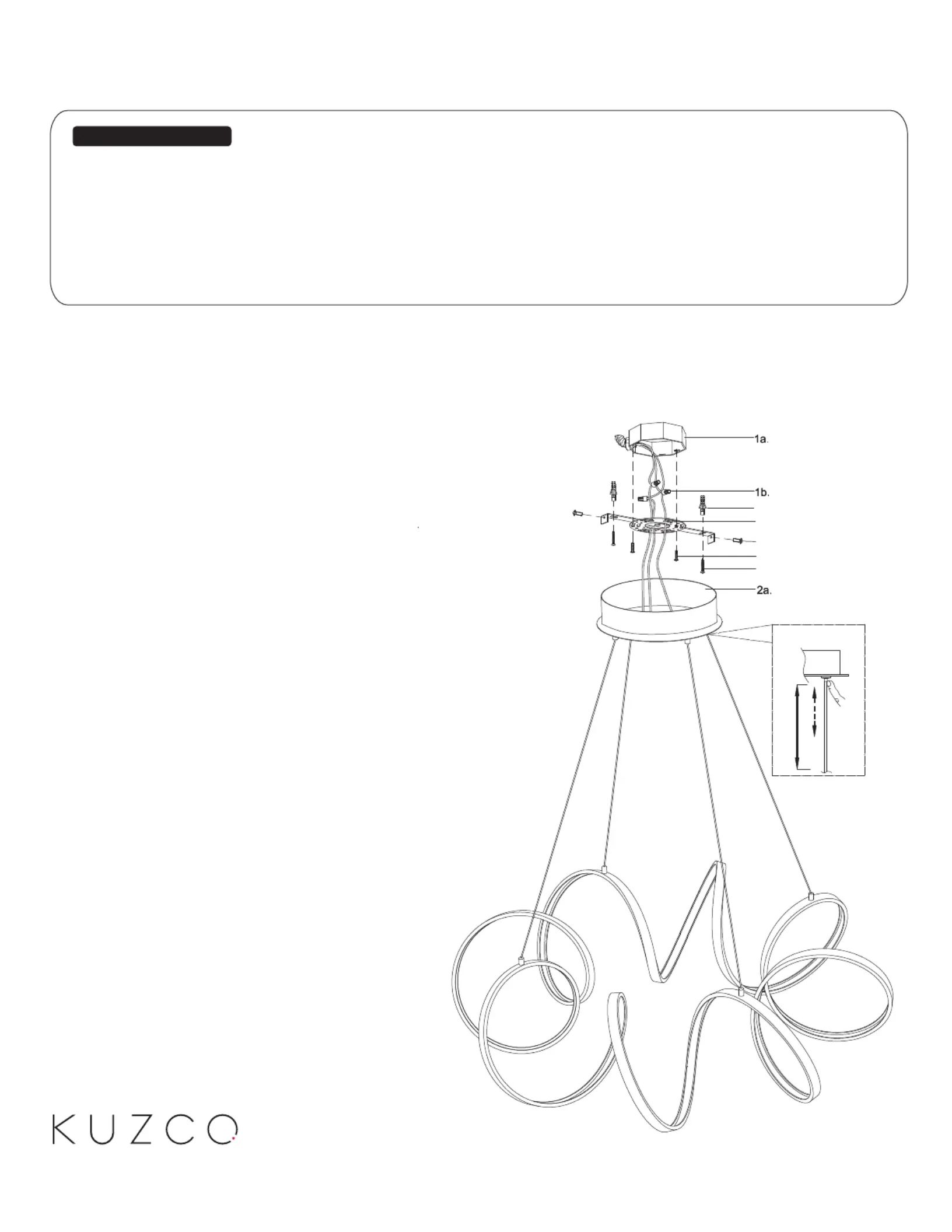

2b.

1e.

1c.

1d.

1e.

2c.
