INSTALLATION SHEET

LP93742

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20160509

: kuzcolighting.com

LED Linear Pendant

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

Please Note:

• For dimming, a TRIAC type of dimmer is required.

1.

2.

Remove the fixture from its original packaging. Next,

remove the mounting plate from within the (1d)

canopy by un-threading the two nuts .(2a) (2b)

Center the mounting plate to the junction box (1d)

(1a)(1g). and secure to the ceiling with screws

Make sure to reinforce the wood behind or install

plastic anchors to the ceiling. Now install the (1b)

two screws provided to secure the mounting (1f)

plate to the junction box .(1a)

Before you mount the canopy to the mounting plate

select the desired length you wish the pendant to

hang. To set the fixture hanging height, simply push

in the sleeve at the canopy where the wire (2c)

comes out from. Push the wire up to shorten, or pull

the wire down to lengthen. Release the sleeve (2c)

and the wire will be held tightly in place.

You are now ready to mount the canopy. First

connect all wires correctly black to black “L”, white to

white “N” and the ground wire with provided

marrettes from the hardware package. Align the (1c)

threaded studs with the holes on the surface of (1e)

the canopy Next, push the canopy to the (2a).(2a)

mounting plate and thread on the two nuts (1d) (2b)

on to the threaded studs . This will secure the (1e)

canopy to the mounting plate.

You have now completed the installation of your

fixture, enjoy.

3.

4.

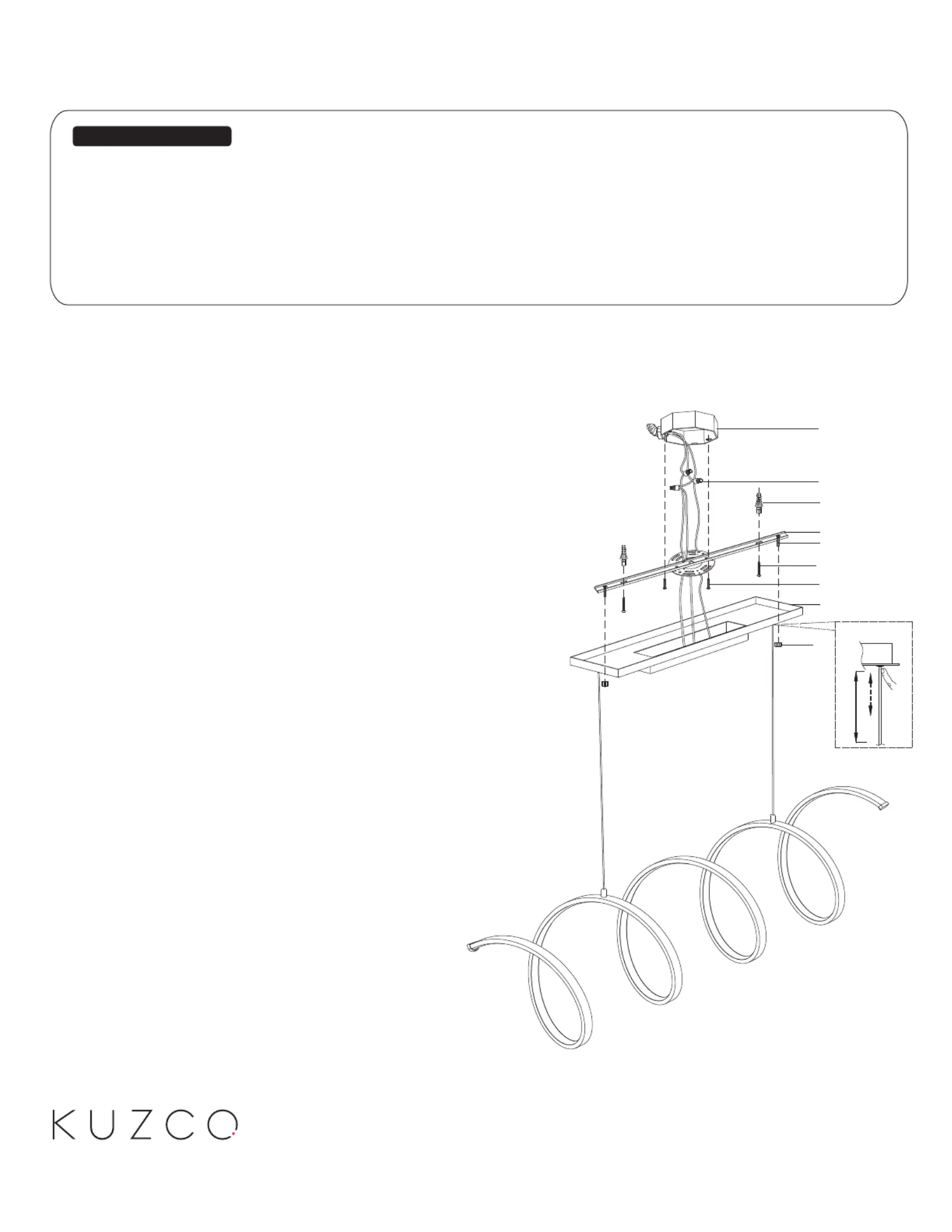

1a.

1c.

1b.

1d.

1e.

1f.

2a.

2b.

2c.

1g.
