INSTALLATION SHEET

CH97139

Ceiling LED Chandelier

START FROM HERE

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20200714

: kuzcolighting.com

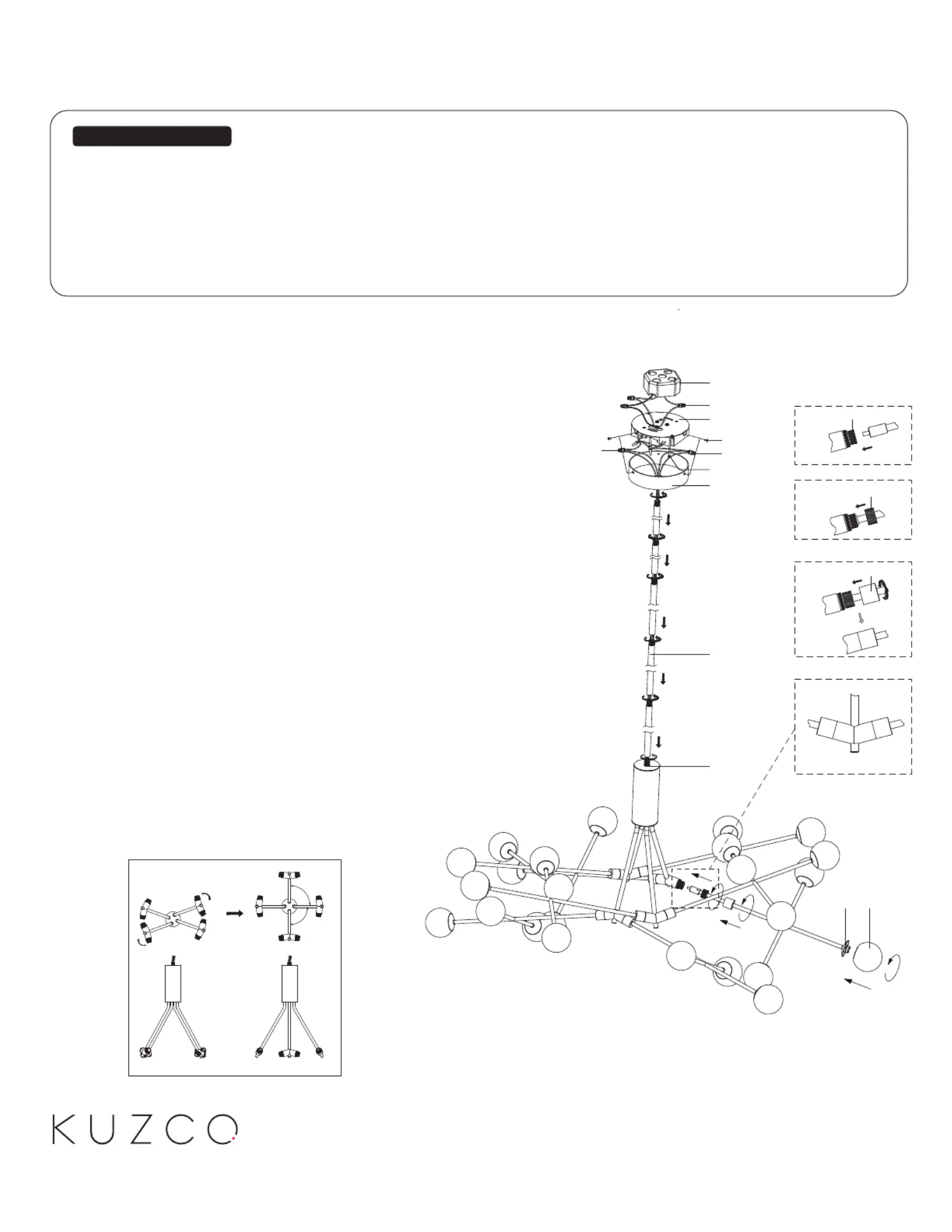

1. Remove fixture from its original package.

2. Separate mounting plate from canopy by(1c)(2a)

removing canopy screws (2b).

3. Determine hanging height of fixture by securing rods

(2c) to canopy and to fixture body (2a)(3a)

4. Attach mounting plate to electrical junction box (1c)(1a)

using screws provided in hardware package.(1d)

5. Make proper electrical connections (black to hot “L”,

white to neutral “N”, ground to “GND”, negative (black),

positive (red) with wire nuts provided in hardware (1b)

package.

6. Attach canopy to mounting plate with canopy(2a) (1c)

screws (2b)

7. Use DC jack to make connection and secure (3b)

decorative arm with knurled nut and cover it with (3c)

threaded cap (3d).

8. Thread decorative glass sphere into pendant base (3f)

.(3e)

90°

90°

1a.

1b.

1c.

1d.

Wire A

2b.

2a.

3b.

3c.

3d.

2c.

Can Rotate Pendant Arms Up To 90°

1

2

3

4

3a

3e.3f.

Wire B
