19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20190226

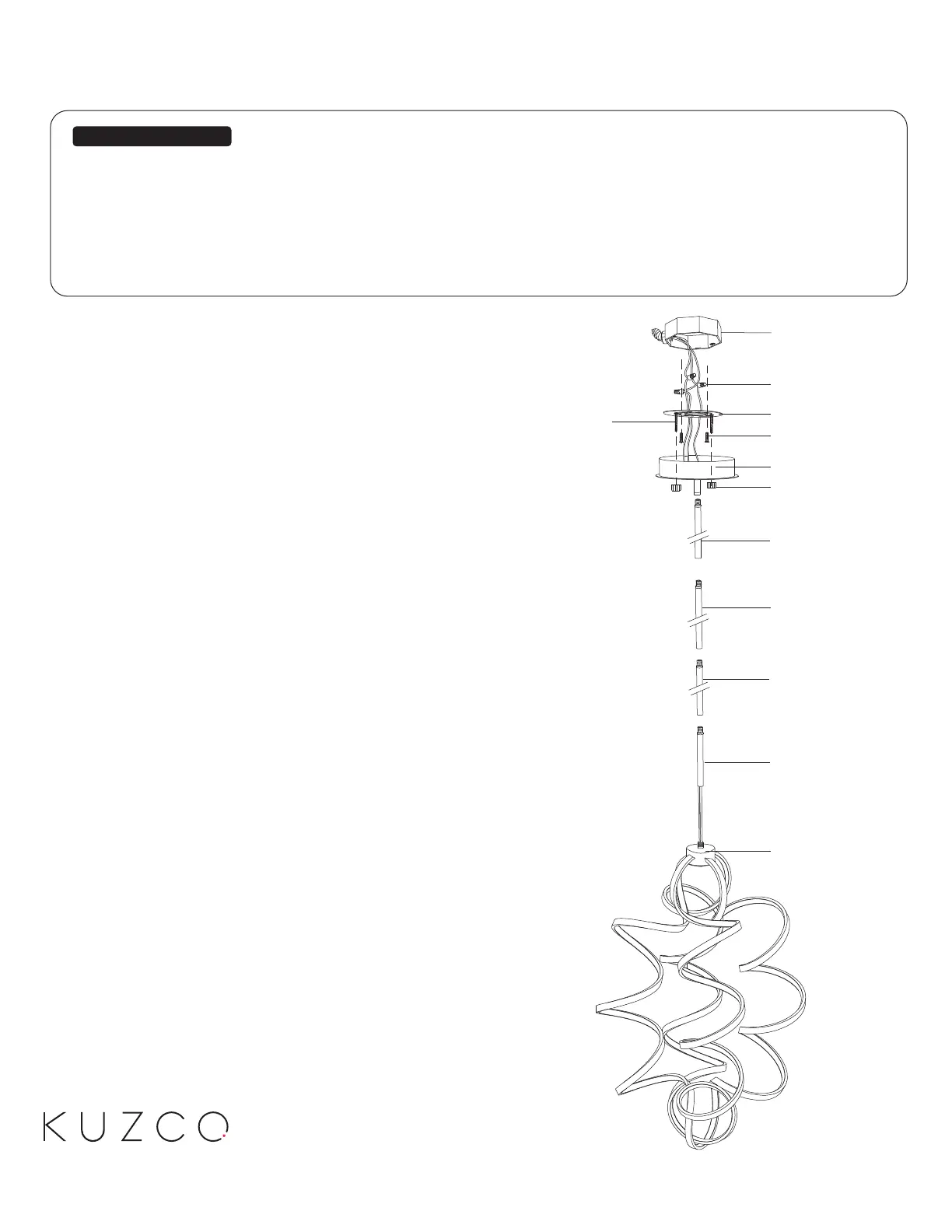

INSTALLATION SHEET

CH93934

Ceiling LED Pendant

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

Please Note:

• For dimming, a ELV or TRIAC type of dimmer is required.

CAUTION:CAUTION: HEAVY FIXTURE, THE JUNCTION BOX

NEEDS TO BE REINFORCED BEFORE INSTALLATION. ALL MOUNTING SCREWS

MUST SCREW INTO A MINIMUM OF 1” OF WOOD BEHIND THE DRYWALL. DO NOT

MOUNT THIS FIXTURE JUST TO DRYWALL

. (Be sure all wood that you screwed into, is

secured to the cross beams/ceiling joists behind the drywall)

1.

Remove the fixture from its original packaging. Remove the mount-

ing plate (2c) from within the canopy (2f) by removing the two

decorative nuts (1f). Attach the mounting plate (2c) to the reinforced

junction box (2a) on the ceiling using two screws (2d) provided in the

hardware package.

Select the hanging height of the fixture, install the extension rods

in-between the canpoy (2f) and LED fixture (1a), feed the wire and

cable starting from bottom through each rod until you reach the fixed

swivel connector. Once the rods are fully connected and the wires

are pulled into the canopy (2f), using a wrench to secure, connect

the wires to the DC driver using the marrettes provided, negative to

negative and positive to positive (refer to the diagram on the driver).

Repeat the step for the second driver. (Ensure the line voltage

power lines are connected to the line voltage side of each driver - L

to live and N to neutral). Connect all wires (2b) correctly L live wire

(black to black) N neutral wire (white to white) and G ground to

ground with provided marrettes.

Align the threaded rods (2e) to the holes on the canopy (2f) , push

the canopy up towards the ceiling and secure with two decorative

nuts (1f). This will secure the canopy to the mounting plate (2c).

You have now completed the installation of your fixture, enjoy.

2.

3.

4.

2a.

1a.

2b.

1b.

1c.

1d.

1e.

1f.

2c.

2d.

2e.

2f.
