INSTALLATION SHEET

PD88548

Ceiling LED Pendant

START FROM HERE

1a.

1b.

1f.

1c.

1e.

1g.

2a.

2g.

2b.

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

• 120V input

1. Remove fixture from its original package

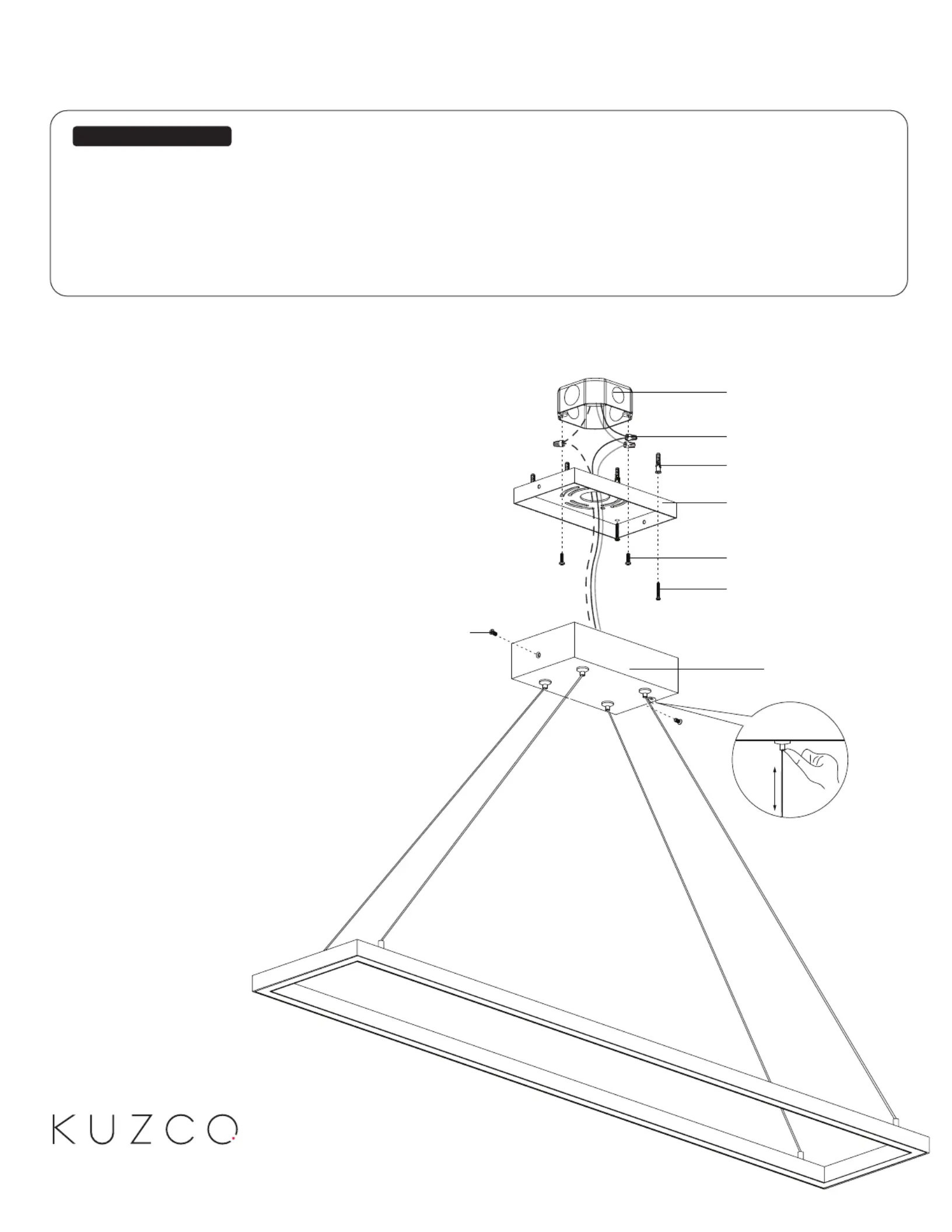

2. Separate mounting plate from canopy by (1c)(2a)

removing canopy screws (2b)

3. Attach mounting plate to electrical junction box (1c)(1a)

using junction box screws provided in hardware (1e)

package

4.Secure mounting plate to mounting surface(1c)

with anchors and screws (1f)(1g)

5. To change fixture height, push and hold wire gripper

(2g), slide wire to desired length and then release wire

gripper (2g) to secure

6. Make proper electrical connections ( to “L”, blackhot

white to “N”, to with wire nuts neutralground“GND”)

(1b) provided in hardware package

7. Attach canopy to mounting plate with canopy (2a)(1c)

screws (2b)

8. Fine tone wire length if necessary, by push and hold

wire gripper and then adjust wire to desired length(2g)

20220323
