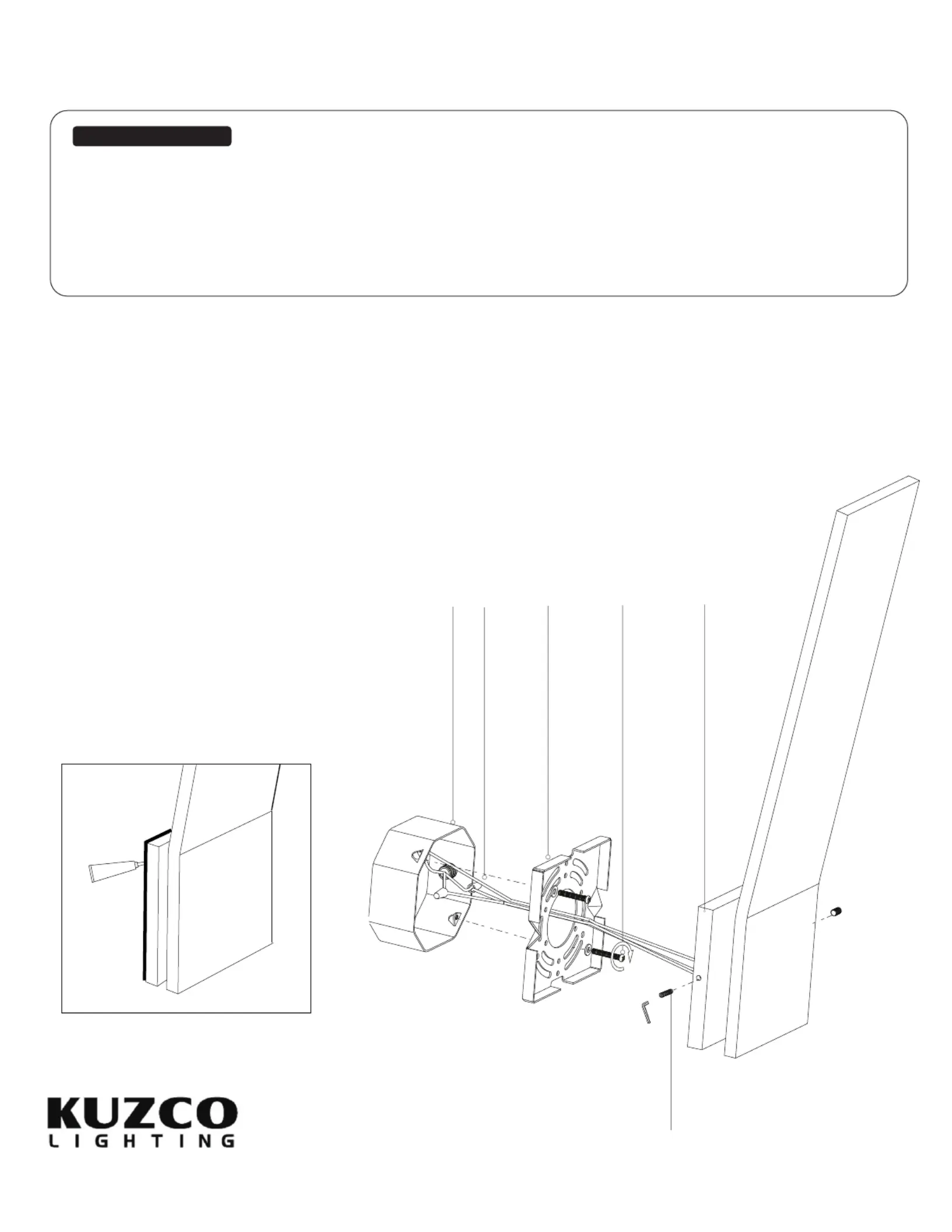

Remove the fixture from its original packaging. Remove the
mounting plate from within the canopy backplate (1c)(2b)
by loosening the two set screws . Attach the mounting (2a)
plate (1c) to the electrical junction box (1a), using the two
screws (1d) provided in the hardware package.
Attach the canopy to the mounting plate , which is (2b)(1c)
attached to the electrical junction box on the wall. (1a)
First attach all wiring with the provided marettes (1b)
(white to white “N”, black to black “L”, ground to ground
“G”). Now push the canopy onto the mounting plate (2b)
(1c) (2a) and secure with the two set screws using the
allen key provided.
You have now completed the installation of your fixture,
enjoy.
INSTALLATION SHEET
EW7918
LED Exterior Wall Sconce
START FROM HERE
•
Make sure power is completely off at the fuse box.
•
Have your fixture installed by a qualified licensed electrician
•
Prepare everything in a clear area.
•
Wear gloves at all times during this installation.
•
Read instructions carefully before you start assembly.
•
Keep this instruction sheet for future reference.
Technical Support: 1-877-452-6858
Please Note:
•All Kuzco LED fixtures come with pre-wired LED module(s).
• Unless instructed to do so, please do not touch any part of the LED module(s) as any
unnecessary contact with the module could cause permanent damage.
• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.
1.
2.
3.
Illustration 1.
To prevent moisture from entering the outlet box and
causing a short, seal around the top and side perimeter
between the fixture and the wall surface with weather
resistant caulking (). The space at see illustration 1
bottom should be left un-caulked to prevent moisture
build-up.
3.
Caulking
