INSTALLATION SHEET
PD15416
Ceiling LED Pendant
START FROM HERE
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required
• 120V input
• Make sure is POWERCOMPLETELY OFF at the fuse box
• Have your fixture installed by a qualified licensed electrician
• Prepare everything in a clear area
• Wear gloves at all times during this installation
• Read instructions carefully before you start assembly
• Keep this installation sheet for future reference
Technical Support: 1-855-855-8926
1.
2.
3.
1a.
1b.
4a.
1c.
1e.
2a.
3c.
3d.
3b.
3a.
2g.

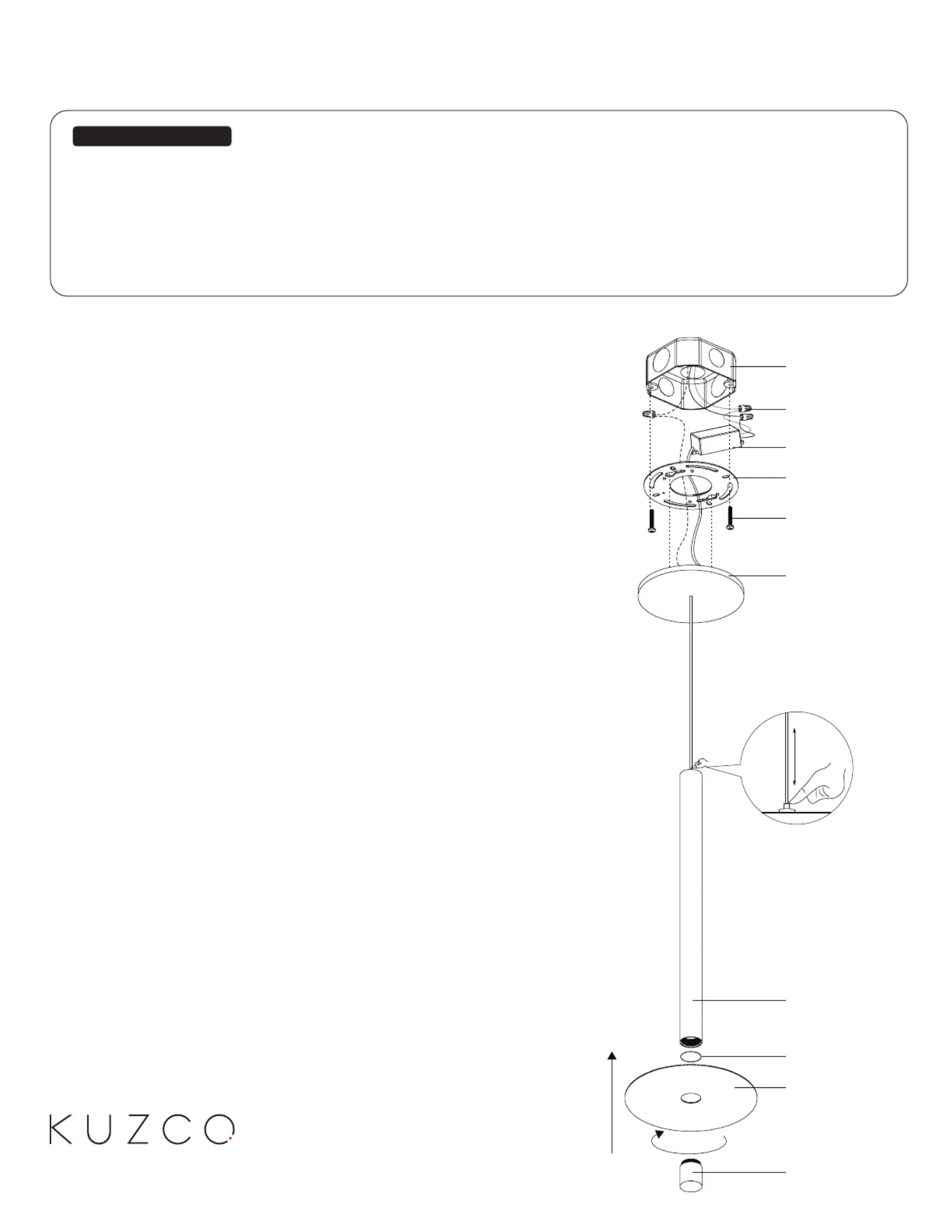

Remove fixture from its original package
Attach mounting plate to electrical junction box (1c)
(1a)(1e) using junction box screws provided in
hardware package
To change fixture height, push and hold wire gripper
(2g), slide wire to desired length and then release wire
gripper (2g) to secure
Make proper electrical connections ( to “L”, blackhot
whiteground“GND”) to “N”, neutral to with wire
nuts (1b) provided in hardware package and place
driver (4a) inside junction box (1a)
Align keyholes on mounting plate to Pan-Head (1c)
Crossbar Mounting Screws in canopy , insert and (2a)
turn to secure canopy to mounting plate (2a)(1c)
Secure silicone ring , follwed by shade to (3d)(3c)
pendant body by threading acrylic diffuser (3a) (3b)
clockwise
Fine tone wire length if necessary, by push and hold
wire gripper and then adjust wire to desired (2g)
length
4.
5.
6.
7.
20220322
