Remove the fixture from its original packaging. Remove

the mounting plate from the canopy by (1c)(2a)

removing the two screws all the diffusers (2b). Attach

(3a)(3b) to the fixture arms .Attach the mounting

plate to the electrical junction box using (1c)(1a)

the two screws provided in the hardware package.(1d)

Connect all wiring with the provided marrettes (white (1b)

to white “N”, black to black “L”, ground to ground “G”).

Attach the canopy to the mounting plate and (2a)(1c)

secure with two screws (2b).

You have now completed the installation of your fixture,

enjoy.

INSTALLATION SHEET

WS19707

LED Wall Sconce

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

Please Note:

• For dimming, a TRIAC or an ELV type of dimmer is required.

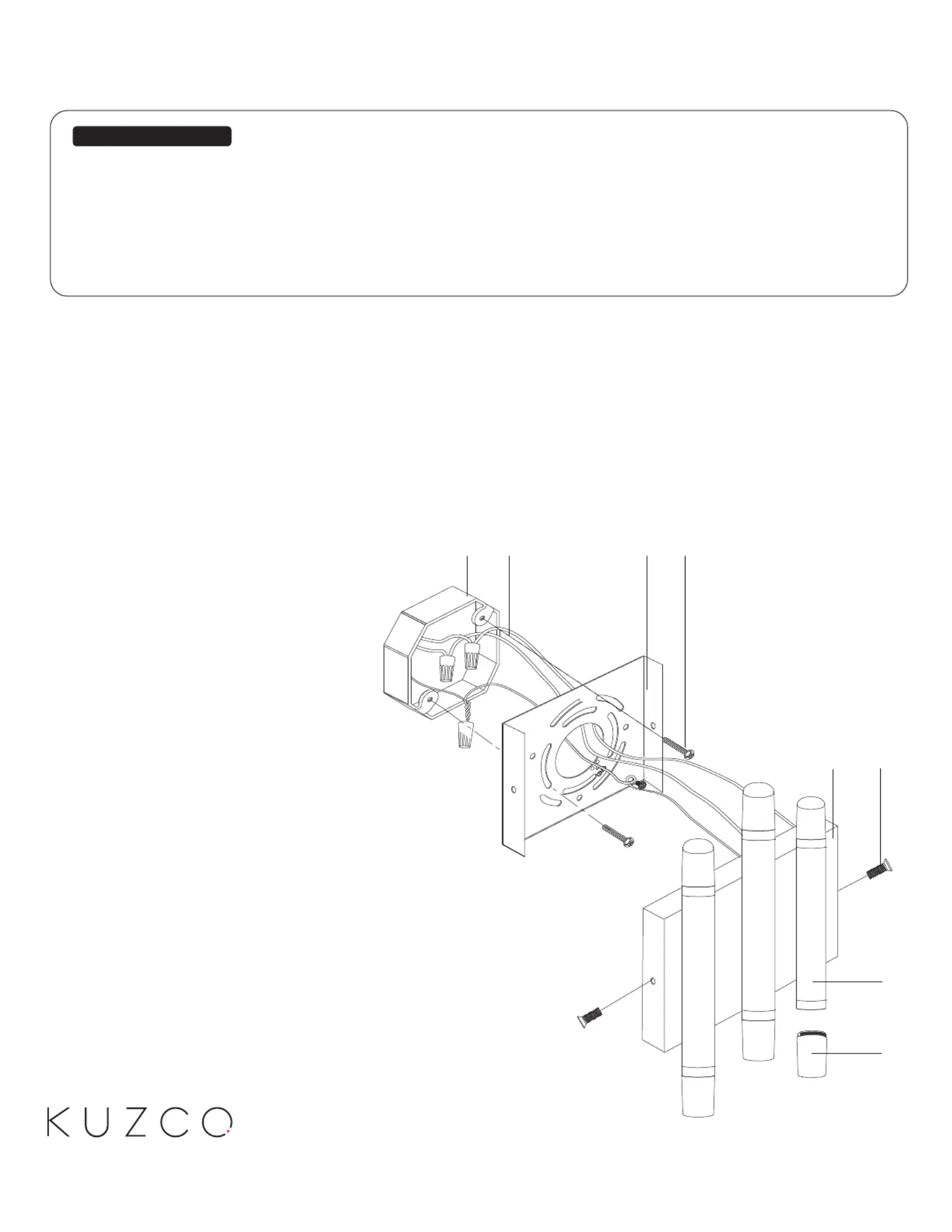

1.

2.

3.

3b.

3a.

1a.1b.

1c.1d.

2b.2a.
