WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or any maintenance

of the xture.

• To avoid damage, falling, electric shock or re, do not modify the

xture or replace accessories.

• Only authorized, qualied personnel should install this xture and

should follow the owner’s manual.

• Do not dismantle the xture.

• Do not touch the power supply when the xture is operating.

• For use in environments where an accumulation of non-conductive

dust on the xture may be expected.

• Damp rated. Do not use outdoors.

• Do not mount near gas or electric heaters.

• Do not let power cords touch hot surfaces.

• Use caution when servicing batteries. Avoid possible shorting.

• Equipment should be mounted in locations and at heights where it

will not readily be subjected to tampering by unauthorized personnel.

• The use of accessory equipment is not recommended and may cause

an unsafe condition.

• Do not use this equipment for other than intended use.

• Disconnect AC Power and unplug battery before servicing.

• Battery in this unit may not be fully charged. After the AC service is

supplied to unit, let the battery charge up for at least 24 hours before

performing any tests.

IMPORTANT: This product must be installed in accordance with the

applicable installation code by a person familiar with the construction

and operation of the product and the hazards involved.

Models: 67-123, 67-124

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2023 Satco Products, Inc. 3/23 v1.2

MAXIMUM MOUNTING HEIGHT:

• 2 LED Heads: 19ft (5.79m)

• 3 LED Heads: 23ft (7m)

MAINTENANCE: Battery may need to recharge upon initial power up.

We recommend that the equipment be tested regularly in accordance

with local codes. Replace the batteries as needed if discharge time does

not achieve 90 minutes.

OPERATION: Press the test button, LED Heads will turn on and the

LED indicator will turn off. Release the test button, LED indicator will turn

on and the LED heads will turn off.

TROUBLE SHOOTING GUIDE: If LED indicator does not illuminate,

check the following:

1. Check AC supply – verify that unit has 24 hours AC supply.

2. Unit is shorted or battery is not connected.

3. Battery discharged. Permit unit to charge for 24 hours then re-test.

Use Flexible Conduit Only

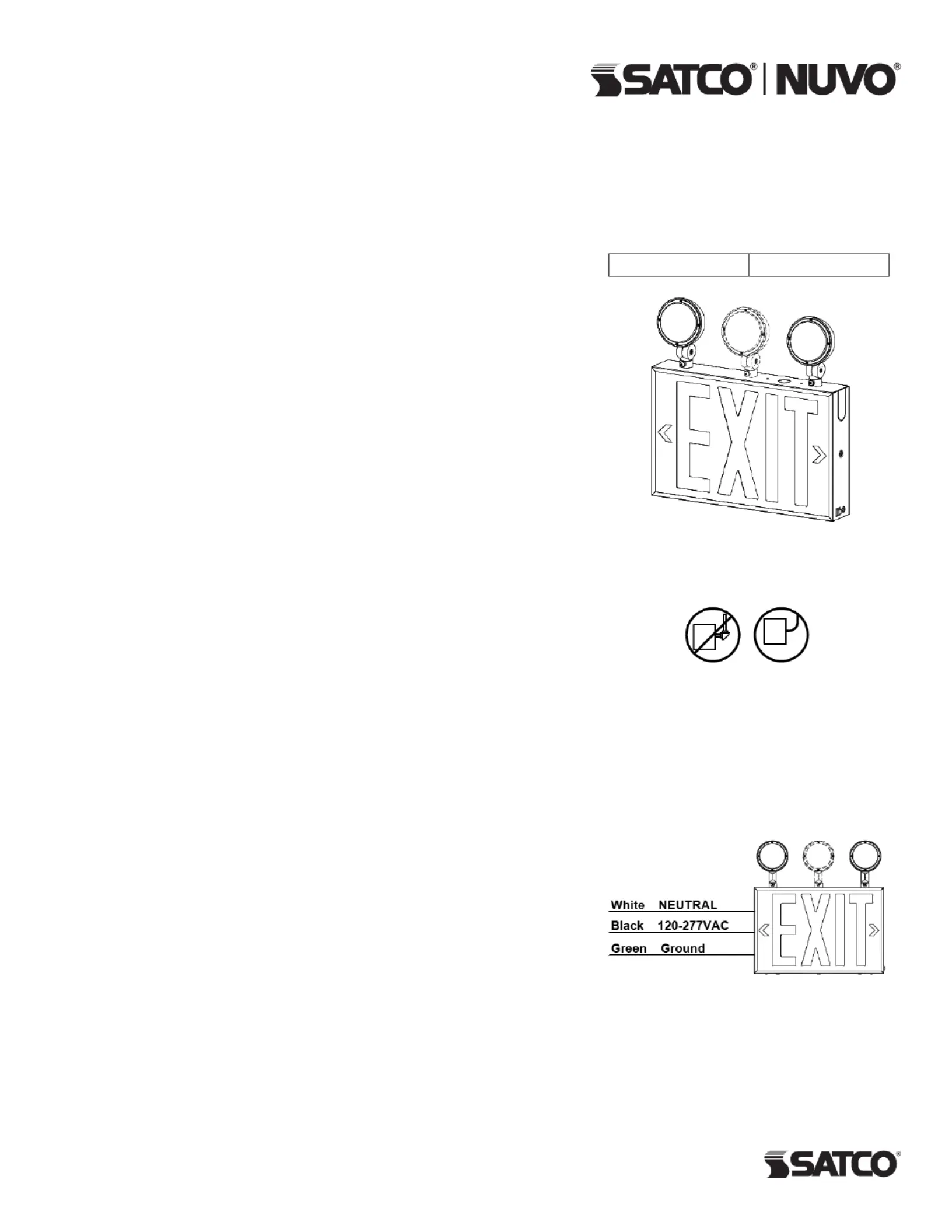

WIRING DIAGRAM

• Connect the white wire to neutral.

• Connect the black wire to the hot lead.

• Connect green wire to the ground.

LED EXIT SIGNS

EMERGENCY LIGHT COMBO / BATTERY BACKUP

NYC APPROVED

67-123: 2 LED Heads

67-124: 3 LED Heads
