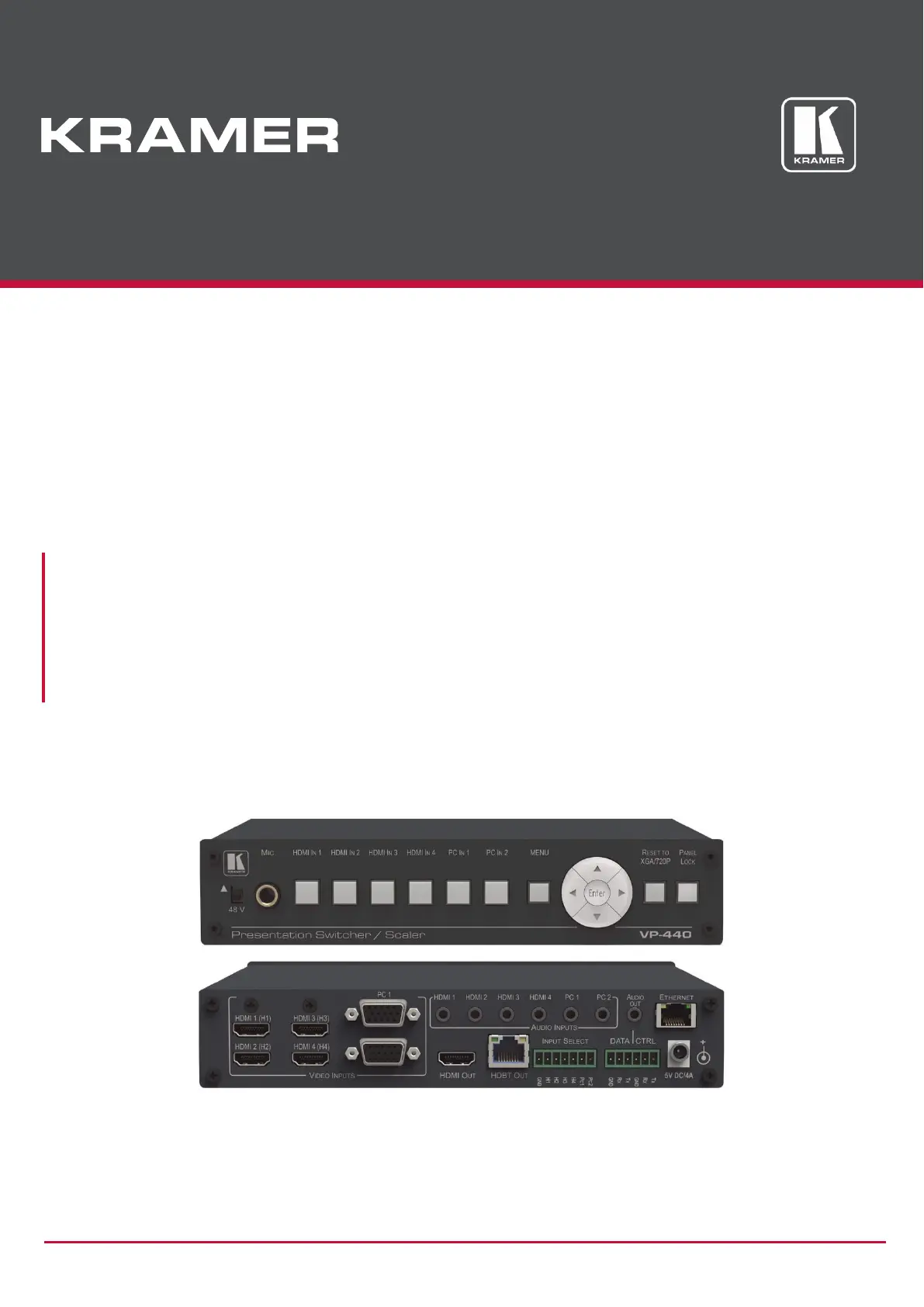

P/N: 2900-300476 Rev 11 www.kramerAV.com

USER MANUAL

MODEL:

VP-440

Presentation Switcher/Scaler

Kramer Electronics Ltd.

VP-440 – Contents
i

Contents
Introduction  1
Getting Started  1
Overview  2
Defining the VP-440 Presentation Switcher/Scaler  4
Mounting VP-440  6
Connecting the VP-440  7
Microphone Pinout  8
Wiring the TP LINE OUT RJ-45 Connector  9
Connecting the VP-440 via the INPUT SELECT Terminal Block Connector  10
Connecting to the VP-440 via RS-232  11
Operating the VP-440  12
Using the Front Panel buttons  12
Using the OSD Menu  14
Operating via Ethernet  17
Using the Embedded Web Pages  20
Loading and Saving Configurations  22
Entering Standby Mode  22
Configuring Video Input Settings  23
Selecting the Input to be Switched to the Outputs  24
Freezing or Clearing the Video Output  24
Adjusting Microphone and Output Volume  24
Configuring Network Settings  25
Upgrading the Firmware  26
Configuring Video Output Settings  27
Configuring HDCP per Input/Output  28
Managing EDID  29
Adjusting Audio Input Settings  30
Adjusting Microphone Settings  31
Configuring Automatic Switching Settings  32
Defining Panel Lock Button  33
Defining Freeze Button Behavior  33
Controlling VP-440 via the RS-232 Terminal Block Connectors  34
Controlling an External Device via the RS-232 Terminal Block Connectors  35
Securing the Web Pages with a Password  36
Viewing the About Page  38
Technical Specifications  39
Default Communication Parameters  40
Input Resolutions  41
Output Resolutions  41
Protocol 3000  42
Understanding Protocol 3000  43
Kramer Protocol 3000 Syntax  44
Protocol 3000 Commands  44
