CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

[email protected]

www.kleintools.com

139898 Rev. 11/14 C

139898 Rev. 11/14 C

ENGLISH

•

TRMS

•

AUTO / MANUAL

RANGE

•

AUTO HOLD

•

MAX / MIN

•

BAR GRAPH

•

BACKLIGHT

•

LEAD HOLDER

•

3-5/6 DIGIT

6000 COUNT LCD

ENGLISH

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

RangeResolutionAccuracy

600mV to 600V

0.1mV to 0.1V

± (0.5% + 4 digits)

1000V

1V

± (0.8% + 10 digits)

Overload Protection:

1000V

Input Impedance (Nominal)

: 10MΩ, <100pF

Input Impedance (Low Z)

: 3kΩ, <200pF, up to 600V RMS

AC Voltage Measurement

RangeResolution

Accuracy

40Hz to 400Hz

Accuracy

400Hz to 5kHz

600mV

0.1mV

± (0.75% + 5 digits)

± (2.0% +3 digits)

6V to 600V

1mV to 0.1V

± (2.0% +3 digits)

1000V

1V

± (0.75% + 8 digits)

± (2.0% +3 digits)*

continued on next page.

Overload Protection:

1000V RMS

Input Impedance (Nominal):

10MΩ, <100pF

Input Impedance (Low Z)

: 3kΩ, <200pF, up to 600V RMS

Frequency Response:

40 to 5kHz

Response:

True RMS

*Accuracy for 400Hz to 1kHz range only.

DC Current Measurement

RangeResolutionAccuracy

600µA to 400mA

0.1µA to 0.1mA

± (1.0% + 5 digits)

6A to 10A

1mA to 10mA

± (1.5% + 5 digits)

Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse

AC Current Measurement

RangeResolution

Accuracy

40Hz to 2kHz

600µA to 400mA

0.1µA to 0.1mA

± (1.2% + 5 digits)

6A to 10A

1mA to 10mA

± (1.8% + 5 digits)

Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse

Frequency:

40 to 2kHz

Response:

True RMS

Resistance Measurement

RangeResolutionAccuracy

600

Ω

to 6M

Ω

0.1

Ω

to 0.001M

Ω

± (1.0% + 5 digits)

60M

Ω

0.01M

Ω

± (1.5% + 10 digits)

Overload Protection:

600V RMS

Capacitance Measurement

RangeResolutionAccuracy

60nF

0.01nF

± (3.5% + 6 digits)

600nF to 6000µF

0.1nF to 1µF

Overload Protection:

600V RMS

Frequency Measurement

RangeResolutionAccuracy

99.99Hz to 399.9kHz

0.01Hz to 0.1kHz

± (0.1% + 3 digits)

Overload Protection:

600V RMS

Sensitivity:

> 2.5V RMS

Duty Cycle Measurement

RangeResolutionAccuracy

1.0 to 99.0%

0.1%

± (0.2% per kHz + 0.1% + 5 digits)

Overload Protection:

600V RMS

Sensitivity:

> 2.5V RMS

Frequency Range:

<10kHz

Diode Test

Overload ProtectionRangeTest CurrentOpen Circuit Voltage

600V RMS

6.0V

Appx. 0.25mA

<

1.8V DC (typ.)

Continuity Test

Overload ProtectionOpen Circuit VoltageThreshold (Appx.)

600V RMS

<

0.44V

<40

Ω

Temperature Measurement

RangeResolutionAccuracy

-50 to 600°C

0.1°C

± (1.0% + 3.0°C)

600 to 1000°C

1°C

± (1.0% + 3.0°C)

-58 to 600°F

0.1°F

± (1.0% + 5.4°F)

600 to 1832°F

1°F

± (1.0% + 5.4°F)

Overload Protection:

600V RMS

Thermocouple Accuracy:

Not specified

Specifications subject to change.

Do Not apply voltage to thermocouple.

•

-50° to 1000°C (-58° to 1832°F)

8. Temperature:

Features:

Testing Fuse:

•

When selecting uA or mA/A functions the meter will indicate

“

LEAd

” if the test leads are not properly connected to the meter.

•

Note: This message remaining on the screen after properly

connecting the test leads is an indication that the fuse is open.

7. Frequency (Hz) / Duty Cycle: <500kHz

Features:

HOLD

6. Low Impedance (Low Z): < 600V

DO NOT use (LOW Z) mode at voltages greater than 600V.

•

Press SELECT to choose AC or DC Voltage.

•

Use Low Impedance (LOW Z) mode to reduce ghost voltages

•

See AC/DC Voltage instruction

Capacitance Features:

HOLD

Safely discharge capacitor before

measurement.

•

Reading may take up to 60 seconds

for large capacitors.

AUTO HOLD

MAX/MINREL

HOLD

SYMBOLS USED ON LCD

AC Measurement

DC Measurement

-

Negative DC Value

AT

Auto Range Active

O

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

M

AX

Maximum Reading

%

Duty Cycle ModeFrequency Mode

V

Voltage Measurement

A

Current in Amps

Ω

Resistance in OhmsDiode Test

F

Capacitance in FaradsContinuity Test

Relative / Zero Mode

n

Nano 10

-9

µ

Micro 10

-6

m

Milli 10

-3

k

Kilo 10

3

M

Mega 10

6

°F

Degrees Fahrenheit

°C

Degrees Celsius

A-HOLD

Auto-Hold Active

LOW

Z

Low Impedance

WARRANTY

www.kleintools.com/warranty

CLEANING

Clean the instrument by using a damp cloth. Do not use abrasive cleaners

or solvents.

Take care to keep the sensor lens clean at all times. Clean the lens using a soft

cloth or cotton swab with water or rubbing alcohol only, and allow the lens to

dry before use.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Specifications

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL / RECYCLE

Do not place equipment and its accessories in the trash. Items

must be properly disposed of in accordance with local regulations.

1000V

10A

PRESS

PRESS

°F

°C

MM2300A

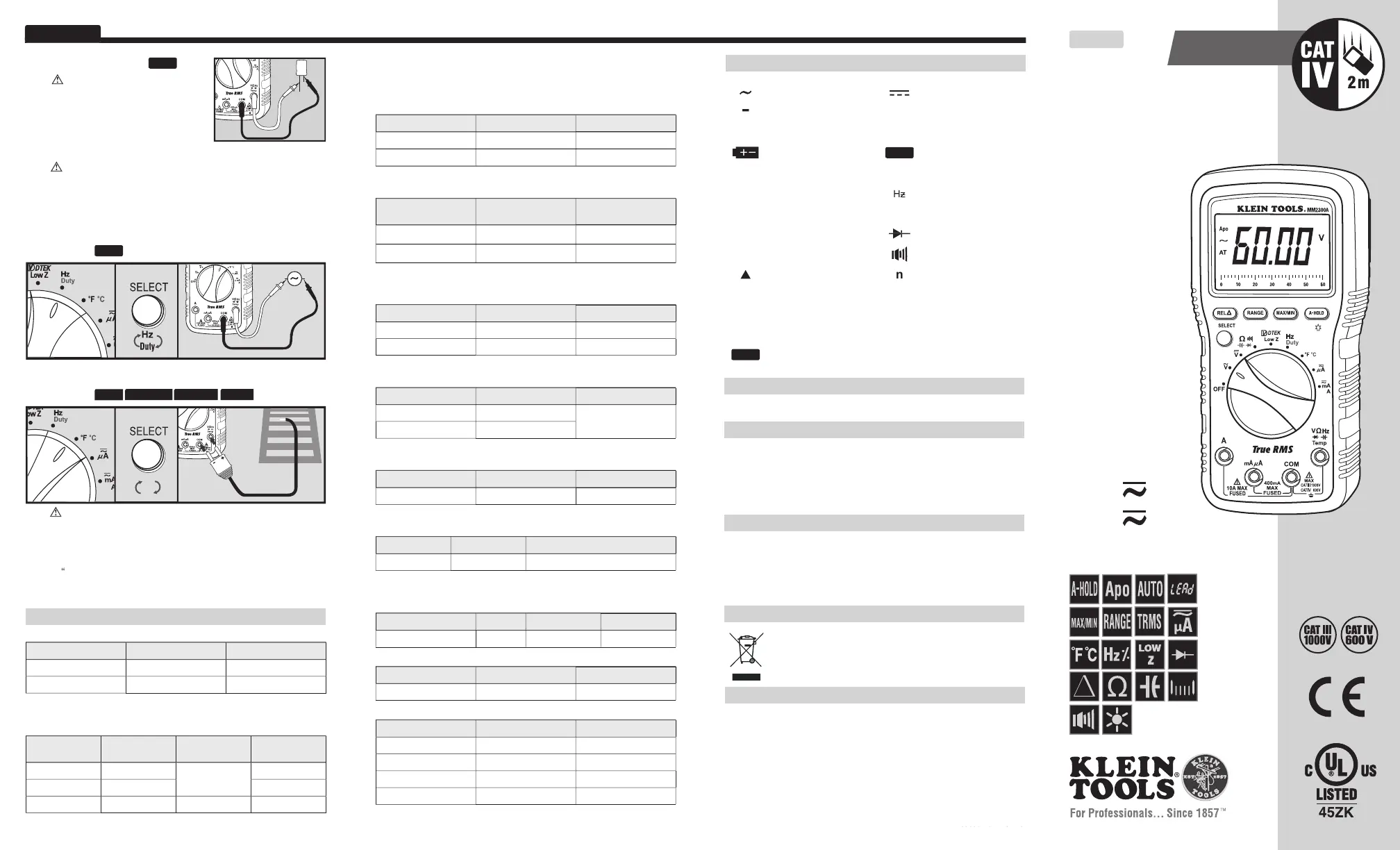

INSTRUCTION MANUAL

Electrician’s / HVAC

TRMS Multimeter
