CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
www.kleintools.com
139557T Rev. 11/13 B
ENGLISH
• AUTO / MANUAL
RANGE
• MAX HOLD
• DATA HOLD
• 3-1/2 DIGIT
1999 COUNT LCD
• BACKLIGHT
• WORKLIGHT
A
AC
CL100
AUTO
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
ENGLISH
Diode Test
Forward DC CurrentResolutionReverse DC Voltage
Appx. 1mA0.001VAppx. 1.5V
Continuity Test
Overload ProtectionResolutionOpen Circuit Voltage
250V
0.1mΩ
Appx. 0.45V
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
RangeResolutionAccuracy
200mV0.1mV
± (0.8% + 2 digits)
2V0.001V
20V0.01V
200V0.1V
600V1V± (1.0% + 2 digits)
Overload Protection:
• 200mV range: 250V DC / AC RMS
• 2V-600V ranges: 600V DC / AC RMS
Input Impedance: 10M
Ω
AC Voltage Measurement
RangeResolutionAccuracy
200mV0.1mV± (1.0% + 10 digits)
2V0.001V
± (1.0% + 5 digits)20V0.01V
200V0.1V
600V1V± (1.5% + 5 digits)
Overload Protection:
• 200mV range: 250V DC / AC RMS
• 2V-600V ranges: 600V DC / AC RMS
Input Impedance: 10MΩ
Response: Averaging
AC Current Measurement
RangeResolutionAccuracy
2A0.001A± (3.5% + 20 digits)
≤
0.5A
2A0.001A± (3.0% + 10 digits)
>
0.5A
20A0.01A± (3.0% + 10 digits)
200A0.1A± (2.5% + 10 digits)
600A1A± (1.5% + 5 digits)
Frequency Range: 50 to 60Hz
Response: Averaging
Resistance Measurement
RangeResolutionAccuracy
200Ω0.1Ω
± (1.2% + 2 digits)
2k
Ω0.001kΩ
20kΩ0.01kΩ
200kΩ0.1kΩ
2MΩ0.001MΩ
20MΩ0.01MΩ
± (2.0% + 5 digits)
Overload Protection: 250V
Open Circuit Voltage: 0.25V
Dwg Name:CL100-139557TART Dwg No:139557T
ECO No:15429 Pkg Dwg Ref:1650Rev: B
Color Reference:N/A

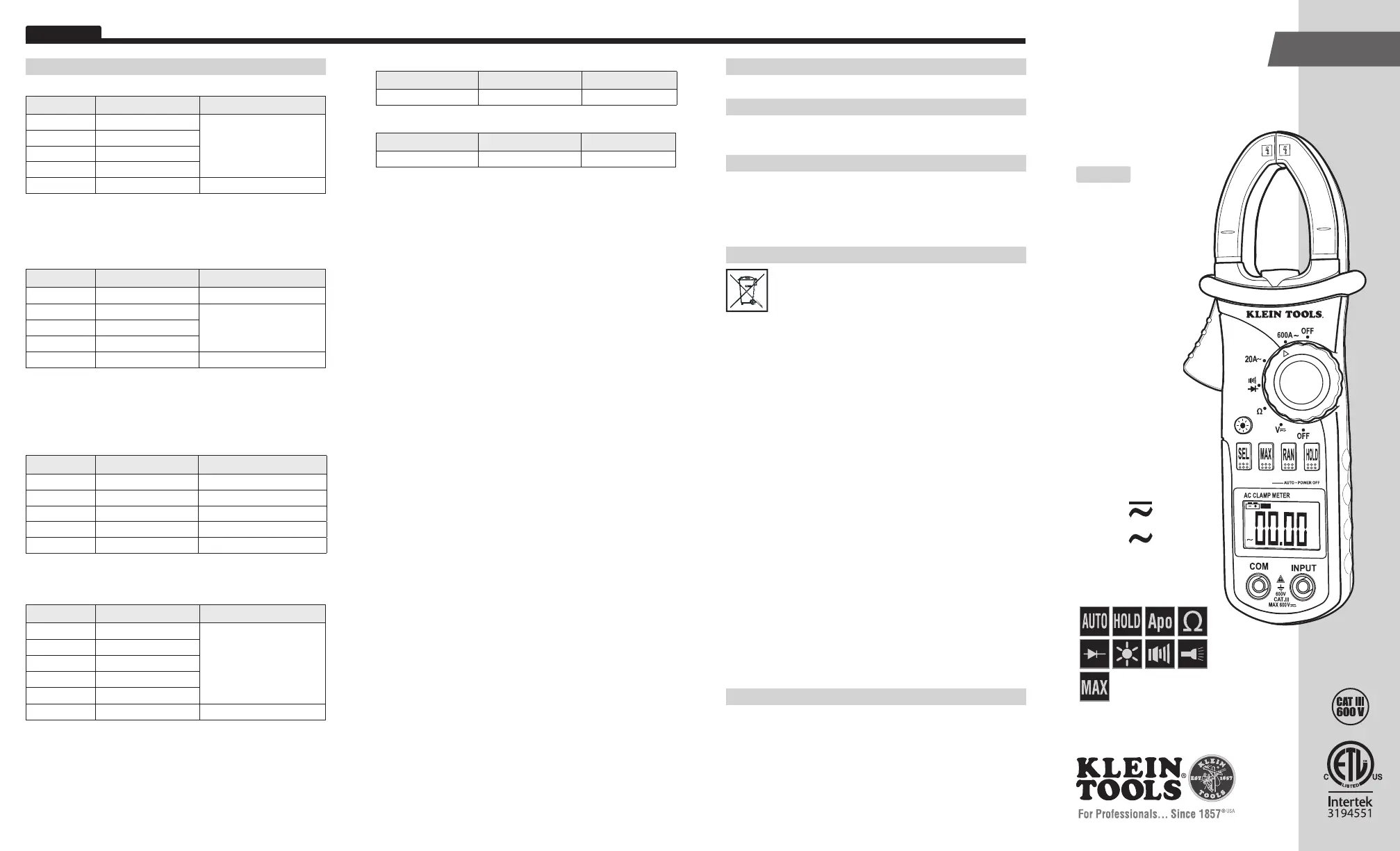

Instruction Manual
CL100
600A
600V
CL100 Instructions - MASTER.indd 1-412/16/2013 12:13:45 PM
