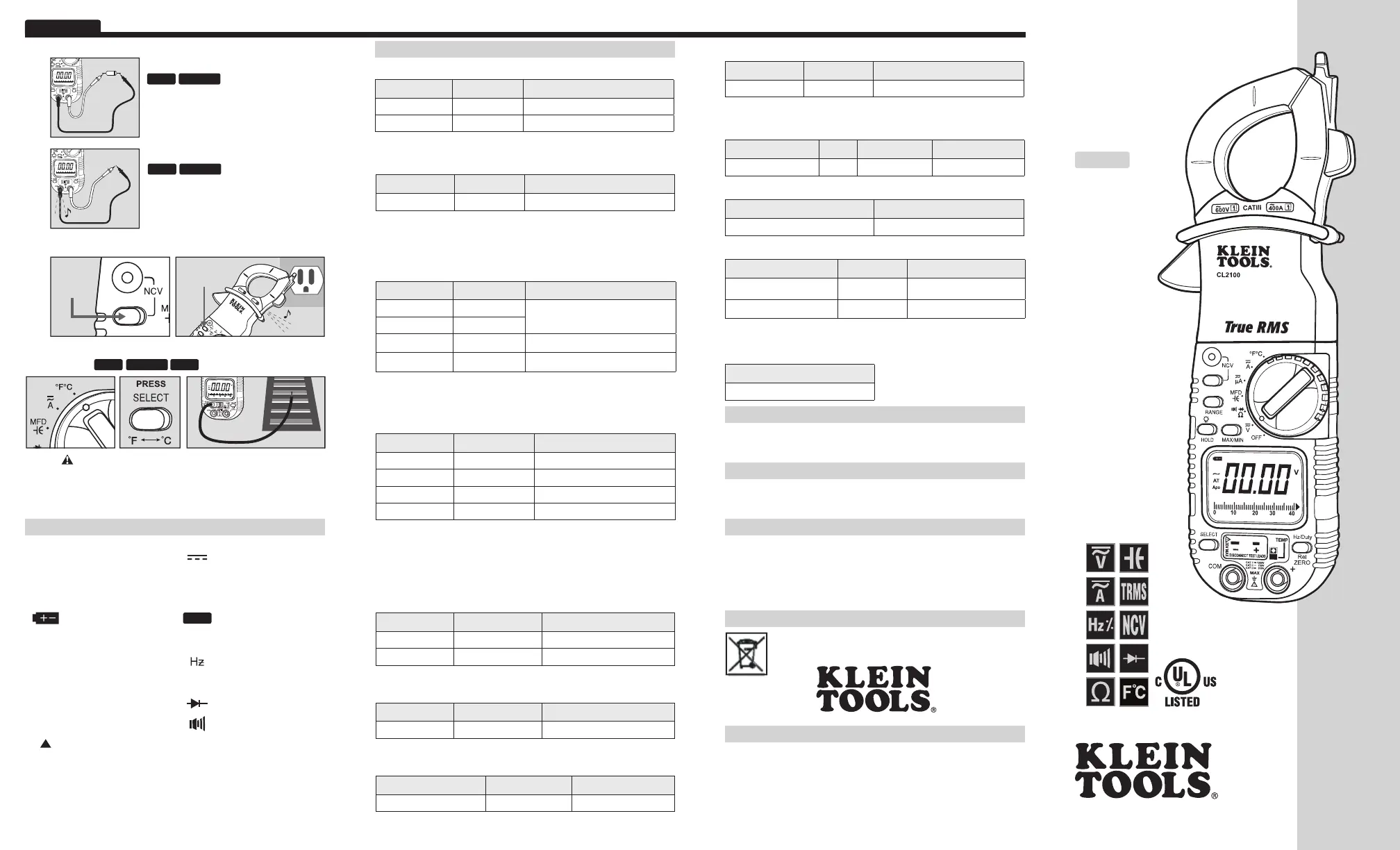

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

www.kleintools.com

139663

ENGLISH

www.kleintools.com

Instruction

Manual

For Professionals...Since 1857

®

ENGLISH

CL2100

• TRUE RMS

• DATA HOLD

• BACKLIGHT

• WORKLIGHT

• BAR GRAPH

• MAX/ MIN

• 3-3/4 DIGIT

3999 COUNT LCD

• AUTO / MANUAL

RANGE

• NON CONTACT

VOLTAGE TESTER

• TEMPERATURE

SYMBOLS USED ON LCD

~

AC MeasurementDC Measurement

-

Negative DC Value

AT

Auto Range Active

O

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

M

AX

Maximum Reading

%

Duty Cycle ModeFrequency Mode

V

Voltage Measurement

A

Current in Amps

Ω

Resistance in OhmsDiode Test

F

Capacitance in FaradsContinuity Test

Relative / Zero Mode

n

Nano 10

-9

m

Milli 10

-3

µ

Micro 10

-6

M

Mega 10

6

k

Kilo 10

3

°F

Degrees Fahrenheit

°C

Degrees Celsius

PRESS

and

HOLD

600V

400V

CATIII

CL1000

PRESIONAR

y RETENER

WARRANTY

See www.kleintools.com, contact Klein Tools at 1-877-775-5346, or visit a

distributor for warranty information.

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Specifications

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL / RECYCLE

Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

8. Non Contact Voltage (NCV): > 25V AC

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

RangeResolutionAccuracy

400mV

˜

400V0.1mV

˜

0.1V± (0.5% + 4 digits)

1000V1V± (0.8% + 10 digits)

Overload Protection: 1000V

AC Voltage Measurement

RangeResolutionAccuracy

400mV

˜

750V0.1mV

˜

1V± (2.0% + 5 digits)

Overload Protection: 750V RMS

Frequency Response: 40 to 400 Hz

Minimum Voltage for Frequency Measurement: 200mV

Response: True RMS

DC Current Measurement

RangeResolutionAccuracy

400µA0.1µA

± (1.2% + 3 digits)

2000µA1µA

40A0.01A± (2.5% + 15 digits)

400A0.1A± (1.5% + 8 digits

Overload Protection:

• Voltage: 600V RMS

• Current: 2000µA

• AC Current Measurement

RangeResolutionAccuracy

400µA0.1µA± (2.0% + 5 digits)

2000µA1µA± (1.5% + 5 digits)

40A0.01A± (2.9% + 15 digits)

400A0.1A± (1.9% + 8 digits)

Overload Protection:

• Voltage: 600V RMS

• Current: 2000µA

Frequency: 45 to 400Hz

Minimum Current for Frequency Measurement: 400µA or 20A

Response: True RMS

Resistance Measurement

RangeResolutionAccuracy

400

Ω

˜

4MΩ0.1Ω

˜

0.001MΩ

± (1.0% + 4 digits)

40M

Ω0.01MΩ

± (2.0% + 4 digits)

Overload Protection: 600V RMS

Capacitance Measurement

RangeResolutionAccuracy

40nF

˜

4000µF0.01nF

˜

1µF± (3.5% + 6 digits)

Overload Protection: 600V RMS

Frequency Measurement

RangeResolutionAccuracy

99.99Hz

˜

499.9kHz0.01Hz

˜

0.1kHz± (0.1% + 4 digits)

Overload Protection: 600V RMS Sensitivity: 1.8V RMS



Duty Cycle Measurement

RangeResolutionAccuracy

0.1

˜

99.9%0.1%± (0.2% per kHz + 0.1% + 5 digits)

Overload Protection: 600V RMS

Diode Test

Overload ProtectionRangeTest CurrentOpen Circuit Voltage

600V RMS

2.0VAppx. 0.25mA

<

1.6V DC

Continuity Test

Overload ProtectionOpen Circuit Voltage

600V RMS

<

0.44V

Temperature Measurement

RangeResolutionAccuracy

-22°~14°F (-30°~-10°C)0.1°F (0.1°C)±5.4°F (±3.0°C)

15°~752°F (-9°~400°C)0.1°F (0.1°C)±(1.0% + [3.6°F or 2.0°C])

Overload Protection: 30V RMS

Non Contact Voltage Detector

On Voltage

Appx. 25V AC

9. Temperature

Features:

HOLDMAX/MIN

REL

• Do not apply voltage to thermocouple.

• Fahrenheit range: -22° to 752°F

• Celsius range: -30° to 400°C

V

AT

010204030

Apo

V

AT

010204030

Apo

Display shows:

• Forward voltage drop if forward biased.

• “O.L.” if reverse biased.

Diode Features:

HOLDMAX/MIN

• Display shows resistance.

• Buzzer sounds if less than 30Ω.

Continuity Features:

HOLDMAX/MIN
