Assembly instructions

1. GERNERAL INFORMATION

1. GERNERAL INFORMATION1. GERNERAL INFORMATION

Dear customer,

Thank you for choosing our product. In the following, we will show you

what to consider during commissioning and use.

IShould you encounter any unexpected problems, do not hesitate to

www.joy it.net-

Pascalstr. 8 47506 Neukirchen Vluyn-

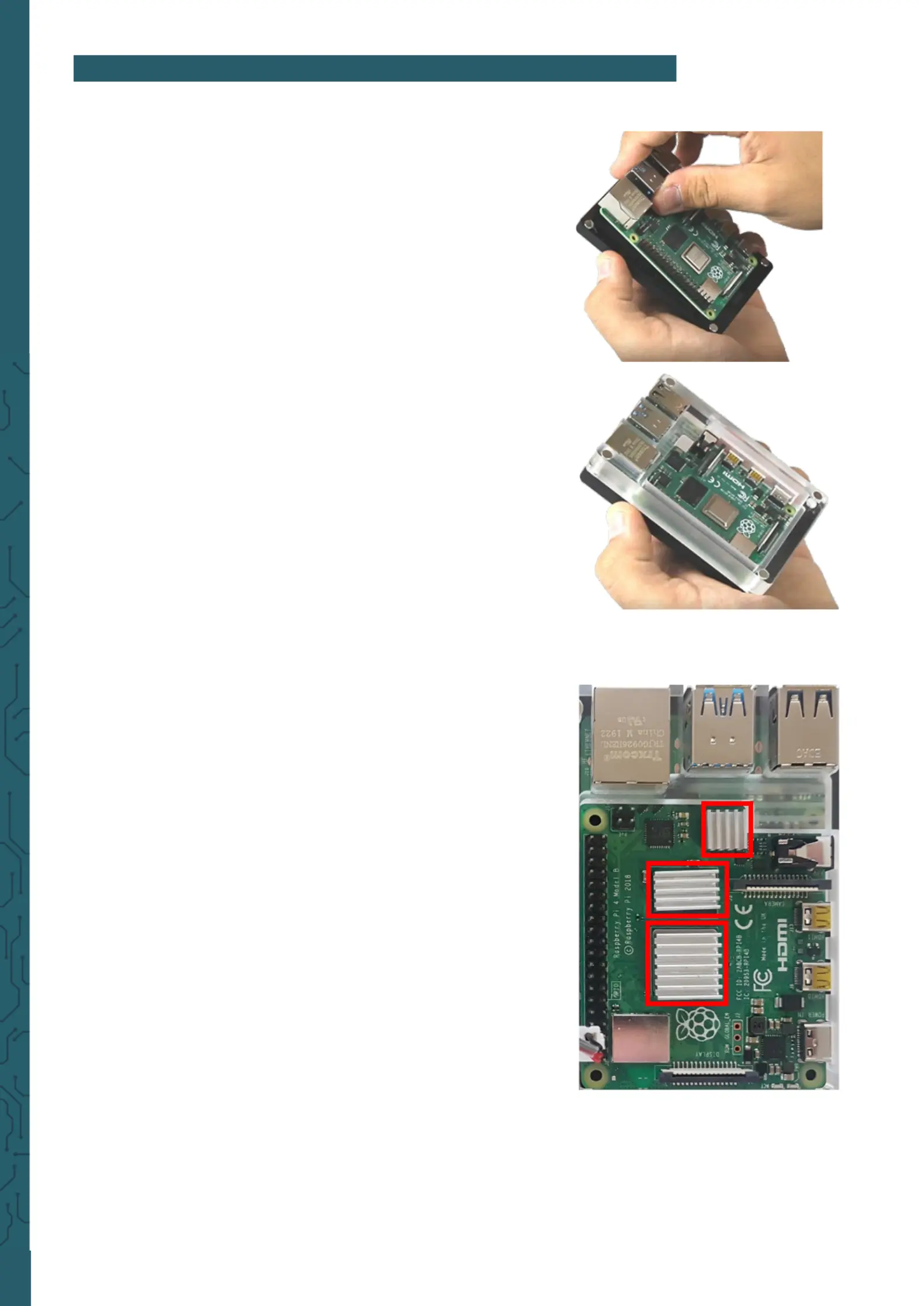

1. Installation of the Raspberry Pi:

The Raspberry Pi 4 must be inserted first in the bottom layer

of the case:

Then the middle (slightly transparent) piece of the case

needs to be attached. The magnets will keep it in place.

2. ASSEMBLY OF THE CASE

2. ASSEMBLY OF THE CASE2. ASSEMBLY OF THE CASE

Now stick the enclosed heatsinks onto the Raspberry Pi.

The large heat sink belongs on the CPU, the middle sized

heatsink on the RAM and the small heat sink belongs on the

USB3.0 controller.

www.joy it.net-

Pascalstr. 8 47506 Neukirchen Vluyn-

At this point, the case can be completely closed.

All you have to do is place the cover of the case on

the middle piece of the case.

Then you are finished with the assembly of your RB-

CaseP4+03B.

Further, you need to connect the dual fans.

For this, use the two pin plug. This must be plugged to 5V and Ground.-

The plug needs to be connected to the Pins 4 and 6.
