FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816

0000001027 (Rev. C - 08/16)

Elkay - www.elkay.com

Halsey Taylor - www.halseytaylor.com

52 1/8"

1324mm

4 1/2"

114mm

37 1/2"

952mm

5/16" SCREWS OR BOLTS

(20 REQ'D - NOT FURNISHED)

FRAME

5/16" HEX NUT

(4 REQ'D - PROVIDED)

P/N 111577343890

INSTALL (2) SCREWS

(P/N 111008343890) IN FRAME

BEFORE INSTALLING IN OPENING

BOLT FRAMES TOGETHER

WITH 5/16" X 3/4" (19m) BOLTS

(4 REQ'D-PROVIDED)

P/N 111577243890

HOOK RODS (2)

P/N 101567443730

5 1/8"

130mm

BACK OF WALL

TO BE 12"

(305mm) MIN

DEPTH

8"

203mm

TO FLOOR LINE

1"

25mm

ELECTRICAL INLET

LOCATION ON CHILLER

FLOOR LINE

WOOD OR STEEL FRAME

SHOWN (NOT PROVIDED)

OPTIONAL BRACKET

FOR ACCESS PANEL

3"

76mm

10 1/4"

260mm

OPTIONAL FOR

ACCESS PANEL

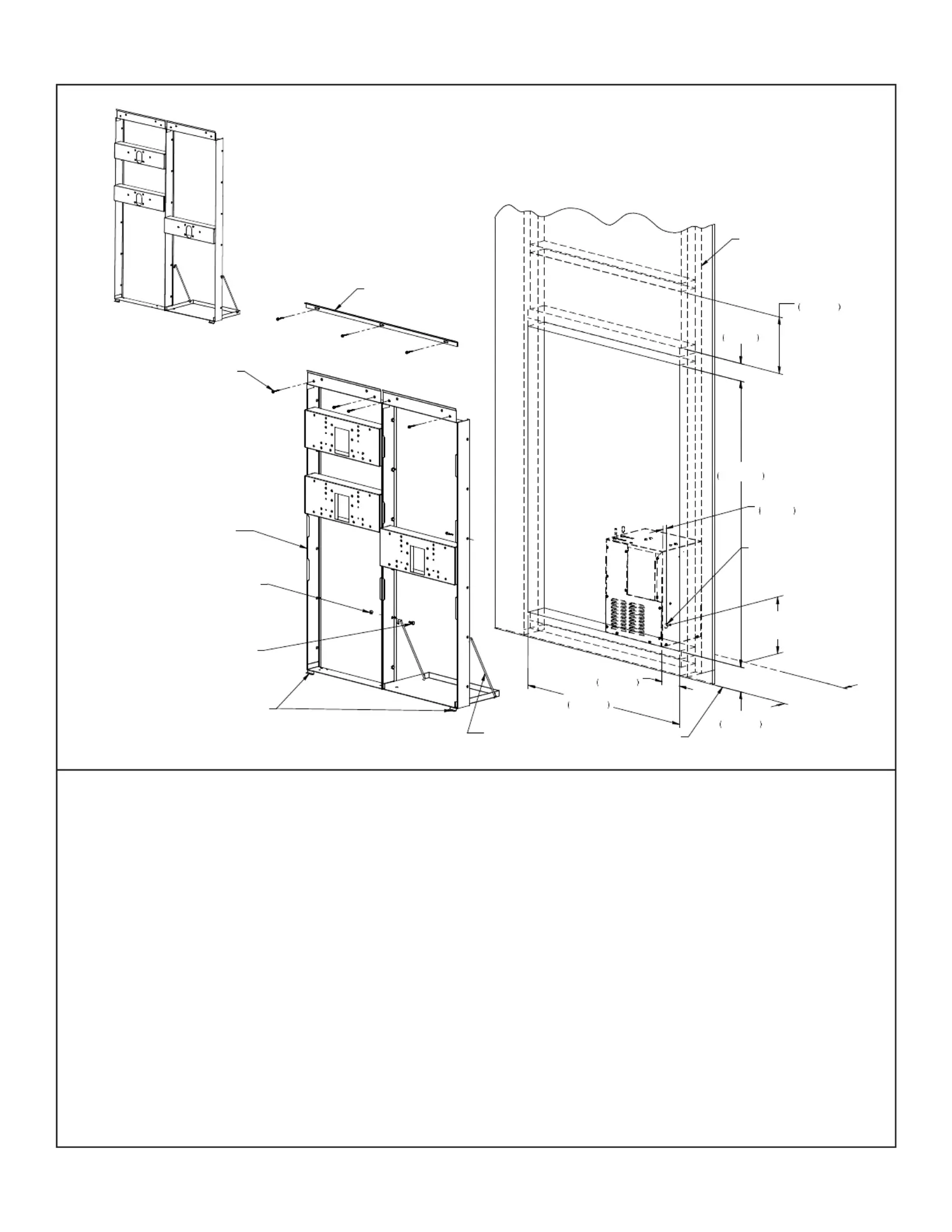

MFWS210 / MFWS230 MOUNTING FRAME INSTRUCTIONS

MFWS230

FRAME

1. 37 1/2” (953mm) W x 52 1/8” (1324mm) H and 4 1/2” (114mm) above Cut a square rectangular wall opening

the oor line. These dimensions are required to obtain proper rim and bubbler heights for compliance with ANSI

standard A117.1.

2. Reinforce the wall opening on all sides so that it will adequately support the water fountain. This reinforcement

must support up to 150 lbs static load and provide a means for securing the frame assembly in place.

NOTE: Building construction must allow for adequate air ow on both sides and top of remote chiller unit.

Minimum of 4” (102mm) is required.

3. Install plumbing and electrical rough-ins. A junction box for a (3) wire, 10 amp branch circuit is provided on

the inside of the chiller. (Standard 120 Volts, 60 Hz and single phase)

4. Remove frame assembly and related hardware from packaging. Attach the two frames together thru the

upright supports with (4) 5/16” x 3/4” (19mm) long bolts and nuts (provided). Tighten securely.

5. Install the frame assembly squarely in wall opening with frame upright support edges ush with the nished

wall face. Secure the frame to the wall thru holes with (12) 5/16” bolts or screws (not provided). Tighten securely.

NOTE: Be sure that frame is squared in location. Do not use less than required screw quantity and size.

6. Attach the chiller shelf support rods to the right side frame uprights at the second set of holes counting from

the bottom and to the shelf at the (2) side holes. Line up the other shelf holes with the frame bottom holes and

fasten the assembly to the wall using appropriately sized screws or bolts and nuts (not provided).
