ASSEMBLY INSTRUCTIONS

1.Carefully unpack and identify all parts referring to illustration for parts identification.

2.Turn the power to the installation point OFF.

3.Unravel the supply power and ground wires and pass them through the center holes of stem (E),

stem (F), loop (G)and canopy (H).

4.nThread the stem (E) onto the coupling o the fixture body (A). Repeat the process for remaining

stem (E)(F) as shown in the diagram, until snug. and stem

5.Install the loop (G) onto the top of stem (F).

6.Use () to connect loop () to the loop on the canopy () and twist the lockingcarabinerIGH

mechanism to secure.

7.install on and secure Carefully the glass panel (B)the fixture body (A)with screw(D).

8.installon and secureCarefully the glass panel (B) the socket assembly of the fixture body (A) with

socket ring ().C

9.Refer to the additional installation instructions included with the product for wiring and installation.

10.Install proper bulbs (not included) into each socket referring to the markings and/or labels on the

fixture for maximum wattage.

11.Restore power to the installation point and retain this sheet for future reference.

ITEM NO: 1-1590--509

1-1590-

9-38

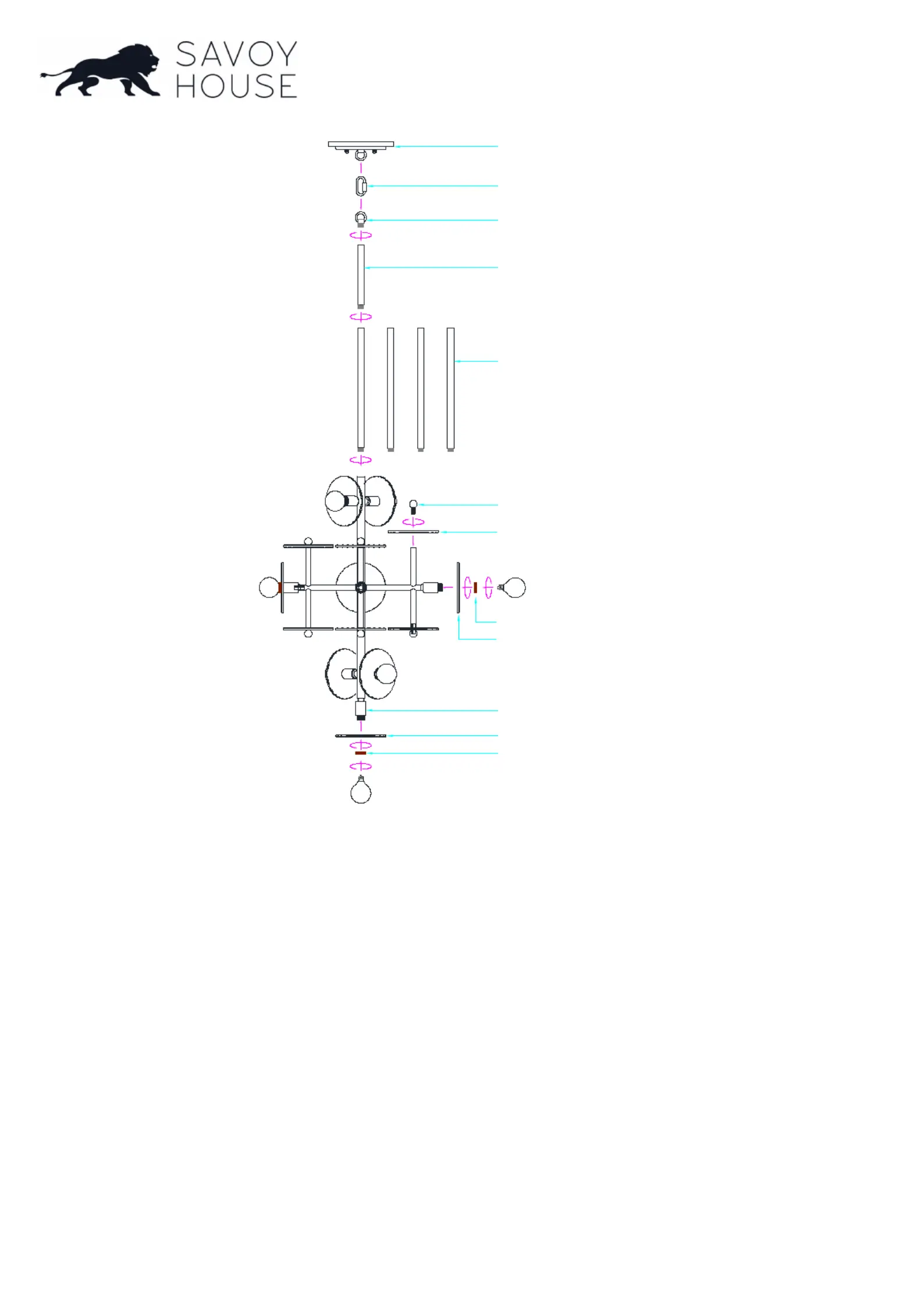

CANOPY(H)

CARABINER(I)

LOOP(G)

STEM(F)

STEM(E)

SOCKET RING(C)

GLASS PANEL(B)

FIXTURE BODY(A)

SCREW(D)

SOCKET RING(C)

GLASS PANEL(B)

GLASS PANEL(B)
