Page 1 of 2

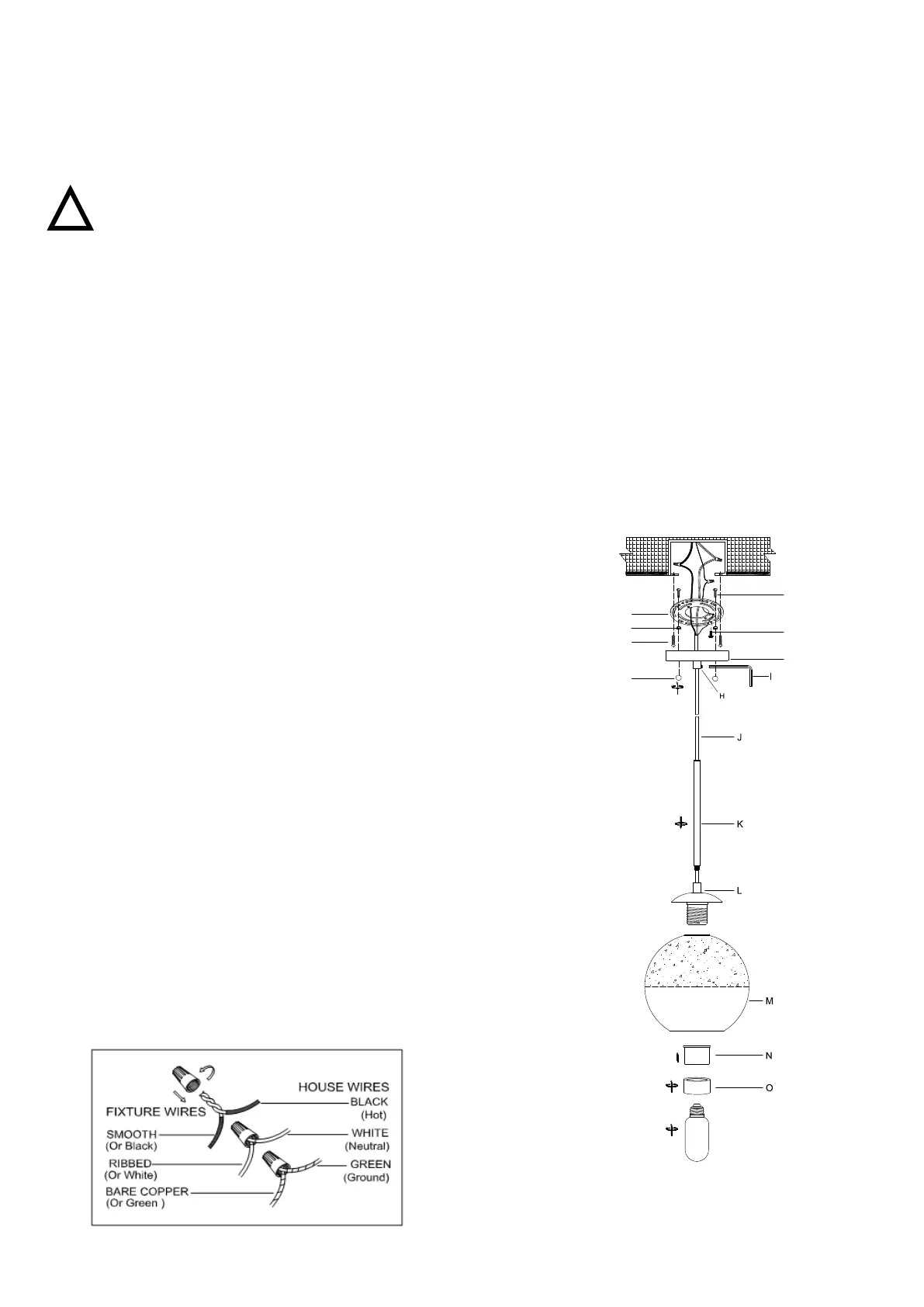

INSTALLATION INSTRUCTIONS
Model# 2757-01
1 LIGHT PENDANT
! Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if you are
in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Turn off the fixture at the wall switch before replacing bulbs.
- Make sure bulbs are given sufficient time to cool before removal.
- Do not subject glass parts to any shock while in operation or shattering may result.
Tools Required (Not Included): Flathead screwdriver, Phillips screwdriver, Wire cutters, Electrical tape, Safety
goggles, Ladder.
Helpful Tools (not included): Wire strippers.
ASSEMBLY INSTRUCTIONS
1.Carefully unpack and lay all parts on a clean, level
surface. Do not discard any contents until after
assembly is complete to avoid accidentally
discarding small parts or hardware.
2.Attach the threaded end of the short stem (k) into
socket assembly (L), turning the stem in a
clockwise direction till tight. Unscrew the
pre-assembled lock ball nut (G) from the mounting
bracket (B). Attach the mounting bracket (B) to the
junction box (not included) with junction box screws
(D).
3.Loosen the Allen Strain Relief Screw (H) from the
threaded collar using the Allen Wrench (I) by
turning the wrench counter-clockwise. Adjust the
Power Cord (J) upwards or downwards through the
canopy (F) until the desired suspension length is
determined. Secure the power cord (J) in place by
tightening the set screw in a clockwise motion (H)
onto the collar. Do not over tighten the screw,
making sure the power cord (J) will not slip
downwards with the pendant body.
A
E
D
C
G
B
F
