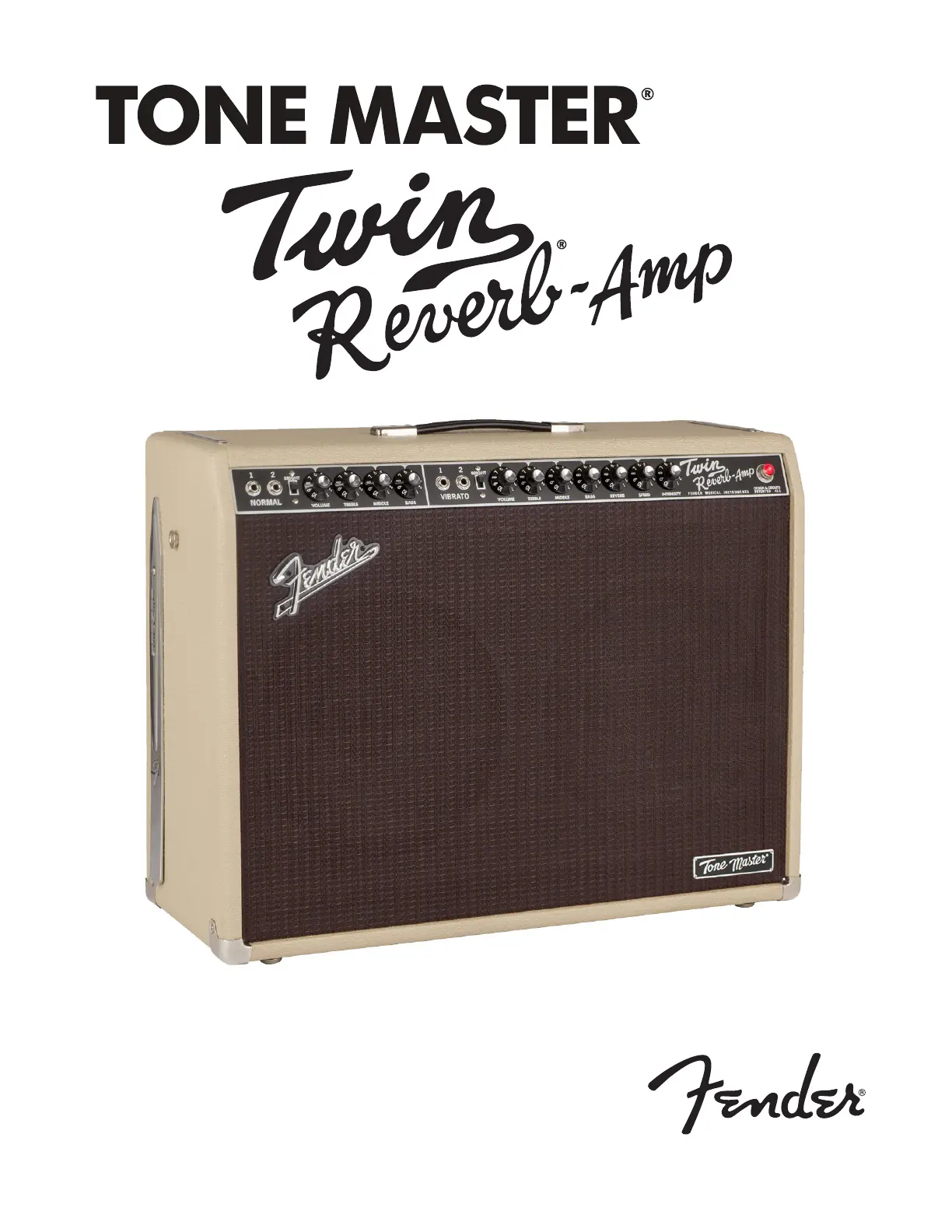

Pagina 1/12

OWNER’S MANUAL

MANUAL DE INSTRUCCIONES

MODE D’EMPLOI

MANUAL DO PROPRIETÁRIO

BLONDE

A. NORMAL CHANNEL INPUTS: Connect instrument here. Normal

input 1 produces full sensitivity; normal input 2 has adjusted

sensitivity (-6dB) for slightly darker tone and cleaner response

with high-gain instruments.

B. NORMAL CHANNEL BRIGHT SWITCH: High-frequency boost for

normal channel.

C. NORMAL CHANNEL VOLUME: Controls volume level of both

normal channel inputs.

D. NORMAL CHANNEL TREBLE

Controls treble response of both

normal channel inputs.

E. NORMAL CHANNEL MIDDLE: Controls midrange response of

both normal channel inputs.

F. NORMAL CHANNEL BASS: Controls bass response of both

normal channel inputs.

G. VIBRATO CHANNEL INPUTS: Connect instrument here to use

built in “vibrato” (tremolo) eect. Input 1 produces full sensitivity;

input 2 has adjusted sensitivity (-6dB) for slightly darker tone and

cleaner response with high-gain instruments.

H. VIBRATO CHANNEL BRIGHT SWITCH: High-frequency boost for

“vibrato” (tremolo) channel.

I. VIBRATO CHANNEL VOLUME: Controls volume level of both

vibrato channel inputs.

J. VIBRATO CHANNEL TREBLE: Controls treble response of both

vibrato channel inputs.

K. VIBRATO CHANNEL MIDDLE: Controls midrange response of

both vibrato channel inputs.

L. VIBRATO CHANNEL BASS: Controls bass response of both

vibrato channel inputs.

M. REVERB: Controls reverb eect level. No reverb is heard when

control is turned fully counterclockwise. Reverb can also be

turned on and o using included two-button footswitch.

N. SPEED: Controls “vibrato” (tremolo) eect rate.

O. INTENSITY: Controls “vibrato” (tremolo) eect depth. No eect

is heard when control is turned fully counterclockwise. Eect can

also be turned on and o using included two-button footswitch.

P. POWER JEWEL: Illuminates red when amplier is on; ashes

between red and amber during warmup. Illuminates amber in

MUTE mode (S).

In a bold Fender rst, the Tone Master Twin Reverb amplier uses

massive digital processing power to achieve a single remarkable

sonic feat: faithfully modeling the circuitry and 85-watt power

output of an original Twin tube amp. Using a high-performance

200-watt digital power amp to achieve the headroom and dynamic

range of a real vintage Twin tube amp, paired with the pronounced

punch and warmth of two Celestion® G12 NEO Creamback speakers

and a resonant pine cabinet, the result is tubeless Twin Reverb tone,

volume and dynamics virtually indistinguishable from the all-tube

original. And with all these features, the Tone Master Twin Reverb is

in fact about only the weight of an all-tube Twin.half

Front panel features give guitarists a playing experience identical

to the tube version, including Fender’s world-standard reverb and

tremolo eects. Additional rear-panel features deliver modern

convenience and exibility—including an output power selector for

full power and ve attenuated settings, balanced XLR line output

with impulse response (IR) cabinet simulations, mute switch for silent

stage or recording use, USB port for rmware upgrades, and more.

CONTROL PANEL

ENGLISH

TONE MASTER

TWIN REVERB

BLONDE

REAR PANEL

Q. IEC INLET: Connect included power cord to a grounded outlet

in accordance with input power voltage and frequency specied

beside inlet. Universal 100V-240V operation.

R. POWER: Turns amplier on and o.

S. MUTE: Mutes power amp. When in MUTE mode, XLR line output

remains active for studio or “quiet stage” use, and POWER JEWEL

(P) illumination changes from red to amber.

T. OUTPUT POWER

: Selector switch oers full power (85 watts) and

ve other attenuated wattage settings that tailor room/venue

overall loudness. Set amp front-panel channel volume to personal

preference for tube-emulated response, then set OUTPUT POWER

to preferred level.

U. CABINET SIM: When using XLR LINE OUTPUT (X), this BALANCED

switch oers three dierent tonal options—a at, uncolored amp

signal without speaker cabinet emulation (OFF); and two impulse

response (IR) proles emulating dierent speaker/microphone-

placement combinations:

IR PROFILE 1: Dynamic microphone close-mic’ed at edge of

speaker cone center cap for pronounced attack and denition. IR

created using a Shure® SM57 microphone.

IR PROFILE 2: Dynamic microphone close-mic’ed at edge

of speaker cone center cap for increased bass response and

smoother midrange. IR created using a Sennheiser® MD 421

microphone.

V. BALANCED LINE OUTPUT LEVEL: Adjusts output level of XLR

BALANCED LINE OUTPUT (X) for external devices and systems (i.e.,

PA and recording gear), whether mic or line level.

W. GROUND LIFT: When using the XLR LINE OUTPUT (X), BALANCED

engaging this button may eliminate hum or buzz resulting from

connection to improperly grounded equipment.

X. XLR BALANCED LINE OUTPUT: For balanced connection to

external devices and systems (i.e., PA and recording gear). XLR line

output remains active when amp is in MUTE mode (S).

Y. FOOTSWITCH: Connect included two-button footswitch for

reverb and tremolo on/o here.

Z. USB PORT (NOT SHOWN): For rmware updates, a USB port is

located on the underside of the chassis beneath the OUTPUT

POWER section. Visit fender.com/rmware/support for periodic

rmware updates that improve and enhance the Tone Master

experience.

All non-FMIC product names and trademarks appearing in this

manual are the property of their respective owners and are used

solely to identify the products whose sounds were studied during

IR development for this product. The use of these products and

trademarks does not imply any aliation, connection, sponsorship,

or approval between FMIC and with or by any third party.

SPECIFICATIONS

TYPE PR 5184

POWER REQUIREMENTS 450W (max)

POWER AMP OUTPUT

200W

into

Ω (simulates 85W tube amp performance)

INPUT IMPEDANCES Input 1 (both channels): 1M

Input 2 (both channels): 136k

XLR LINE OUT IMPEDANCE 600

SPEAKER 2 12” Celestion® G12 NEO Creamback, 8

Ω (PN 7713555000)

FOOTSWITCH Two-button Tone Master (included, PN 7716005000)

COVER Fitted cover (included, PN 0050250000)

DIMENSIONS AND WEIGHT Width: 26.16” (66.4 cm) Height: 20.24” (51.4 cm) Depth: 10.35” (26.3 cm) Weight: 33 lbs. (15 kg)

Product specifications subject to change without notice.
