Pagina 1/12

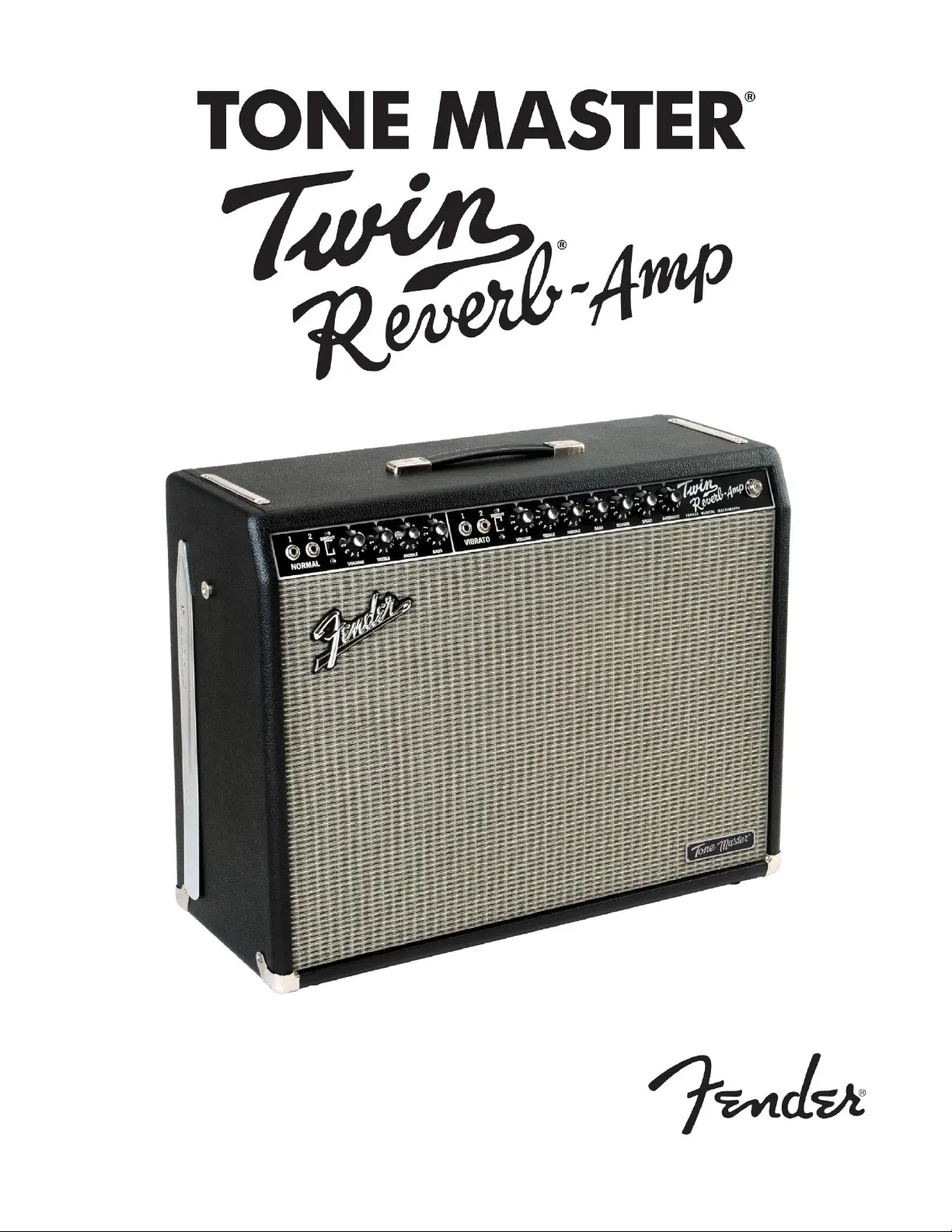

OWNER’S MANUAL
MANUAL DE INSTRUCCIONES
MODE D’EMPLOI
MANUAL DO PROPRIETÁRIO
A. NORMAL CHANNEL INPUTS: Connect instrument here. Normal
input 1 produces full sensitivity; normal input 2 has adjusted
sensitivity (-6dB) for slightly darker tone and cleaner response
with high-gain instruments.
B. NORMAL CHANNEL BRIGHT SWITCH: High-frequency boost for
normal channel.
C. NORMAL CHANNEL VOLUME: Controls volume level of both
normal channel inputs.
D. NORMAL CHANNEL TREBLE
:
Controls treble response of both
normal channel inputs.
E. NORMAL CHANNEL MIDDLE: Controls midrange response of
both normal channel inputs.
F. NORMAL CHANNEL BASS: Controls bass response of both
normal channel inputs.
G. VIBRATO CHANNEL INPUTS: Connect instrument here to use
built in “vibrato” (tremolo) e ect. Input 1 produces full sensitivity;
input 2 has adjusted sensitivity (-6dB) for slightly darker tone and
cleaner response with high-gain instruments.
H. VIBRATO CHANNEL BRIGHT SWITCH: High-frequency boost for
“vibrato” (tremolo) channel.
I. VIBRATO CHANNEL VOLUME: Controls volume level of both
vibrato channel inputs.
J. VIBRATO CHANNEL TREBLE: Controls treble response of both
vibrato channel inputs.
K. VIBRATO CHANNEL MIDDLE: Controls midrange response of
both vibrato channel inputs.
L. VIBRATO CHANNEL BASS: Controls bass response of both
vibrato channel inputs.
M. REVERB: Controls reverb e ect level. No reverb is heard when
control is turned fully counterclockwise. Reverb can also be
turned on and o using included two-button footswitch.
N. SPEED: Controls “vibrato” (tremolo) e ect rate.
O. INTENSITY: Controls “vibrato” (tremolo) e ect depth. No e ect
is heard when control is turned fully counterclockwise. E ect can
also be turned on and o using included two-button footswitch.
P. POWER JEWEL: Illuminates red when ampli er is on; ashes
between red and amber during warmup. Illuminates amber in
MUTE mode (S).
In a bold Fender rst, the Tone Master Twin Reverb ampli er uses
massive digital processing power to achieve a single remarkable
sonic feat: faithfully modeling the circuitry and 85-watt power output
of an original Twin tube amp. Using a high-performance 200-watt
digital power amp to achieve the headroom and dynamic range of a
real vintage Twin tube amp, paired with the pronounced sparkle and
clarity of two Jensen® N-12K neodymium speakers and a resonant
pine cabinet, the result is tubeless Twin Reverb tone, volume and
dynamics from the all-tube original. And virtually indistinguishable
with all these features, the Tone Master Twin Reverb is in fact about
only the weight of an all-tube Twin.half
Front panel features give guitarists a playing experience identical
to the tube version, including Fender’s world-standard reverb and
tremolo e ects. Additional rear-panel features deliver modern
convenience and exibility—including an output power selector for
full power and ve attenuated settings, balanced XLR line output
with impulse response (IR) cabinet simulations, mute switch for silent
stage or recording use, USB port for rmware upgrades, and more.
Register your Tone Master Twin Reverb online at start.fender.com.
TONE MASTER
®
TWIN REVERB
®
CONTROL PANEL
1
ENGLISH
REAR PANEL
Q. IEC INLET: Connect included power cord to a grounded outlet
in accordance with input power voltage and frequency speci ed
beside inlet. Universal 100V-240V operation.
R. POWER: Turns ampli er on and o .
S. MUTE: Mutes power amp. When in MUTE mode, XLR line output
remains active for studio or “quiet stage” use, and POWER JEWEL
(P) illumination changes from red to amber.
T. OUTPUT POWER
: Selector switch o ers full power (85 watts) and
ve other attenuated wattage settings that tailor room/venue
overall loudness. Set amp front-panel channel volume to personal
preference for tube-emulated response, then set OUTPUT POWER
to preferred level.
U. CABINET SIM: When using XLR LINE OUTPUT (X), this BALANCED
switch o ers three di erent tonal options—a at, uncolored amp
signal without speaker cabinet emulation (OFF); and two impulse
response (IR) pro les emulating di erent speaker/microphone-
placement combinations (1 and 2).
V. BALANCED LINE OUTPUT LEVEL: Adjusts output level of XLR
BALANCED LINE OUTPUT (X) for external devices and systems (i.e.,
PA and recording gear), whether mic or line level.
W. GROUND LIFT: When using the XLR LINE OUTPUT (X), BALANCED
engaging this button may eliminate hum or buzz resulting from
connection to improperly grounded equipment.
X. XLR BALANCED LINE OUTPUT: For balanced connection to
external devices and systems (i.e., PA and recording gear). XLR line
output remains active when amp is in MUTE mode (S).
Y. FOOTSWITCH: Connect included two-button footswitch for
reverb and tremolo on/o here.
Z. USB PORT (NOT SHOWN): For rmware updates, a USB port is
located on the underside of the chassis beneath the OUTPUT
POWER section. Visit fender.com/ rmware/support for periodic
rmware updates that improve and enhance the Tone Master
experience.
SPECIFICATIONS
TYPE PR 5184
POWER REQUIREMENTS 450W (max)
POWER AMP OUTPUT
200W
into
4
Ω (simulates 85W tube amp performance)
INPUT IMPEDANCES Input 1 (both channels): 1M
Ω
Input 2 (both channels): 136k
Ω
XLR LINE OUT IMPEDANCE 600
Ω
SPEAKER 2 12” Jensen® N-12K neodymium, 8
Ω (PN 7715526000)
FOOTSWITCH Two-button Tone Master (included, PN 7716005000)
COVER Fitted cover (included, PN 0050250000)
DIMENSIONS AND WEIGHT Width: 26.16” (66.4 cm) Height: 20.24” (51.4 cm) Depth: 10.35” (26.3 cm) Weight: 33 lbs. (15 kg)
Product specifications subject to change without notice.
2
ENGLISH
