RS- 232 to Fiber Optic Converter

1. Introduction

Thank you for purchasing this RS232 to Fiber Optic Converter. It is designed to

extend RS232 signals over optical fiber. It provides the most versatile connection

possible between any asynchronous RS232 equipments using fiber optic cable.

The optical fiber isolates the data signals from ground potential, ground loops and

provides EMI/RFI protection. There are 2 models, singlemode and multimode. --

The multimode converter is used to extend serial transmission distance up to -

2Km. The singlemodel converter extends up to 40Km. -

Features:

 Provides 1 RS232 Port over Fiber Optic

 Provides 1 RS232 DB9 Male Connector

 Fiber Optic: SC, Multi Mode, 850nm, Duplex

 SC, Single Mode, 1310nm, Duplex

 RS232 Baud Rate from 300bps to 921.6Kbps

 Protects Against Electrical Interference or Chemical Corrosion

 Extends RS232 Transmission up to 2Km, multimode (or 40Km, singlemode--

Distance

 15KV ESD Protection for Serial Port Signals

 Powered by Serial Connector or External DC Jack

 Provides both Wall Mounting and DIN RAIL Kits

 Compact Size

2. Layout

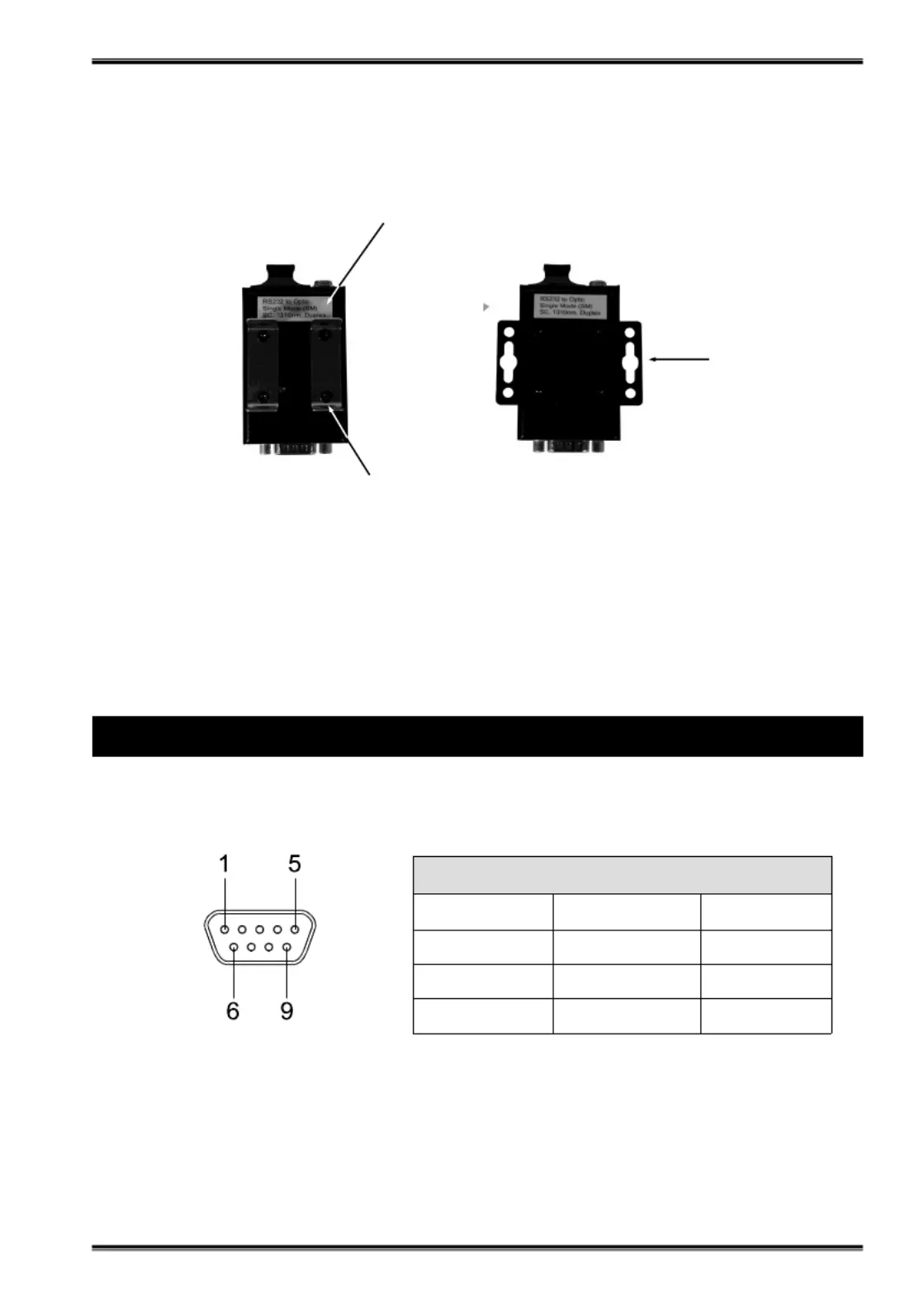

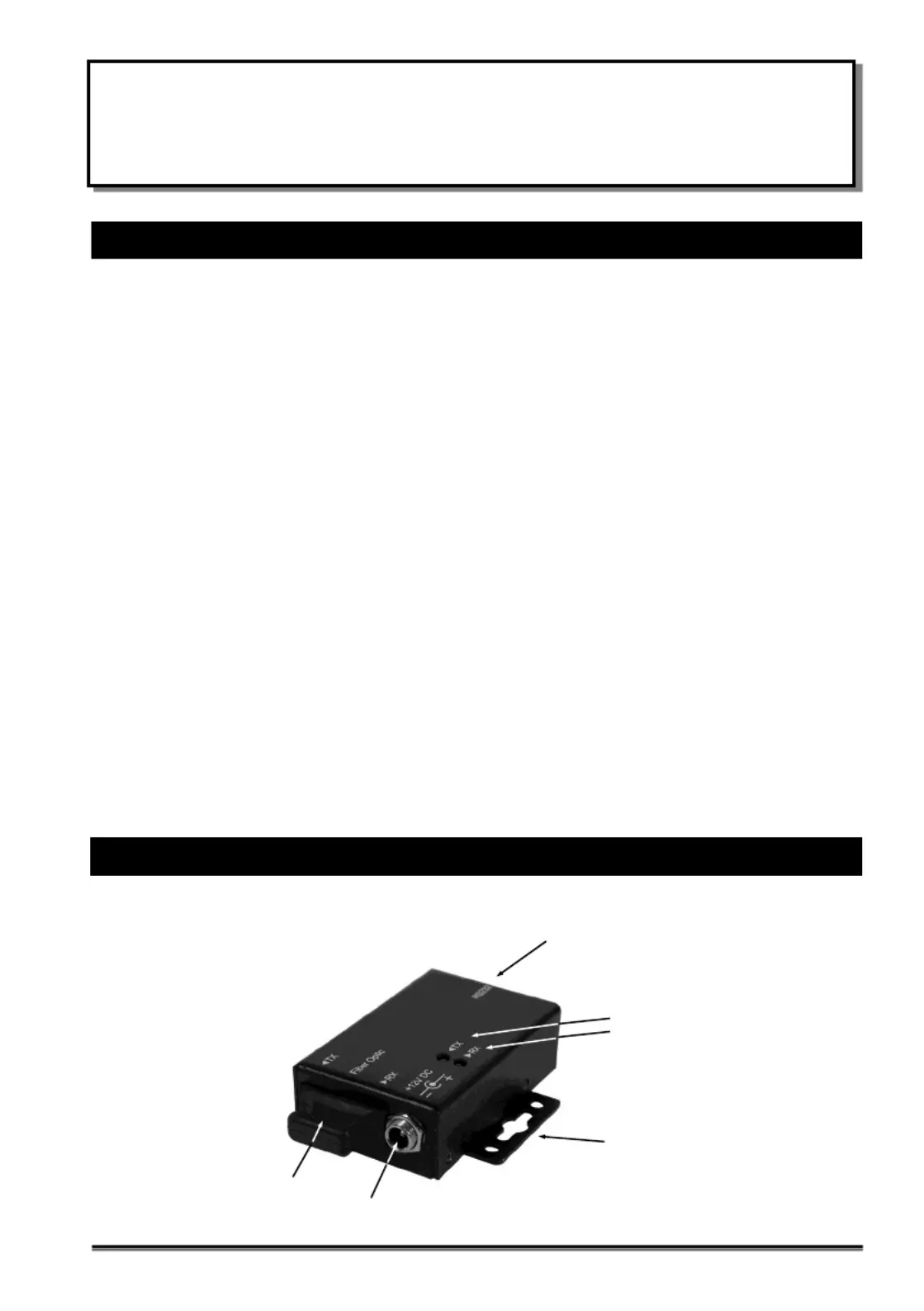

RS232 DB9 male connector

Fiber TX LED

Fiber RX LED

DIN RAI Mounting Kit

12V DC Jack

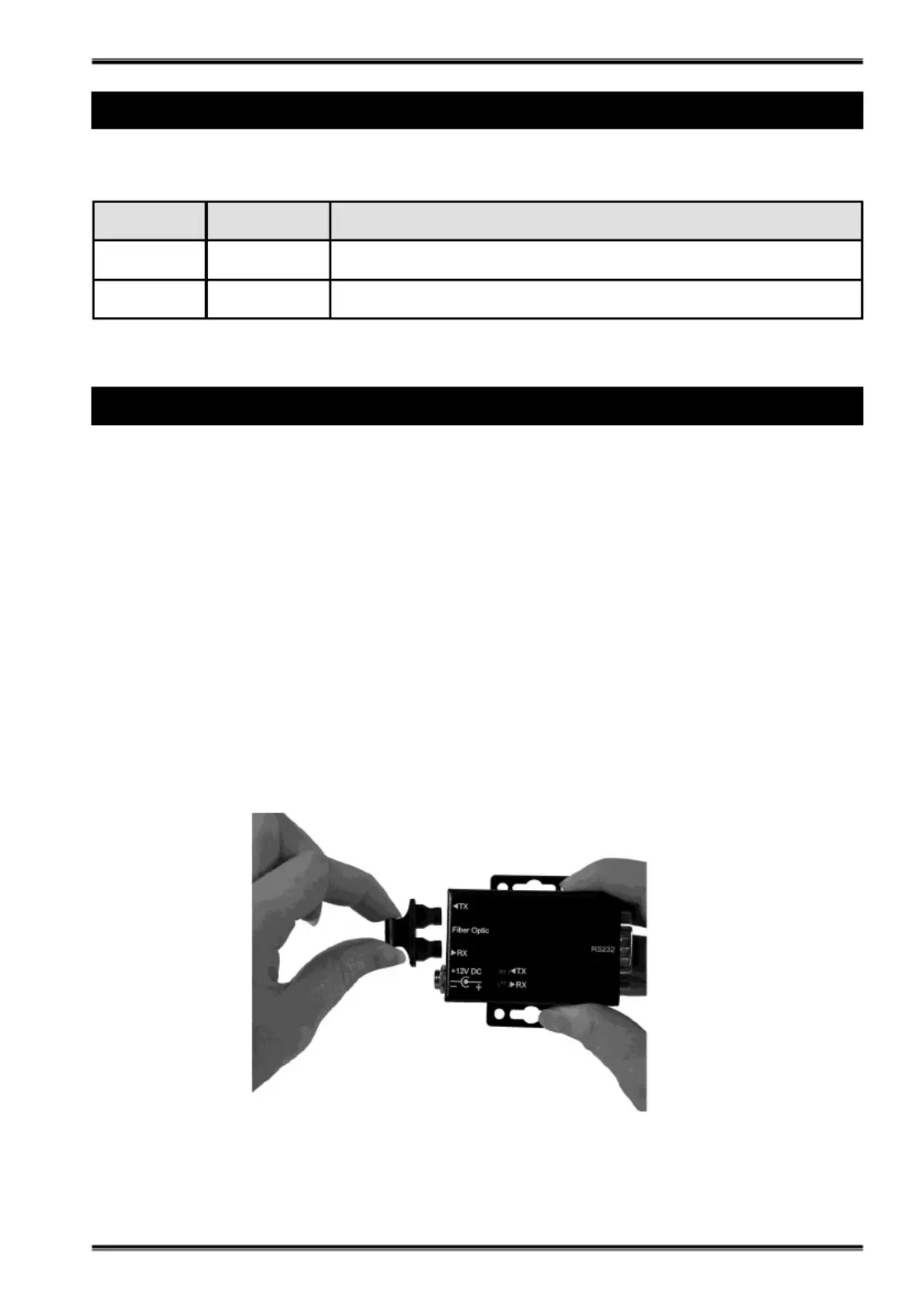

Fiber Optic

Transceiver
