Design Brick 70

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free

(

866

)

245-6726

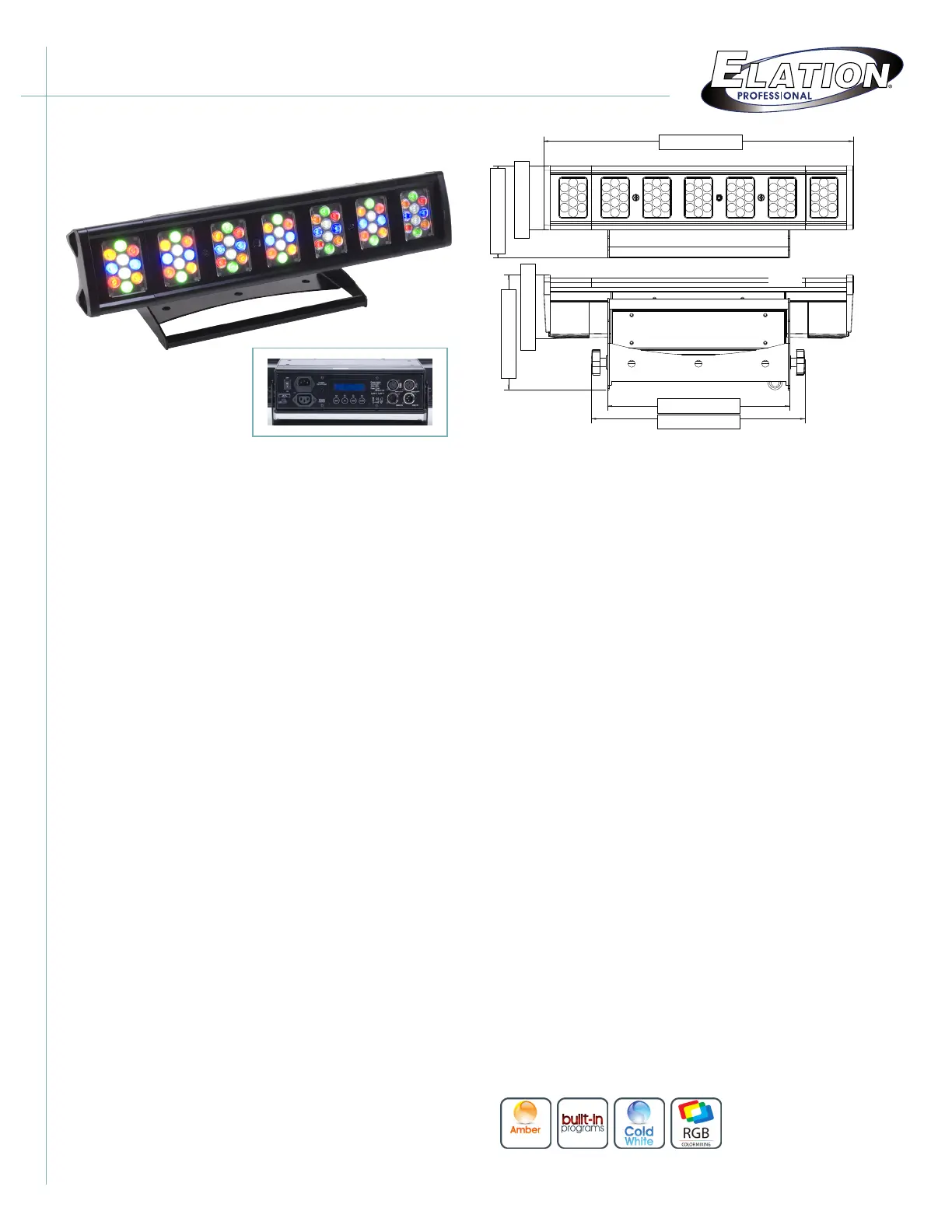

TECHNICAL SPECIFICATIONS

• DMX Channels: 4, 5, 8, 11 or 35 channel

operation modes

• Control:

3 pin or 5pin DMX in/out

• Dimmer: Continuous dimming 0-100%

• Strobe: Electronic strobe effect (25 fps)

• Lux @ 3m: R:480(25°) G:797(25°) B:208(25°)

W:805(25°) A:664(25°) F:2820(25°)

• IP Rating: IP20

• Power Supply: 100-240V AC, 50/60Hz

• Power Consumption: 250W

• Fuse: 5T/3.15A

• Lamp: 12 x 3 Watt led’s by Seoul Semi Conductor

36-Watt Total (4 x Red, 4 x Green 4 x Blue)

• Lamp life:70 x 3W SSC L.E.D.s ( = 210 W Power)

rated at 100,000 Hours

• Dimensions: (LxWxH): 24” x 9.45” x 17” /

610 x 240 x 440mm

• Weight: 17.6 lbs. / 8 kgs.

• Rigging:Integrated Floor Stand / Yoke bracket

Design LED 70 Brick Dimensions

15.1” / 383mm

12.9” / 327mm

21.9” / 562mm

4.5” / 115mm

8.1” / 205.4mm

4.5” / 113.7mm

6.5” / 164.8mm

The DESIGN BRICK 70 is a incredible powerful L.E.D. fixture offering amazing color mixing possibilities. With

its additional white and amber L.E.D.s, any color with individual saturation and brightness can be set up.

Even pastel colors or warm white or very warm yellow and orange colors can be achieved easily, always

maintaining a perfect color mix in the beam with high light output. The Design Brick 70 is rated at IP 20,

designed for indoor applications only. The unit can be operated from 100~240V and control data input is

via 3 pin or 5 pin DMX data first in and out connector cables. The Design Brick 70 also features low power

consumption, minimal heat emission and flicker-free operation for television and film. The unit also features

single cell control and an LCD display menu. The unit comes fitted standard with a 25° lens kit with available

optional 15° and 40° lens kits.

FEATURES

• 210 Watt RGBWA LED BAR

• 70 x 3W SSC L.E.D.s ( = 210 W Power)

• Single cell control

• RGB + white + amber

• Beam Angle: 16° (lens 25°)

• Field Angle: 35° (lens 25°)

• Optional Beam Angles:

Beam Angle: 10° (lens 15°)

Field Angle: 26° (lens 15°)

Beam Angle: 20° (lens 40°)

Field Angle: 47° (lens 40°)

• Extreme Light output

• Built-in macros + effects

• LCD display menu setup

• 5 DMX channel operation modes available

• Red, Green, Blue, White, Amber

• Unlimited Color Mixing possibilities

• Digital LCD Display

• Flicker free

• 7 Cell Pixel Control

• 4 DMX Modes - HSIC, RGBAW, Pixel, Individual

• Built In Macro Programs / Effects

• 100-240V AC Multi Voltage PSU built in

• cETLus pending
