- 1 -

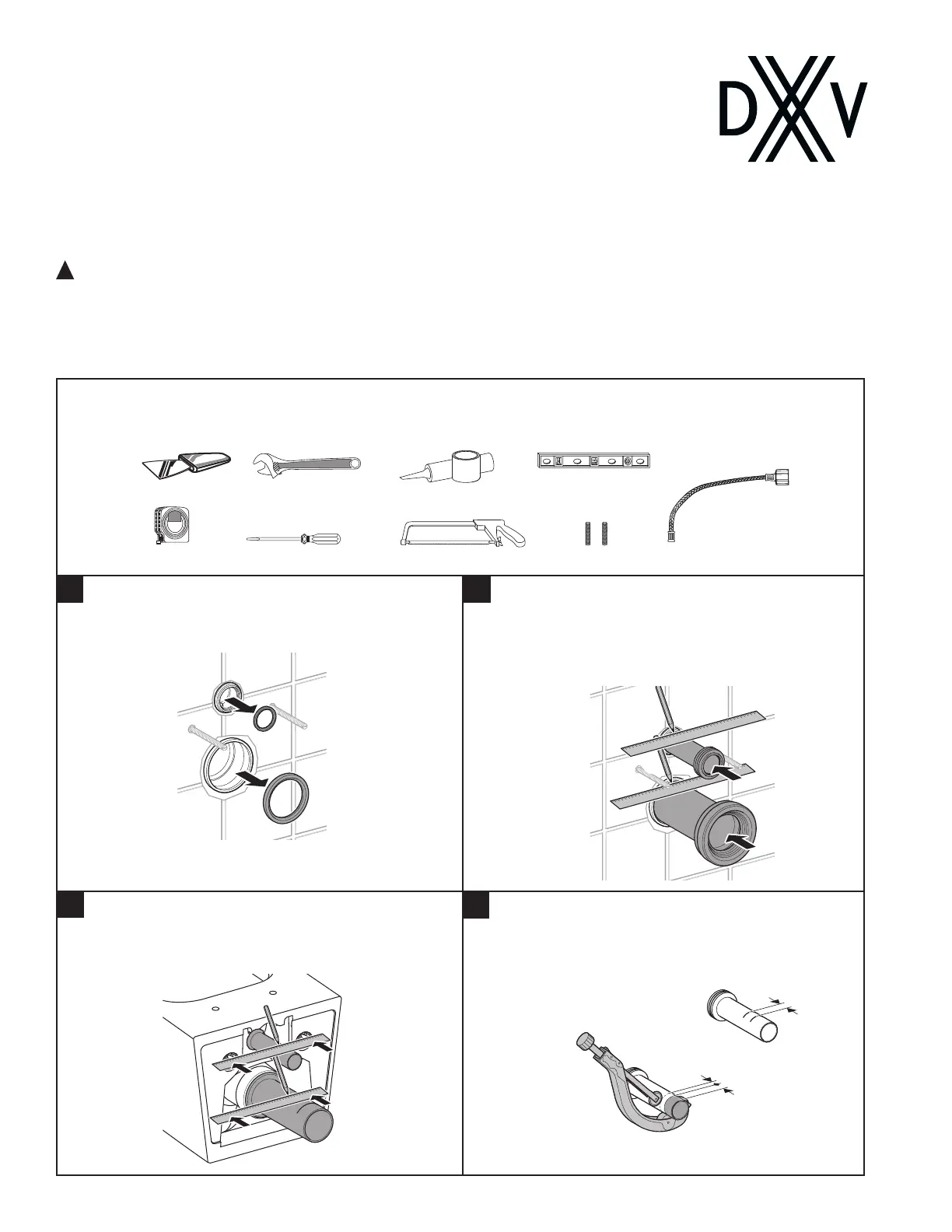

INSTALLATION INSTRUCTIONS
SAVE FOR FUTURE USE
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2020
7302409-100 (2/2020)
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
!
DXV Belshire
™
Wall Hung Toilet with Seat
Model D23050A000.415
Regular Screwdriver
10'
Level
Closet Bolts
Putty Knife
Tape Measure
Hacksaw
SealantAdjustable Wrench
Flexible Supply Tube
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES.
For rough-in dimensions, see spec page or web site
BOWL INSTALLATION:
Remove yellow protection plugs and seals from pipes.
Place discharge pipe with gasket into waste outlet of bowl.
Also place ush pipe with n gasket into inlet of bowl.
Then mark a second line on both pipes.
Insert discharge pipe into the pipe hub in the wall. Place
a straight edge ush against the wall and mark a line on
the pipe. Fit nned rubber seal onto ush pipe. Repeat
same procedure for discharge pipe.
Add dimension X and 1/8" (3 mm). Using that dimension,
mark a line on the pipe measuring from the hub side.
Cut off the pipe at the line with a pipe cutter.
12
4
3
X
X
+
1/8"
+
(
3
m
m
)
