INSTALLATION INSTRUCTIONS

SAVE FOR FUTURE USE

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2017

7302027-100 Rev. D (10/17)

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing

supply stores. It is tessential that the tools and materials be on hand before work is begun.

Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.

(Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

!

Seagram

®

Wall Hung Dual Flush

Toilet with Seat

Model D23010S000.415

GasketWax Ring

Regular Screwdriver

10'

LevelFlexible Supply Tube

Closet Bolts

Putty Knife

Tape Measure

Hacksaw

SealantAdjustable Wrench

1

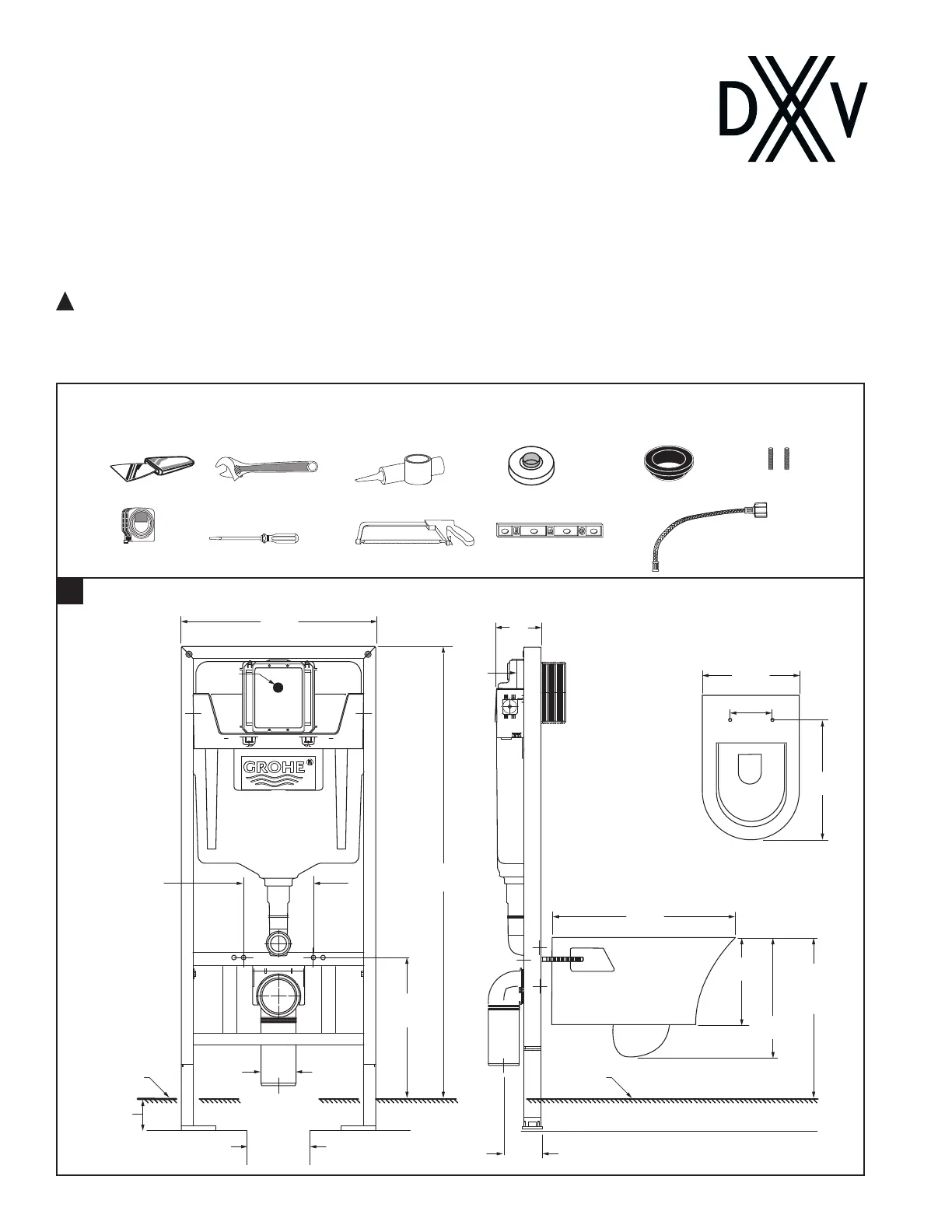

ROUGHING-IN DIMENSIONS:

ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL

PLUMBING AND BUILDING CODES

SUPPLY

AS REQ’D

4"

(100 mm)

5-1/2"

MIN.

(140 mm)

1/2"

NPT

4" MIN.

(102 mm)

FINISHED

FLOOR

FINISHED

FLOOR

STUD FRONT

CENTER PIPE

4-1/4"

(108 mm)

7-1/16"

(180 mm)

0" - 7-7/8"

(0 - 200 mm)

12"-16"

(305-407 mm)

44-1/2"-48-7/16"

(1130-1230 mm)

X

19-3/4"

(500 mm)

21-3/4"

(552 mm)

14-1/2"

(366 mm)

6-1/8"

(155 mm)

10"

(254 mm)

FINISHED RIM

HEIGHT (FRM)

FRM =

X PLUS

3" (76 mm)

17-1/2"

(445 mm)

13-3/4"

(350 mm)
