- 1 -

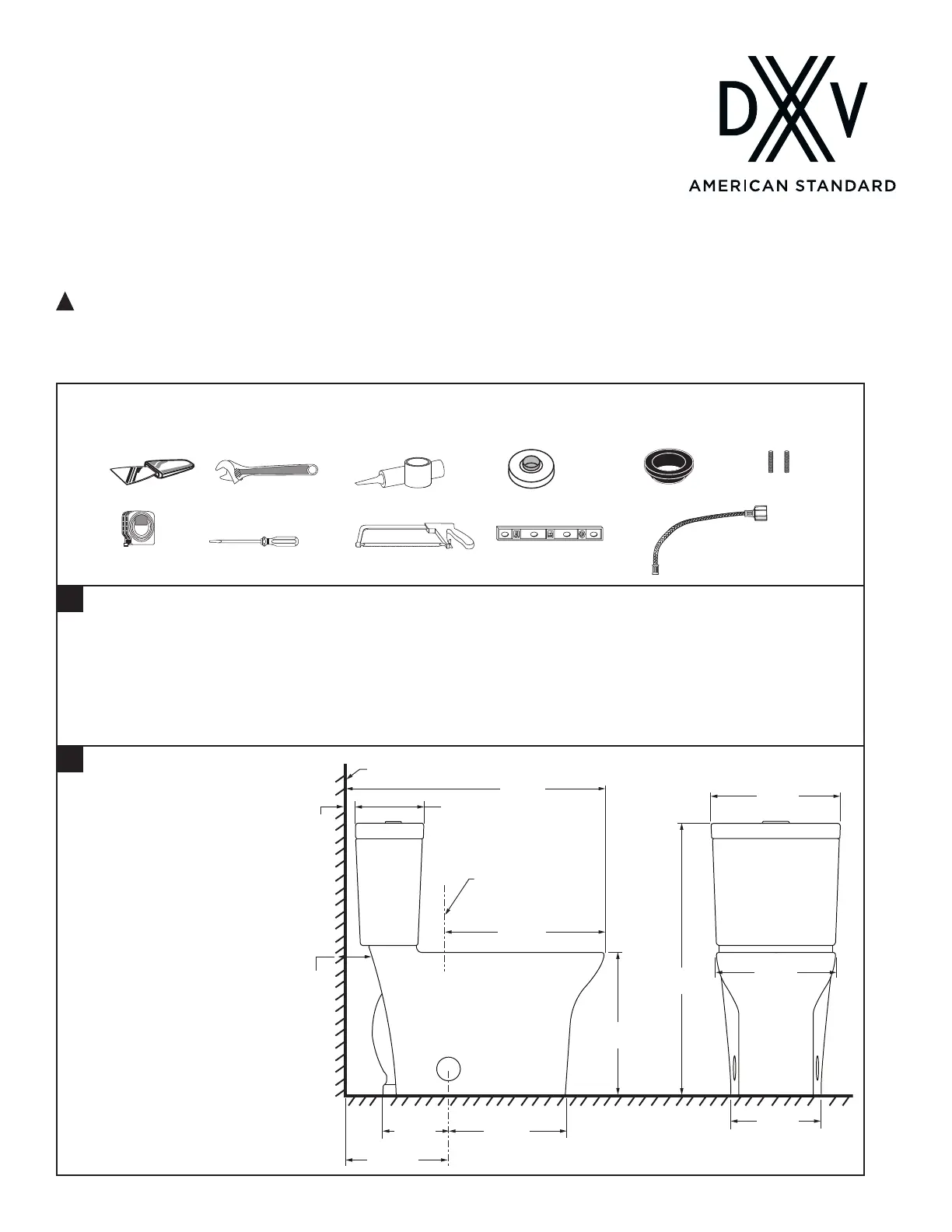

INSTALLATION INSTRUCTIONS

SAVE FOR FUTURE USE

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2018

7302018-100 Rev. B (5/18)

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing

supply stores. It is tessential that the tools and materials be on hand before work is begun.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

!

Equility

™

(Formerly LYNDON

®

)

Dual Flush

Concealed Trapway

Right Height

®

, Elongated Model D2210AA200

GasketWax Ring

Regular Screwdriver

10'

LevelFlexible Supply Tube

Closet Bolts

Putty Knife

Tape Measure

Hacksaw

SealantAdjustable Wrench

a. Close toilet supply valve and ush tank completely. Towel or sponge remaining water from tank and bowl.

b. Disconnect and remove supply line. NOTE:If replacing valve, first shut off main water supply!

c. Remove old mounting hardware, remove toilet and plug oor waste opening to prevent escaping sewer gases.

d. Remove closet bolts from ange and clean away old wax, putty, etc. from base area.

NOTE: Mounting surface must be clean and level before new toilet is installed!

NOTE: Distance from wall to

closet flange centerline must

be as listed below:

IMPORTANT: Water supply on

the wall is required at 2-1/4" or 8"

from centerline of the toilet (see

rough-in). First suggested

position is hidden behind the

toilet. The geometry of the toilet

gives space for this installation.

The second suggested position is

next to the toilet. Between these

two positions, the space for the

supply between wall and toilet is

limited to 4-1/2". In this case,

check your supply and hose

dimensions.

1

2

REMOVE OLD TOILET

ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL

PLUMBING AND BUILDING CODES

ROUGHING-IN DIMENSIONS:

30-3/16"

(767 mm)

7-15/16"

(20 1mm)

1-1/8"

(29 mm)

18-1/2"

(470 mm)

4-1/4"

(108 mm)

7-11/16"

(195 mm)

13-11/16"

(347 mm)

16-1/2"

(419 mm)

15-1/8"

(384 mm)

10-5/8"

(270 mm)

31-9/16"

(802 mm)

12"

(305 mm)

FINISHED

WALL

C/L OF SEAT POST

HOLES 5-1/2"

(140 mm) CENTERS

14"

(356 mm)

Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.

(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
