Wi-Fi 6 AX1500

4G Cat4 LTE Router

Package Contents:

Wireless Router (DWR-M955X)

Power Adapter

Ethernet Cable

Quick Installation Guide

Warranty Card

If any of these items are missing from your packaging,

contact your reseller.

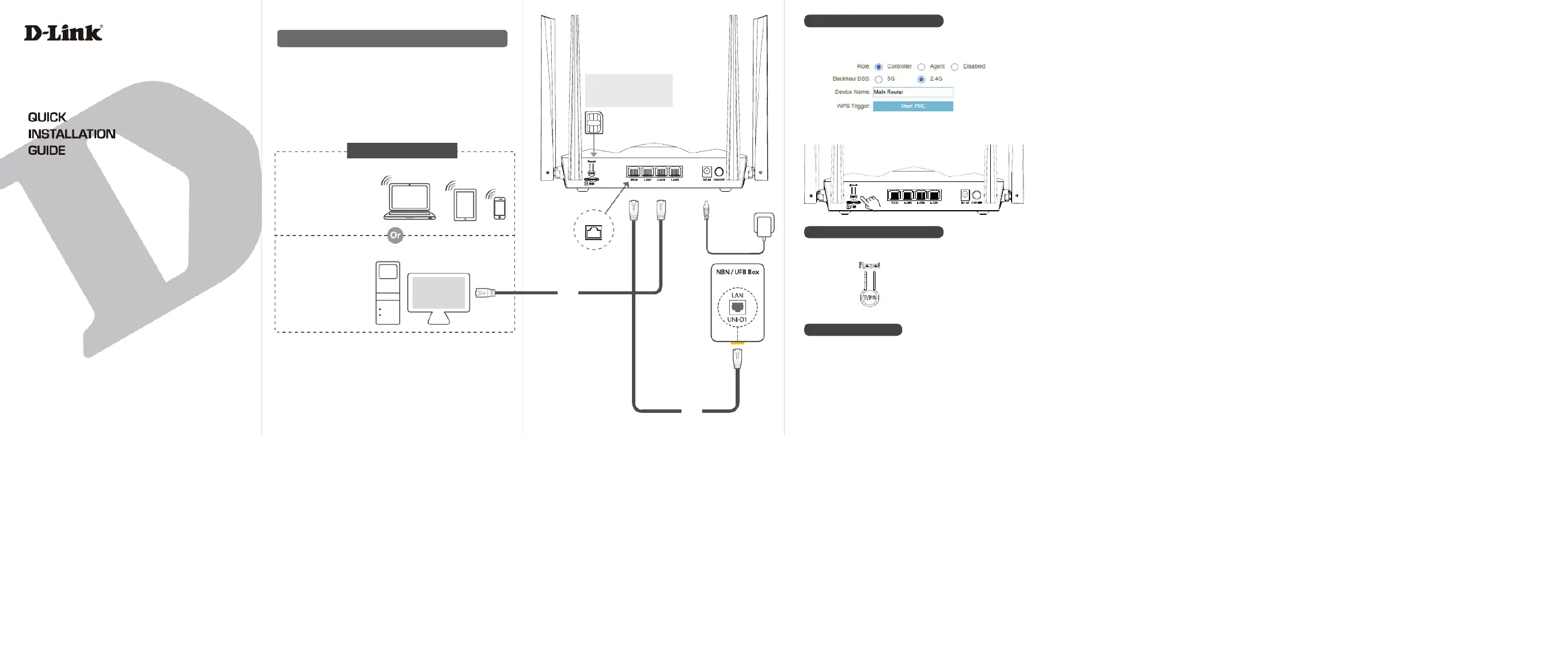

DWR-M955X

Connect via Wi-Fi

Connect your device to the

Router’s Wi-Fi. The default

Wi-Fi name and password

are printed on the label at

the back of the Router.

Connect to ISP

Connection Box

Using the included

Ethernet cable,

connect the Router’s

WAN port to the

Ethernet port on

your NBN or UFB

Connection Box.

Connect via a Network Cable

Connect your PC to the

Router’s LAN1, LAN2 or

LAN3 port using a

network cable.

Connect Your Device

Power

Cable

Cable

WAN

TECHNICAL SUPPORT

For conguration guides and the latest software updates, please visit

support.dlink.com.au

You can contact our Technical Support Team:

• Via website: https://www.dlink.com.au/contactus

• Via Live Chat: https://support.dlink.com.au/

• Via phone (24x7):

Australia: 1300 700 100

New Zealand: 0800 900 900

Schematic Diagram of Router Connection

Optional:

Insert SIM Card for 4G LTE

connectivity.

OPTIONAL: MESH SETUP

To create a Wi-Fi mesh with multiple D-Link Routers, rst select the required mode under

“Easymesh” settings of each Router. The Router that connects to the Internet should be

set as Controller. The Satellite Routers should be set as Agents.

RESET TO FACTORY DEFAULTS

To revert the Router to factory settings including Admin password, Wi-Fi name and Wi-Fi

password, press the Reset (WPS) button for 10 seconds.

Press the WPS button at the back of both Routers for 3 seconds. The 2.4GHz LED will ash

and the Routers will wirelessly sync with each other automatically.

Connect the Device

Wireless connection

The client-side connects to router Wi-Fi

Wired connection

Or

Connect the PC and router via LAN1, LAN2 or LAN3 with cable

cable

witch ons

cable

cable

cable

Or

Use DSL or PON for Internet connection

modem

Community broadband Internet access

telephone line or fiber

PackingList:

1.TheDevice

2.QuickInstallationGuide

3.PowerAdapter

4.EthernetCable

5.WarrantyCard

Ifanyoftheseitemsaremissingfromyourpackaging,contactyour

reseller.

LED Behavior

2.Quick Setup

2.1. OperationMode

Default management account is printed on the lable at the bottom of the

device, you can change it.

2.2.1.PPPoE

FillintheUserNameandPassword.

2.2.3. Static IP

Fill in the IP Address, Subnet Mask, Default Gateway and DNS1 (DNS2 is optional).

Default IPaddress is 192.168.0.1, you can change it.

After the connection is completed, use a mobile phone or computer to search for

the Wi-Fi name 2.4G SSID and 5.8G SSIDon the label at the bottom of the device

and enter the corresponding password to connect to Wi-Fi. Open the mobile phone

or computer browser, visit the 192.168.0.1 website, enter the default password on

the label at the bottom of the device, and enter the router management interface.

Userscandecidewhethertousegatewayorbridgemodeaccording

toownnetworkenvironment.Ifchoosegatewaymode,theyneedto

setspecificroutingmode,suchasPPPoE,DHCP,staticIP,ifchoose

Bridgemode,thewanportwillchangetolanport,anddhcpserver

willbedisabledautomatically.

2.2.2.DynamicIP

TherouterisdefaulttodynamicIP(DHCPClient)forInternetaccess.

Default SSIDand Password are printed on the lable at the bottom of the device, you

can change it.

Whentheroute••isconfiguredforthefirsttime,itwillautomaticallyenter

thequickconfigurationwizardpage.

2.2. Con••••gureRoute••Interface

Route••configincludePPPoE/DynamicIP/StaticIP,pleaseselectone

accordingtoownnetworkenvironment.

2.4. Con••••gure Management Account

2.3. Con••••gure Device IPAddress

The default username

and password are on the

bottom label

2.5. Con••••gure ••••••••••••••••••and Password.

Quick Installation Guide

4G Cat4 LTE Wifi 6 Router

••••••-••955X

••••••••••••••••••••••••••••••955X••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••7••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

WAN

LAN

1. Schematic Diagram of Router Connection

Item

LED NameLED Behavior

1Power

When the device is turned on,the light is on.

When the device is shut down,the light is off.

2

NET

Connected to the Internet,the green light is on, the red

light is off.

Not connected to the Internet,the red light is on, the

green light is off.

3LAN Port

After the LAN port is connected, the light is on.

The LAN port is not connected,the light is off.

4

2.4GWiFi

（

WPS

）

When the WiFi is on, the light is on.

When the WiFi is off, the light is off.

After holding WPS for three seconds, the light will blink.

（

Slow flashing

）

55GWiFi

When the WiFi is on, the light is on.

When the WiFi is off, the light is off.

6

LTE Signal

Light up different lights as the signal strength increases.

1

234

5

6

Connect the Device

Wireless connection

The client-side connects to router Wi-Fi

Wired connection

Or

Connect the PC and router via LAN1, LAN2 or LAN3 with cable

cable

witch ons

cable

cable

cable

Or

Use DSL or PON for Internet connection

modem

Community broadband Internet access

telephone line or fiber

PackingList:

1.TheDevice

2.QuickInstallationGuide

3.PowerAdapter

4.EthernetCable

5.WarrantyCard

Ifanyoftheseitemsaremissingfromyourpackaging,contactyour

reseller.

LED Behavior

2.Quick Setup

2.1. OperationMode

Default management account is printed on the lable at the bottom of the

device, you can change it.

2.2.1.PPPoE

FillintheUserNameandPassword.

2.2.3. Static IP

Fill in the IP Address, Subnet Mask, Default Gateway and DNS1 (DNS2 is optional).

Default IPaddress is 192.168.0.1, you can change it.

After the connection is completed, use a mobile phone or computer to search for

the Wi-Fi name 2.4G SSID and 5.8G SSIDon the label at the bottom of the device

and enter the corresponding password to connect to Wi-Fi. Open the mobile phone

or computer browser, visit the 192.168.0.1 website, enter the default password on

the label at the bottom of the device, and enter the router management interface.

Userscandecidewhethertousegatewayorbridgemodeaccording

toownnetworkenvironment.Ifchoosegatewaymode,theyneedto

setspecificroutingmode,suchasPPPoE,DHCP,staticIP,ifchoose

Bridgemode,thewanportwillchangetolanport,anddhcpserver

willbedisabledautomatically.

2.2.2.DynamicIP

TherouterisdefaulttodynamicIP(DHCPClient)forInternetaccess.

Default SSIDand Password are printed on the lable at the bottom of the device, you

can change it.

Whentheroute••isconfiguredforthefirsttime,itwillautomaticallyenter

thequickconfigurationwizardpage.

2.2. Con••••gureRoute••Interface

Route••configincludePPPoE/DynamicIP/StaticIP,pleaseselectone

accordingtoownnetworkenvironment.

2.4. Con••••gure Management Account

2.3. Con••••gure Device IPAddress

The default username

and password are on the

bottom label

2.5. Con••••gure ••••••••••••••••••and Password.

Quick Installation Guide

4G Cat4 LTE Wifi 6 Router

••••••-••955X

••••••••••••••••••••••••••••••955X••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••7••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

WAN

LAN

1. Schematic Diagram of Router Connection

Item

LED NameLED Behavior

1Power

When the device is turned on,the light is on.

When the device is shut down,the light is off.

2

NET

Connected to the Internet,the green light is on, the red

light is off.

Not connected to the Internet,the red light is on, the

green light is off.

3LAN Port

After the LAN port is connected, the light is on.

The LAN port is not connected,the light is off.

4

2.4GWiFi

（

WPS

）

When the WiFi is on, the light is on.

When the WiFi is off, the light is off.

After holding WPS for three seconds, the light will blink.

（

Slow flashing

）

55GWiFi

When the WiFi is on, the light is on.

When the WiFi is off, the light is off.

6

LTE Signal

Light up different lights as the signal strength increases.

1

234

5

6
