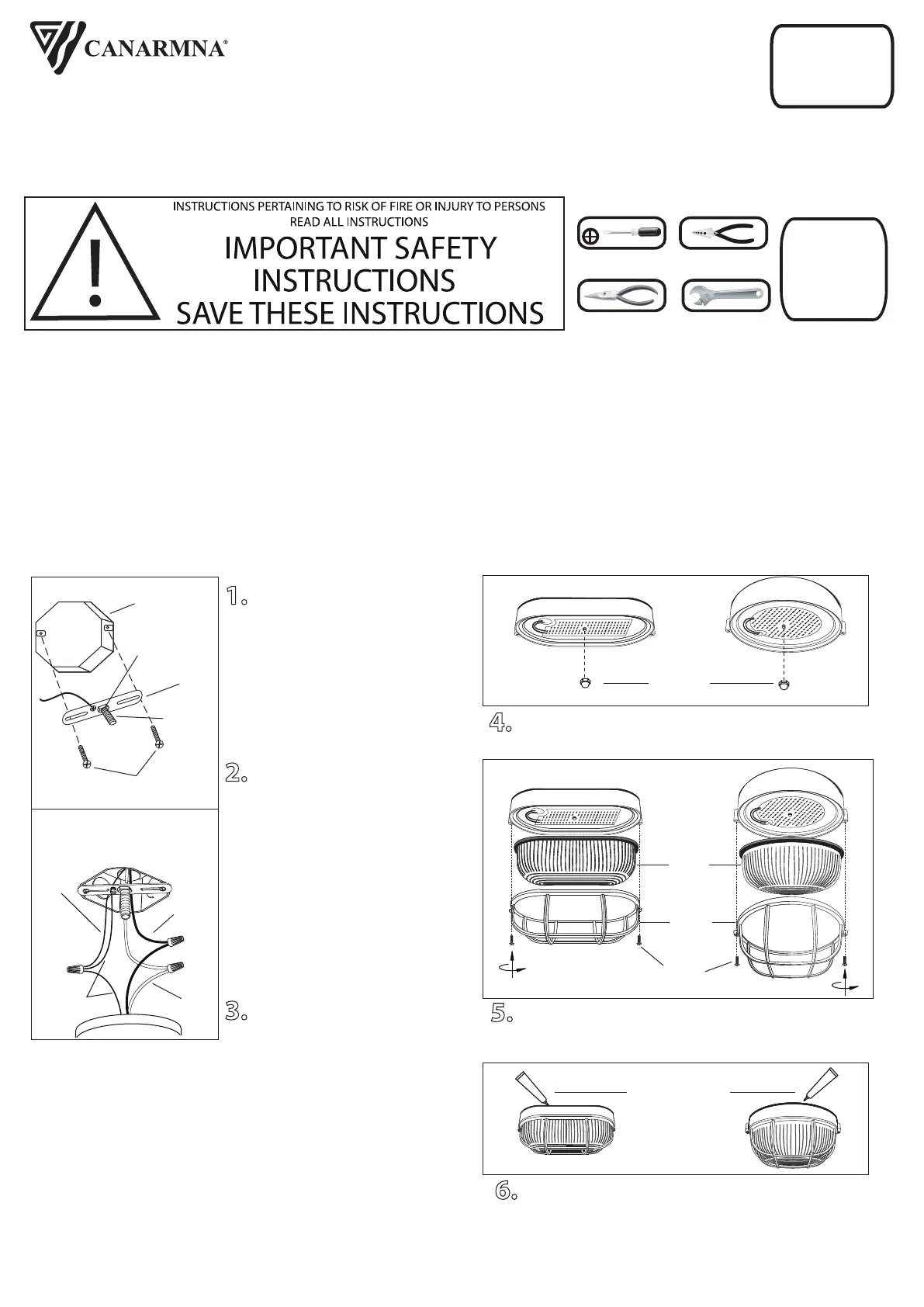

INSTALLATION:

LED OUTDOOR

LIGHTING

TOOLS AND MATERIALS REQUIRED:

Phillips

Screwdriver

Wire Cutters

PliersWrench

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.

2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE

BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND

WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.

4. NOT FOR USE IN LUMINAIRES CONTROLLED BY A DIMMER.

5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH

A CLEAN, SOFT CLOTH.

NOTE: Product may not look exactly as shown in figures.

LOL386

LOL387

09/18

Wiring supplies

as required by

local electrical

code

QUESTIONS OR CONCERNS CONTACT AT:

1-800-265-1833 (English) / 1-800-567-2513 (French)

Monday through Friday 8:00 AM to 5:00 PM E.S.T.

Tel: (613) 342-5424, Fax: (800) 263-4598

4. Position hole in fixture over nipple and secure in

place with cap nut.

SAFETY PRECAUTIONS:

1. Attach nipple to

mounting bracket. Adjust so

it will clear hole in back of

fixture and then lock nipple

in place with hex nut. Attach

mounting bracket to electrical

box with electrical box screws

(not included).

2. Connect the ground wires

(bare copper or green) from your

fixture to the ground wire (bare

copper or green) or ground screw

in the electrical box. Connect the

black wire from the fixture to the

black wire in the electrical box

and connect the white wire from

the fixture to the white wire in the

electrical box.

NOTE: Do not disconnect any

pre-wired connections.

3.

Once connections of wires

are completed, carefully tuck

wires and wire nuts into the

electrical box making sure no bare

wire (on the black and white) is

visible at the wire nuts.

White

Black

House

supply

Ground

wire

Fixture

Ground

wire

Cap Nut

Mounting

Bracket

Electrical

Box

Nipple

Hex nut

Electrical Box Screws

(not included)

5.

Position glass inside guard and place on fixture.

Secure in place with two screws and tighten until

gaskets seal.

LOL386

LOL387

LOL386

LOL387

Glass

Guard

Screw

Weather Resistant

Caulking

(not included)

6.After installation, seal around the side perimeter

between the fixture and the wall or ceiling surface

with weather resistant caulking (not included).
