LED OUTDOOR

LIGHTING

INSTALLATION:

LOL603

10/22

Tel: (613) 342-5424, Fax: (800) 263-4598

SAFETY PRECAUTIONS:

TOOLS AND MATERIALS REQUIRED:

Phillips

Screwdriver

Wire Cutters

PliersWrench

!

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS

READ ALL INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

Wiring supplies

as required by

local electrical

code

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.

2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE

BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND

WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.

4. NOT FOR USE IN LUMINAIRES CONTROLLED BY A DIMMER.

5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A

CLEAN, SOFT CLOTH.

NOTE: Product may not look exactly as shown in figures.

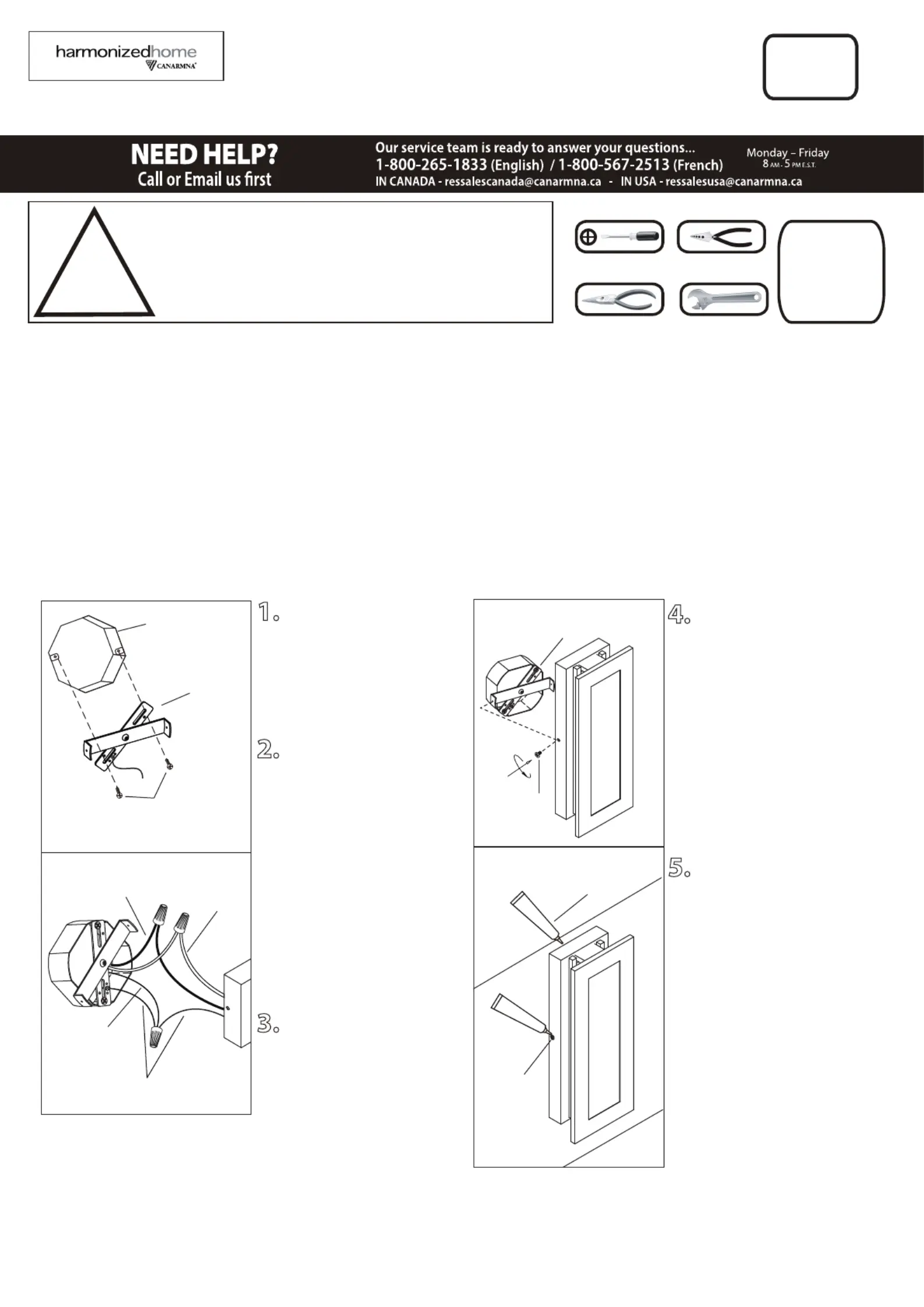

4. Attach fixture to mounting

bracket by tightening the 2

screws.

5. After installation, seal

around the top and side

perimeter between the fixture

and the wall surface with

weather resistant caulk. The

bottom should be left

un-caulked to prevent moisture

build-up. Apply a small amount

of weather resistant caulk

around the side perimeter

between the screws and

mounting plate.

1. Mount the mounting

bracket to electrica

l box using

electrica

l box screws (not

included).

2. Connect the ground

wires (bare copper or green)

from your fixture to the

ground wire (bare copper or

green) or ground screw in the

electrical box. Attach the

black wire from the light

fixture to the black wire in the

electrical box. Attach the

white wire from the light

fixture to the white wire in the

electrical box.

NOTE: Do not disconnect

any pre-wired connections.

3.Once connections of

wires are completed, carefully

tuck wires and wire nuts into

the electrical box making sure

no bare wire (on the black and

white) is visible at the wire

nuts.

Electrical

Box

Electrical Box Screws

(not included)

Mounting

Bracket

Mounting

Bracket

White

Black

House

supply

Ground

wire

Fixture

Ground wire

Screw

Screw

Weather Resistant

Caulk

(not included)
