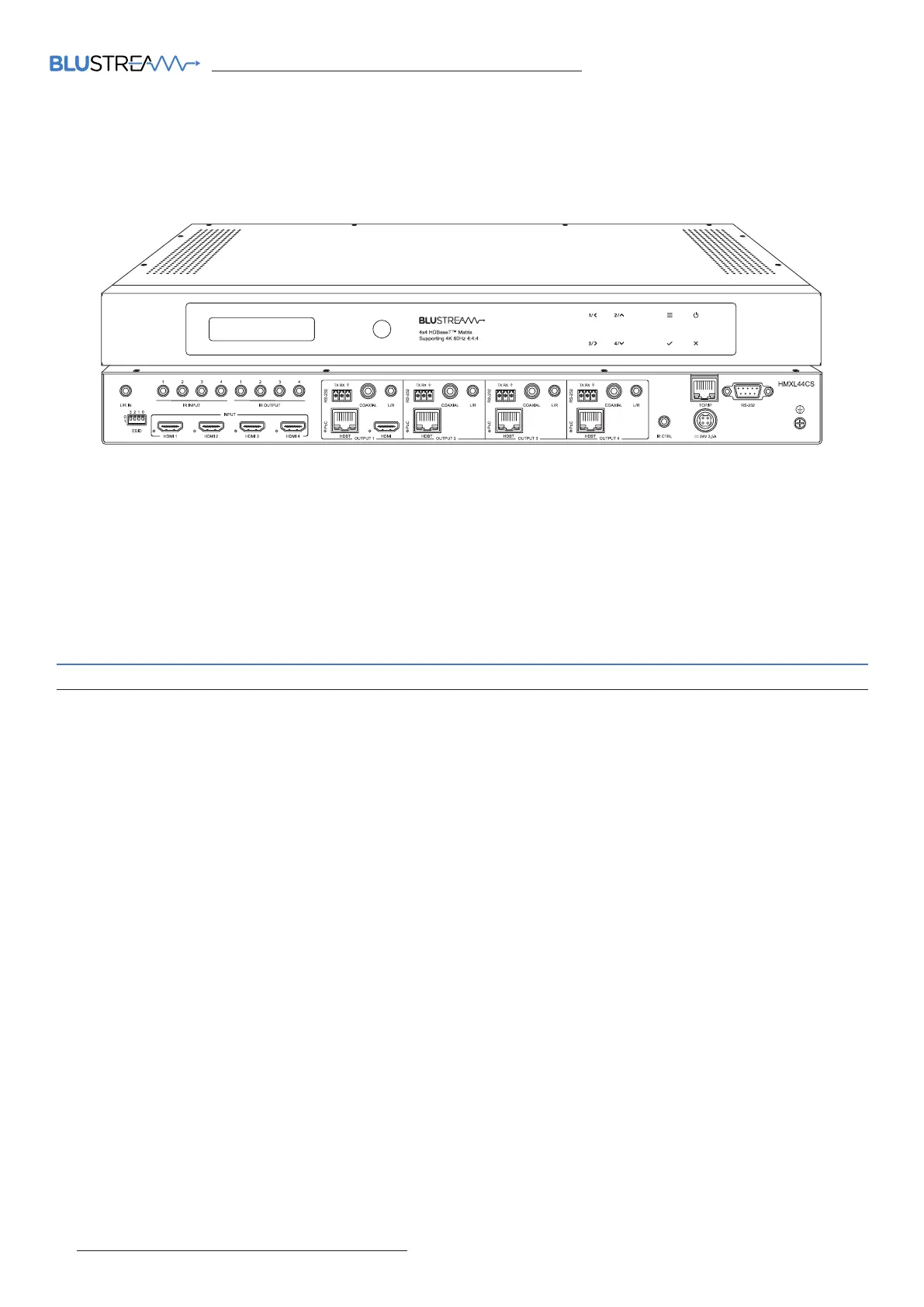

HMXL44CS-KIT QUICK REFERENCE GUIDE

www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk

• Advanced HDBaseT™ technology oering uncompressed video and audio with zero latency

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

• Output 1 features simultaneous HDMI and HDBaseT™ output

• Video down-conversion on HDBaseT™ output 1 allowing a display only capable of supporting lower video resolutions (4K

60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on the

remaining video outputs

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Extends HDMI 1080p video up to 70m

• HDMI re-clocking on the HEX70CS-RX HDBaseT™ receiver to help solve HDMI HDCP, compatibility and handshaking issues

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio

transmission

• HDMI audio breakout to associated analogue L/R audio outputs with pre-amp line level control

• Analogue audio input can be embedded onto any HDMI input

• Web interface module for control and configuration of matrix

• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

• Supplied with Blustream 5V IR receivers and emitters

• Control via front panel, IR, RS-232, TCP/IP, or iOS / Android App

• Supports PoC (Power over Cable) to power supplied Blustream HDBaseT™ receivers

• 1U design for 19” rack mount integration - mounting kit included

• Advanced EDID management

• HDCP 2.2 compliant

Our Essential 4x4 HDBaseT™ Matrix oers unprecedented performance and value for the

custom installation market. The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix

package utilising HDBaseT™ CSC technology to deliver HDMI, bi-directional IR, RS-232

and PoC (Power over Cable) up to lengths of 70m over a single CAT cable. The matrix also

provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video

down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level

control, and a web browser interface module for control and configuration of the matrix. The

HMXL44CS-KIT is supplied with 4 x HEX70CS-RX HDBaseT™ receivers.

Introduction

HMXL44CS-KIT

Quick Reference Guide

FEATURES:

01
