ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ PREAMP

PR400 EVO

ATOLL ELECTRONIQUEPage 5Page 4

16) ON/SLEEP knob (by pushing); source selection (by rotation).

17) Headphone jack: Pre-out is switched off when a headphone is plugged in.

18) Knob to put ON (by pushing), volume, and menus setup. Access the Balance menu (press

once), Light (press twice), Display (press three times), and SBY ECO (press four times). See

Remote Control section: access the CONFIG menus.

DETAILS OF

FUNCTIONS

– Bluetooth

®

antenna – Coaxiales 1 & 2 Inputs – Optical Inputs 1 & 2 – USB-B Input

Optional Digital Board

a

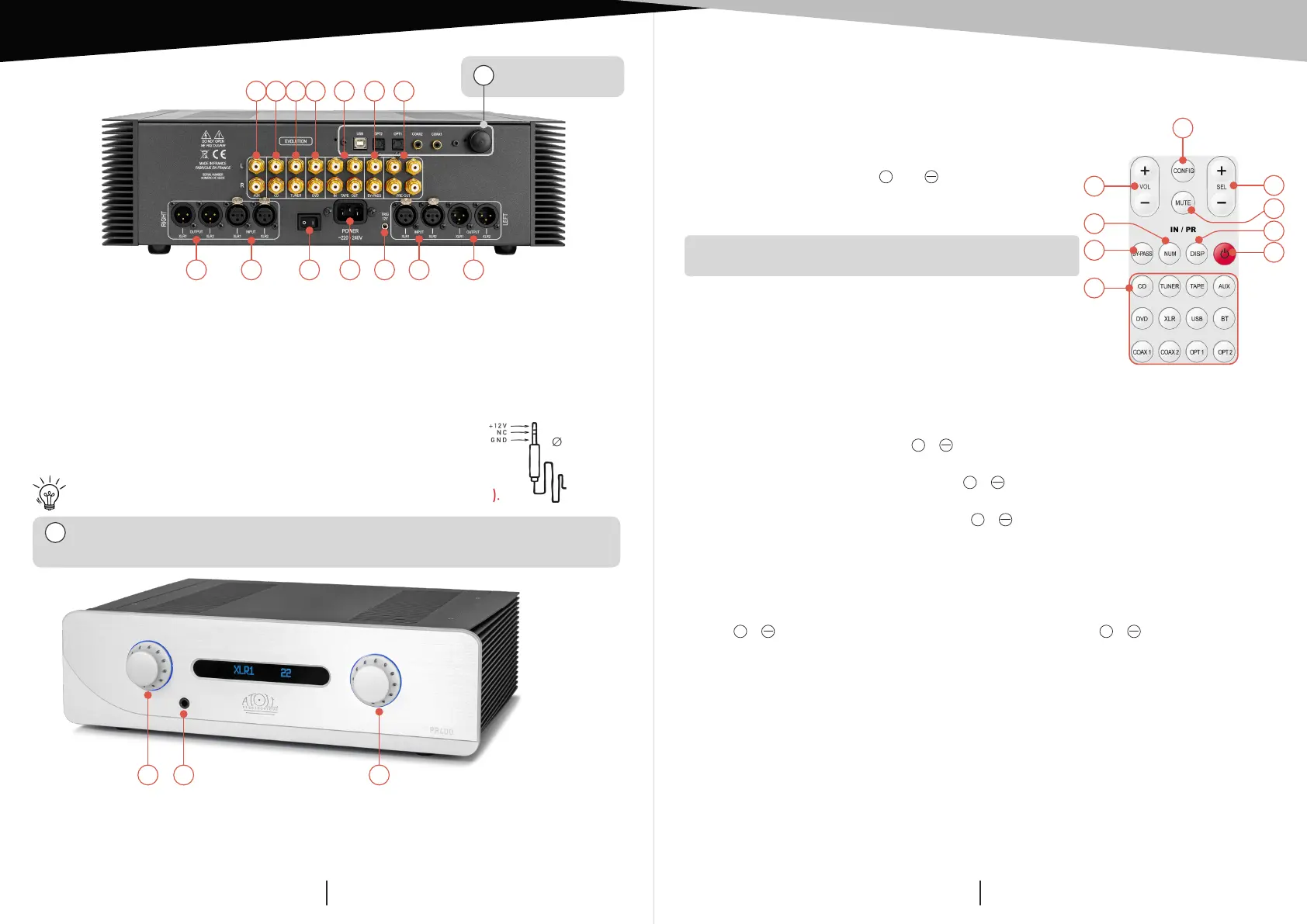

CONNECTINGS

(1)

Trigger output: this output is used to control the switching

ON/OFF of any device equipped with a compatible Trigger input (see

instructions for use).

Trigger cable must be a stereo Male to Male jack plug Ø 3,5 mm (1/8”).

Jack

Ø 3,5 mm

1) Auxiliary input.

2) CD input.

3) Tuner input.

4) DVD input.

5) TAPE recorder input (PLAY & REC).

6) BY-PASS input

(*)

.

7) Preamp outputs (to 1 or 2 power amps

or a subwoofer).

8) XLR outputs 1 & 2 – right channel.

9) XLR inputs 1 & 2 – right channel.

10) Main switch ON/OFF.

11) Power connection.

12) 12V Trigger output

(1)

.

13) XLR inputs 1 & 2 – left channel.

14) XLR outputs 1 & 2 – left channel.

8

91011121314

1234567

Optional Digital

Board

a

171816

19) Display off button: Pressing any button turns the display

back on for 3 seconds.

20) Volume adjustment button

+

and (from 0 to 100)

21) Input selection button.

22) Direct access to sources:

Access to the OPT, COAX, USB, BT inputs is only possible if the

appliance is equipped with the DAC board.

23) Power on/off button.

When in standby mode, the device retains its settings (source,

volume level, balance, backlight color).

24) Mute button. To exit, press any active button on the remote

control.

25) Access to the CONFIG menus:

– Balance (press once): Once in this menu, the adjustment is made using the Vol and

buttons. The volume is distributed from -9 to +9 on each channel.

– Light (press twice): Use the VOL

+

/ buttons to select the backlight color of the front

panel buttons between red, blue, purple, or off.

– Display (press three times): Use the VOL

+

/ buttons to select ON/OFF to turn the

display ON or OFF.

– SBY ECO (press four times): Use the VOL

+

/ buttons to select the time after which the

unit will switch to economy mode when in STANDBY.

- OFF: The unit will remain in preheating mode: Power consumption will be 8 W.

- 10 sec, 5 min, 15 min, 30 min, 60 min: Power consumption will be <0,5 W after the

set time, after switching to STANDBY.

– A long press on CONFIG renames the selected input. Select the characters with the

VOL

+

/ buttons and move to the next character with the SEL

+

/ buttons and confirm

by pressing CONFIG again.

26) BY-PASS

(*)

button.

The remote control comes with 2 CR2025 Lithium batteries. In addition to your PR400

Preamp, it also allows you to control other ATOLL products.

REMOTE CONTROL

Warning: reduce the volume of the source connected to BY-PASS before any use of the

BY-PASS Input. The BY-PASS input bypasses the volume control of your PR400 (to be connected

to the output of an audio-video preamp, for example). This input is selected via the front panel

or by the BY-PASS button on the remote control. Once this input is selected, the word “BY-PASS”

appears on the screen. To exit BY-PASS, press the BY-PASS button on the remote control or

change the source.

(*) USING THE BY-PASS INPUT

25

20

21

23

22

26

21

24

19
