CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: For proper operation the recommended working pressure is between 25 psi at valve when flushing and 80 psi static.
!
INSTALLATION INSTRUCTIONS
CADET 1.1 GPF TWO-PIECE PRESSURE-ASSISTED TOILETS
- Model 2462.100 Cadet Elongated 15"
- Model 2467.100 Cadet Elongated 16-1/2" High Bowl
YORKVILLE 1.1 GPF TWO-PIECE PRESSURE-ASSISTED TOILETS
- Model 2876.100 Yorkville Elongated 15"
- Model 2878.100 Yorkville Elongated 16-1/2" High Bowl
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
Closet Flange Set (Cadet Toilets) Neoprene or Graphite Felt Gasket (Yorkville Toilets)
1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
SAVE FOR FUTURE USE
7301276-100
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2008
2-2
3-2
2-1
3-1

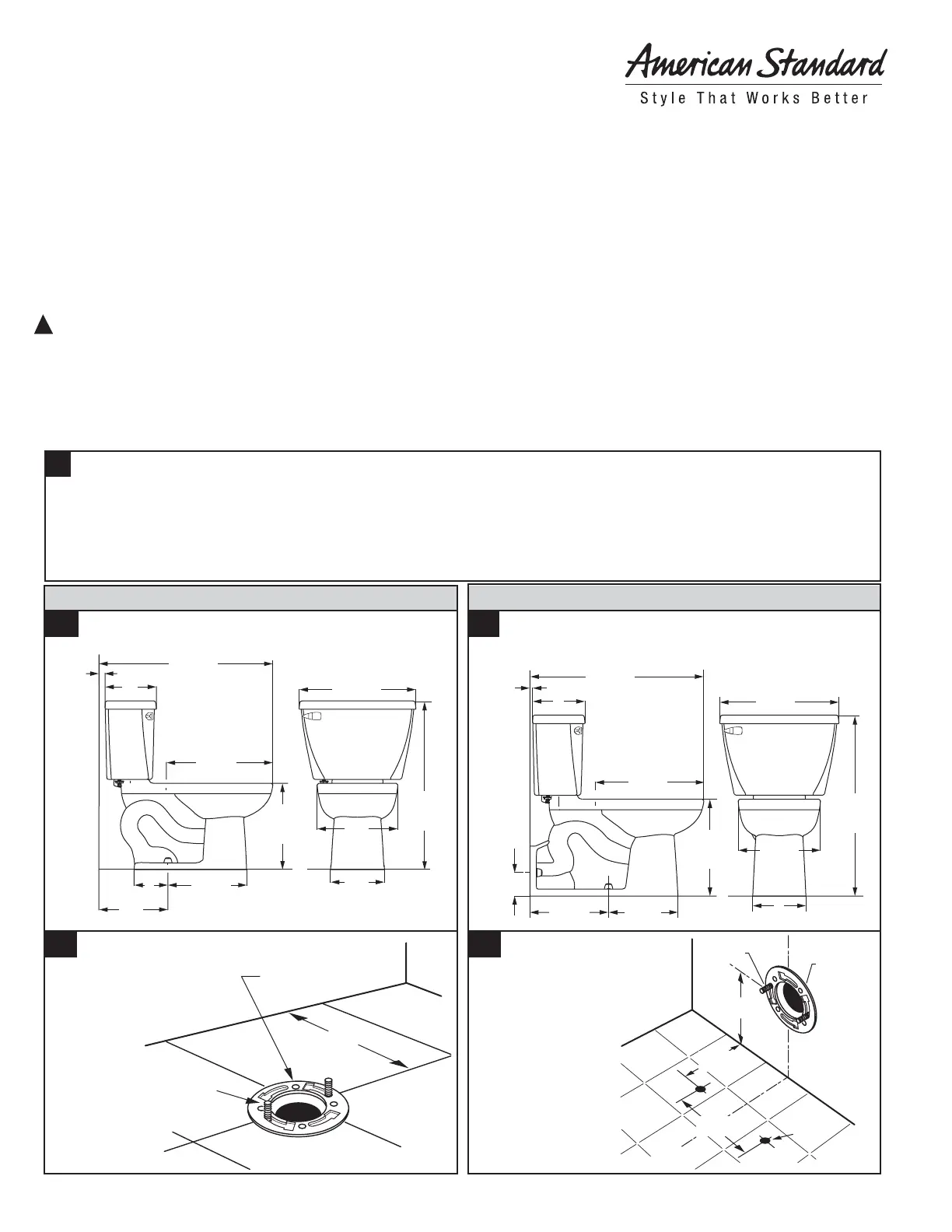

DIMENSIONS (Nominal) NOTE: Distance from floor to closet
flange centerline (rough-in) must be 4" (102 mm) with flange
surface flush to 1/16" (16mm) max. beyond finished wall.
DIMENSIONS (Nominal) NOTE: Distance from wall to closet
flange centerline (rough-in) must be 12" (305 mm)
FOR CADET TOILETS:FOR YORKVILLE TOILETS:
FLUSH TO
1/16" (16mm)
EXPOSED
CLOSET
FLANGE
CLOSET
BOLTS
168mm
(6-5/8")
PILOT
HOLES
102mm
(4)
346mm
(13-5/8)
Install closet bolts in flange
channel, turn 90°, and slide
into place 6" (152 mm) apart
and parallel to floor. (Use
putty to hold bolts in place if
necessary.) Brace under
flooring as needed and
drill two mounting pilot
holes as shown.
INSTALL CLOSET BOLTS
Install closet bolts in flange
channel, turn 90°, and slide
into place 6" (152 mm)
apart and parallel to wall.
INSTALL CLOSET BOLTS
305mm
(12)
CLOSET FLANGE
CLOSET BOLTS
29-3/4"
(752mm)
18-1/2"
(470mm)
20-1/2"
(516mm)
9"
(230mm)
14"
(356mm)
16-1/2"
(419mm)
30-3/4"
(780mm)
13-1/2"
(340mm)
12"
(300mm)
4"
(102mm)
9"
(226mm)
1/2"
(11mm)
30-1/4"
(768mm)
20-1/2"
(516mm)
18-1/2"
(470mm)
12"
(304.8mm)
13-3/4"
(347mm)
9-1/2"
(238mm)
14"
(356mm)
6"
(150mm)
9"
(226mm)
1"
(27mm)
15"
(381mm)
29-1/4"
(742mm)
