RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
a. Close toilet supply valve and flush tank
completely. Towel or sponge remaining
water from tank and bowl.
b. Disconnect and remove supply line.
NOTE: If replacing valve, first shut off main
water supply!
c. Remove old mounting hardware, remove
toilet and plug floor waste opening to
prevent escaping sewer gases.
d. Remove closet bolts from flange and clean
away old wax, putty, etc. from base area.
NOTE:Mounting surface must be clean
and level before new toilet is installed!
SAVE FOR FUTURE USE
7301860-100
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2011
NOTE: Pictures may not exactly define contour of china and components.

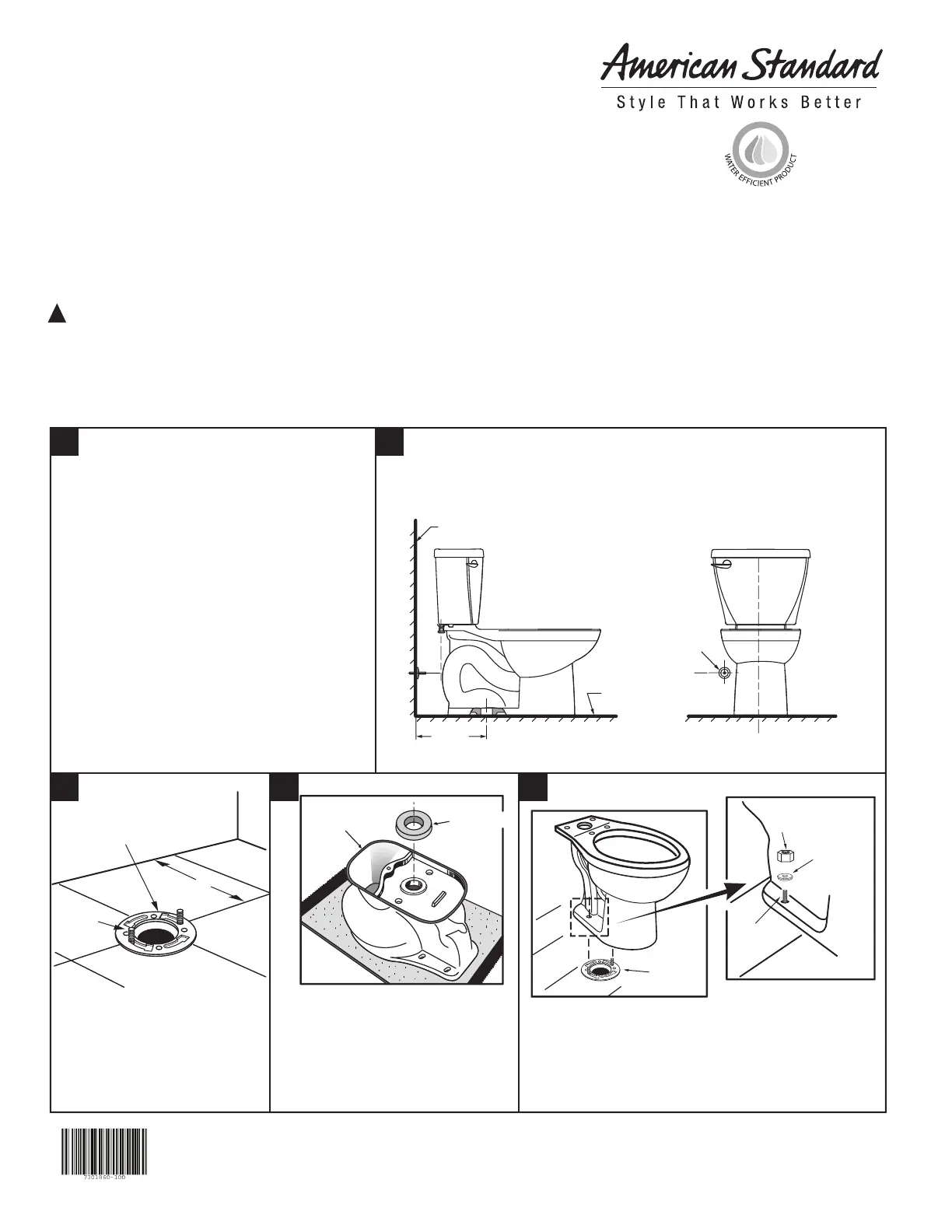

BABY DEVORO - 1.28 GPF TWO-PIECE TOILET
Model 2315
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product
is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
2
CLOSET
FLANGE
CLOSET
BOLTS
A
FINISHED WALL
FINISHED
FLOOR
SUPPLY
AS
REQ'D.
10"
(254mm)
WAX RING
SEALANT
5
43
1
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with tapered
end of ring facing toilet. Apply a thin bead
of sealant around toilet base.
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange
so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers
marked "THIS SIDE UP" must face up!
CLOSET
BOLT
NUT
TAPERED
WASHER
FLANGE
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed below:
INSTALL CLOSET BOLTS
Install closet bolts in flange
channel, turn 90
°
, and slide
into place 6" (152mm) apart
and parallel to wall.
!
REMOVE OLD TOILET
