SAVE FOR FUTURE USE
1
7301166-100 Rev. A
Product names listed herein are trademarks of AS Americas Inc.
© AS Americas Inc. 2008
2
Putty KnifeSealant
Tape Measure
Regular Screwdriver
Adjustable Wrench
Carpenters Level
Flush Valve
RECOMMENDED TOOLS AND MATERIALS
Pictures may not exactly define contour of china
Model 3461, 3462, 3463, 3464, 3465, 3466
Model 3461, 3462, 3465, 3466Model 3463, 3464
MADERA 16-1/2" HEIGHT FLUSH VALVE
FLOOR MOUNTED TOILETS
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR
HANDLING TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the Physically Challenged
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this
product is installed properly, please read these instructions carefully before you begin. (Certain installations may
require professional help.) Also be sure your installation conforms to local codes.
!

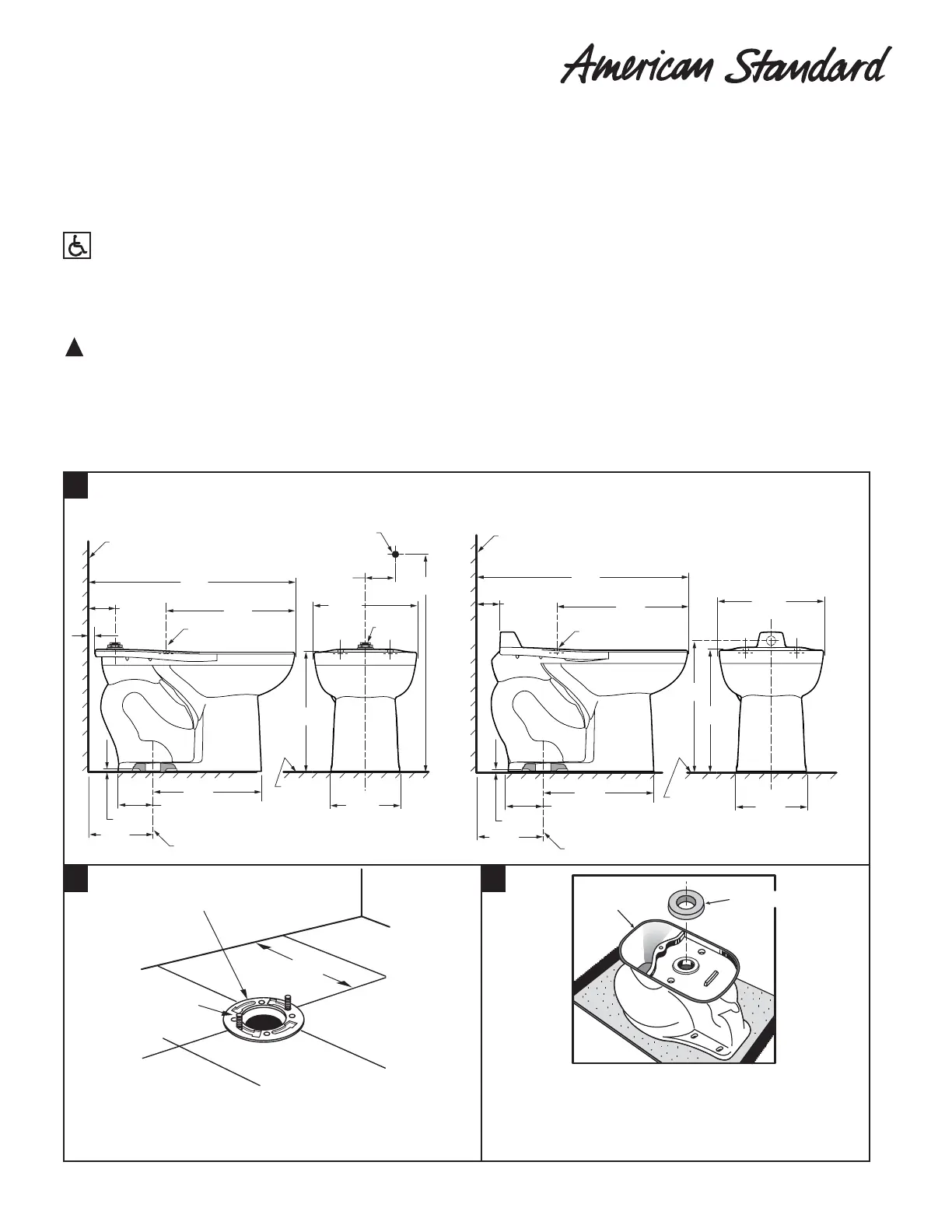

INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and slide
into place 6" (152 mm) apart and parallel to wall.
CLOSET FLANGE
CLOSET BOLTS
10"
254mm
WAX RING
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
3
730mm
(28-3/4)
1 - 1/2
SPUD
121mm
(4-3/4)
238mm
(9-3/8)
419mm
(16-1/2)
470mm
(18-1/2)
356mm
(14)
338mm
(13-5/16)
150mm
(5-7/8)
254mm
(10)
13mm
(1/2)
25mm
(1)
102mm
(4)
718mm
(28-1/4)
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
FINISHED WALL
FINISHED
FLOOR
C/L OF OUTLET
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE
238mm
(9-3/8)
419mm
(16-1/2)
438mm
(17-1/4)
470mm
(18-1/2)
356mm
(14)
338mm
(13-5/16)
150mm
(5-7/8)
254mm
(10)
13mm
(1/2)
76mm
(3)
718mm
(28-1/4)
C/L OF SEAT POST HOLES
140mm (5-1/2) CENTERS
FINISHED WALL
FINISHED
FLOOR
C/L OF OUTLET
INSTALLATION
INSTRUCTIONS
