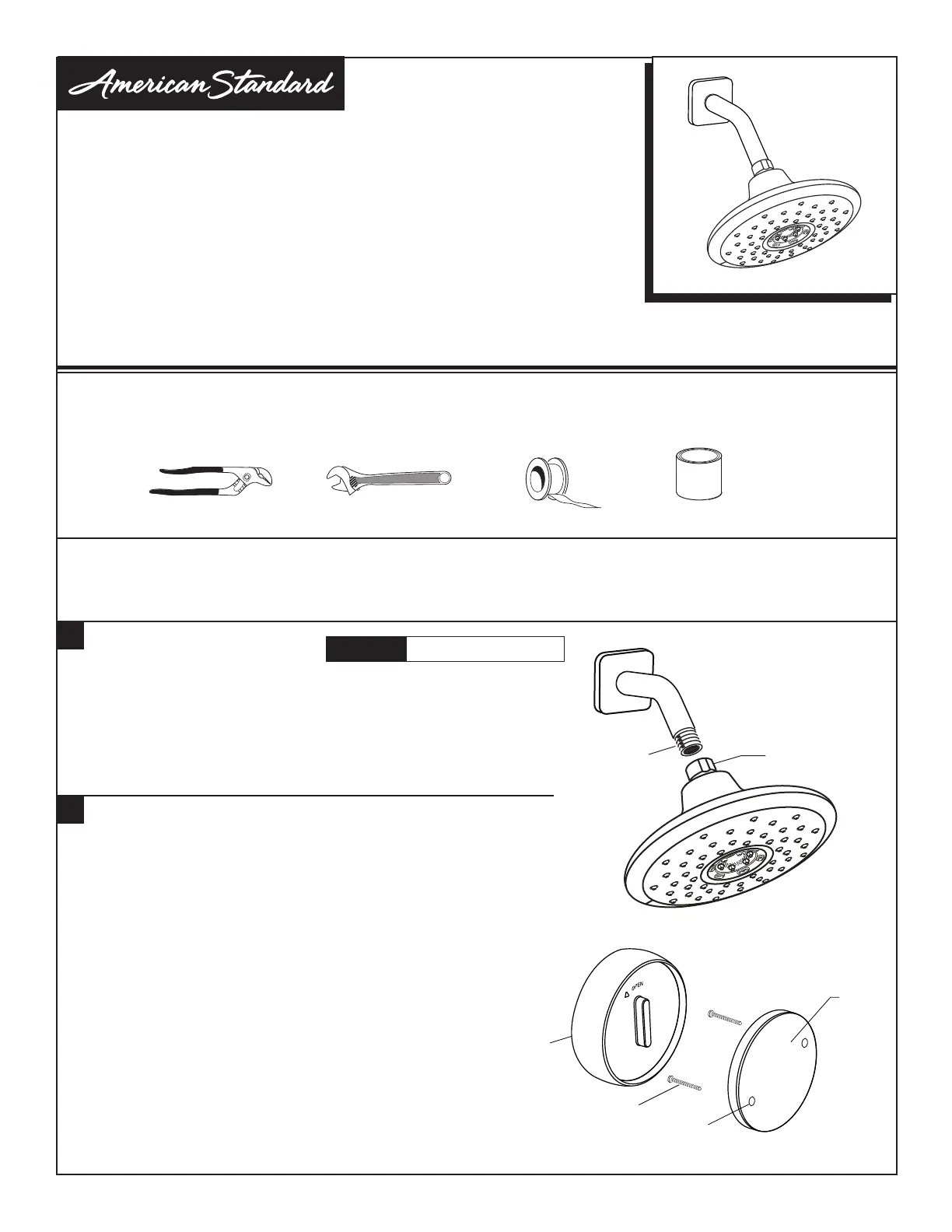

- 1 -
M965815 (8/17)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
CARE AND CLEANING
Do: Simply rinse the product clean with clear water, dry with a soft cotton flannel cloth.
Do Not: Clean the product with soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.
SPECTRA+ TOUCH
™
Shower HeadFor all Models
Plumbers' Grease
Tubing Cutter
Adjustable WrenchTeon Tape
Channel Locks
Thank you for selecting American Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
INSTALLATION
INSTRUCTIONS
1698.374
1695.374
Certied to comply with ANSI A112.18.1M
1
3
1
INSTALL SHOWER HEAD
SHOWER ARM WITH FLANGE
• Apply sealant or Teon tape to threads on SHOWER ARM (1).
• Thread SHOWER HEAD (3) onto the SHOWER ARM (1).
CAUTION
Protect finish on SHOWER HEAD
and TUB SPOUT when installing.
4
1
3
2
1a
INSTALL REMOTE (OPTIONAL)
• Identify desired remote location and wipe mounting surface
clean before installing the remote. Use the Yellow tag to
separate REMOTE BASE (1) from REMOTE FACE(4).
To install the remote follow either Option 1 or Option 2.
Option 1
• Peel the lm off of the double sided tape and install REMOTE
BASE(1) to the desired location. Once the REMOTE BASE(1)
is properly seated, install REMOTE FACE(4) by placing over
the REMOTE BASE (1) and gently pushing it forward.
Option 2
• Place REMOTE BASE (1) in the desired location and drill holes
using the HOLES (3) on the REMOTE BASE (1) as templates
and install SCREWS (2) (Make sure to not ruin the nish). Install
REMOTE FACE(4) by placing over the REMOTE BASE(1) and
gently pushing it forward.
