Installation

Instructions

M965035

1660 SERIES

Thank you for selecting American-Standard...the

benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--

please read these instructions carefully before you begin.

Certified to comply with ANSI A112.18.1

Recommended Tools

1

1

1

2

2

2

3

3

2

34

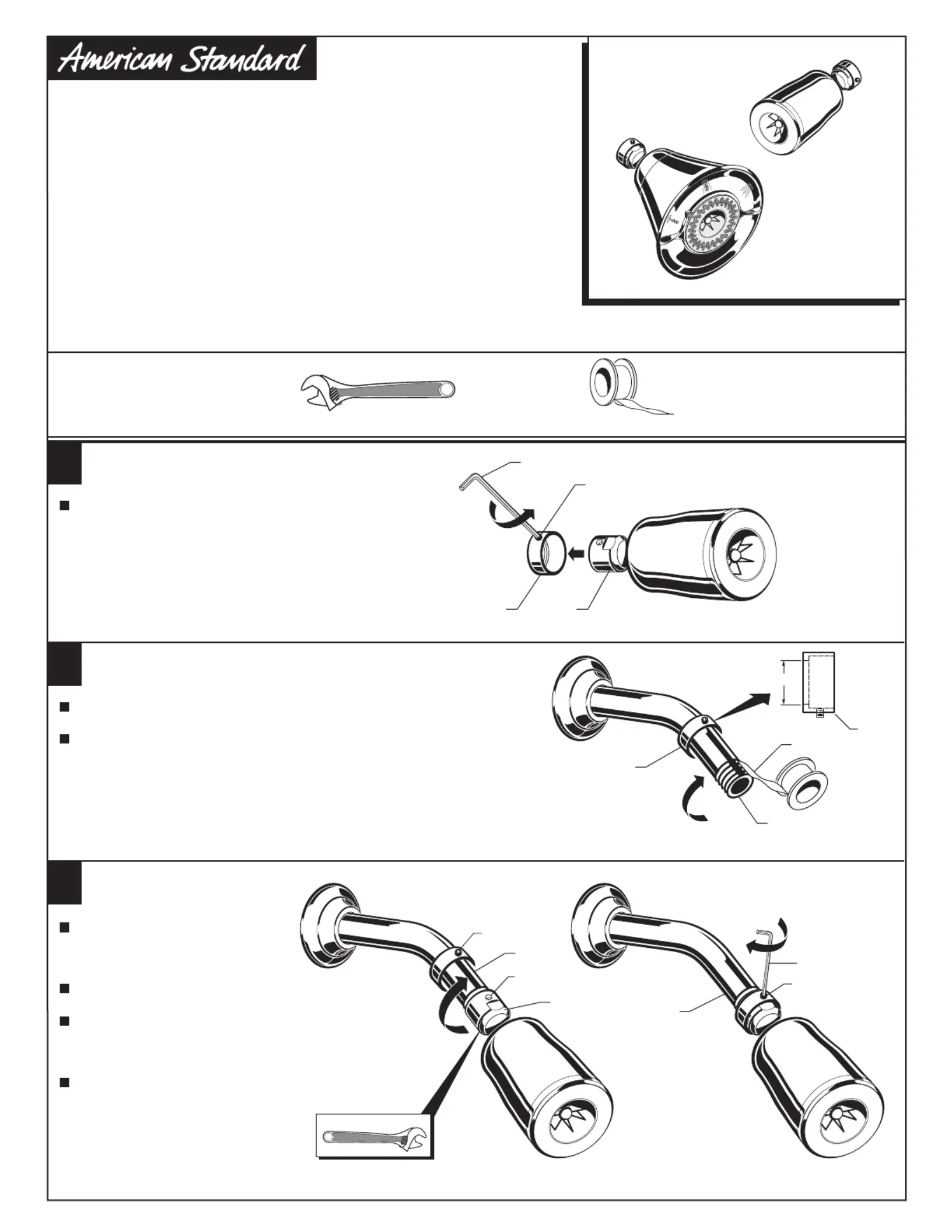

Use the HEX WRENCH supplied to loosen LOCK(1)

RING SET SCREW . Remove LOCK RING FROM(2)(3)

SHOWER HEAD .(4)

1

REMOVE LOCK RING (1660 SERIES)

Apply TEFLON TAPE or sealant to threads of SHOWER ARM .(1)(2)

Slide the small end of the LOCK RING onto SHOWER ARM . (3)(4)

2

SEAL SHOWER ELBOW

Teflon Tape

Adjustable Wrench

Adjustable Wrench

Tighten SHOWER HEAD (1)

to SHOWER ARM with(2)

adjustable wrench. FIG. 1.

Turn water on to shower and check for leaks.

Slide the LOCK RING over the shower(3)

connector aligning the withset screw

connector hole. FIG. 1.

Tighten the with untilset screwhex wrench

it’s tight against the SHOWER ARM . (2)FIG. 2.

3

INSTALL SHOWER HEAD

SMALL END

SET SCREW

CONNECTOR

HOLE

SET SCREW

HEX WRENCH

FIG.1FIG.2
