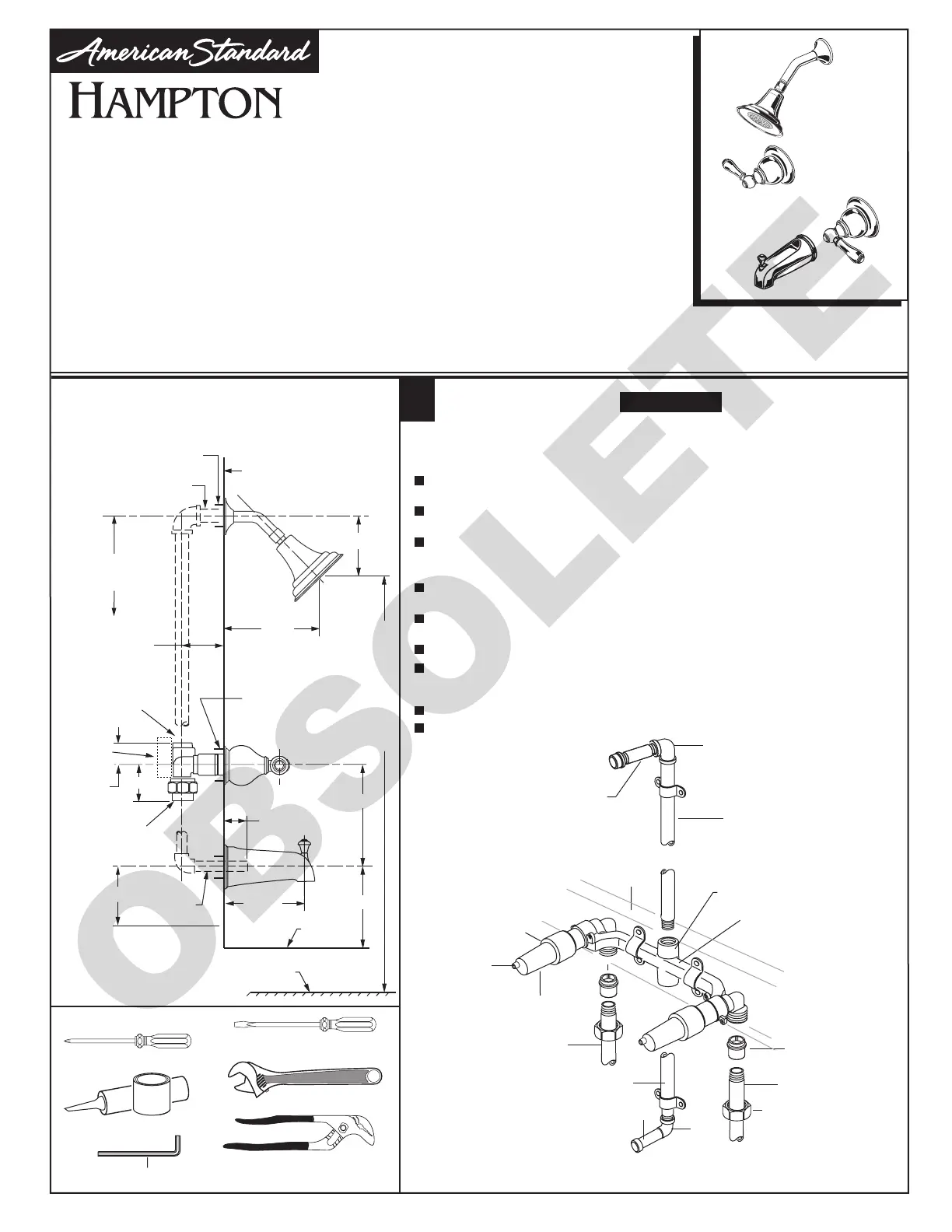

Installation

Instructions

US60406REV. 1.3

Certified to comply with ANSI A112.18.1M

FINISHED

WALL

1-1/4 DIA HOLE

4

TOP OF

TUB RIM

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 78''

1/2" N.P.T.

SHOWER ARM

BOTTOM OF TUB

ROUGHING-IN DIMENSIONS

5 REF.

7 REF.

18 OPTIONAL

NOTE: NO CONCEALED PIPING FURNISHED

2" MIN.

3-1/4" MAX.

74 FOR HEAD CLEARANCE

U.S. Patent No. 5,819,789

(2)1-13/16" DIA. HOLES

FOR VALVES ON 8"

CENTERS (1) 1-13/16"

DIA. HOLE FOR CENTER

TRANSFER VALVE

CROSS

BRACE

1-3/4

TYP.

1-3/4

UNION INLET

1/2"-14 N.P.T.

1/2" N.P.T. TO

SHOWER

Turn off hot and cold water

supplies before beginning.

CAUTION

1

ROUGHING-IN

SHOWER AND SPOUT

2

3

4

1

5

UNION

SWIVEL

"HOT"

"COLD"

7

COUPLING

NUT

IMPORTANT: DO NOT REMOVE PLASTER GUARDS (2) UNTIL STEP 2.

(SHR)

6

Recommended Tools

*Hex key Supplied with Fitting

Flat Blade Screwdriver

Adjustable Wrench

Channel Locks

Plumbers' Putty or Caulking

Phillips Screwdriver

TWO HANDLE BATH/SHOWER SET

5-1/8"

REF.

1-1/2" MIN.

4"

1/2" COPPER

8

10

9

7220.702

7220.712

7220.722

7220.732

7221.702

7221.712

CROSS

BRACE

"COLD"

"MAX WALL"

PLASTER

GUARD

M

A

X

W

A

L

L

M

I

N

1

-

5

/

8

"

D

E

E

P

M

A

X

W

A

L

L

M

I

N

1

-

5

/

8

"

D

E

E

P

Prepare water supplies per Roughing-in Dimensions. Apply sealing tape

to all threaded connections.

Install VALVE (1) at indicated height and depth. Make sure the outlet marked

"SHR" is pointing upward. Mount VALVE (1) to cross brace with wood screws.

Slip COUPLING NUT over supply pipe and thread UNION SWIVEL to pipe.

Connect HOT

(6) water supply to LEFT valve inlet and COLD (7) water supply

to RIGHT valve inlet.

Prepare SHOWER RISER (4) and ELBOW (3). Connect to TOP outlet, marked

"SHR" of VALVE BODY (1).

Prepare TUB FILLER PIPE (8), ELBOW (10) and roughing-in COPPER PIPE (9).

Connect to BOTTOM outlet of VALVE BODY (1).

Add cross braces to wall structure and secure piping.

Cap NIPPLES (5) and COPPER PIPE (9). Open supply lines and check for leaks.

Remove PLASTER GUARDS (2). Use spline on end of PLASTER GUARD (2) to

open both VALVES and check for leaks.

Close both valves and turn off water supplies. Replace PLASTER GUARDS (2).

Finish wall construction.

Thank you for selecting American-Standard...the benchmark

of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--

please read these instructions carefully before you begin.

7221.722

7221.732

7222.702

7222.712

7222.722

7222.732

OBSOLETE
