CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: For proper operation the recommended working pressure is between 25 psi at valve when flushing and 80 psi static.
!

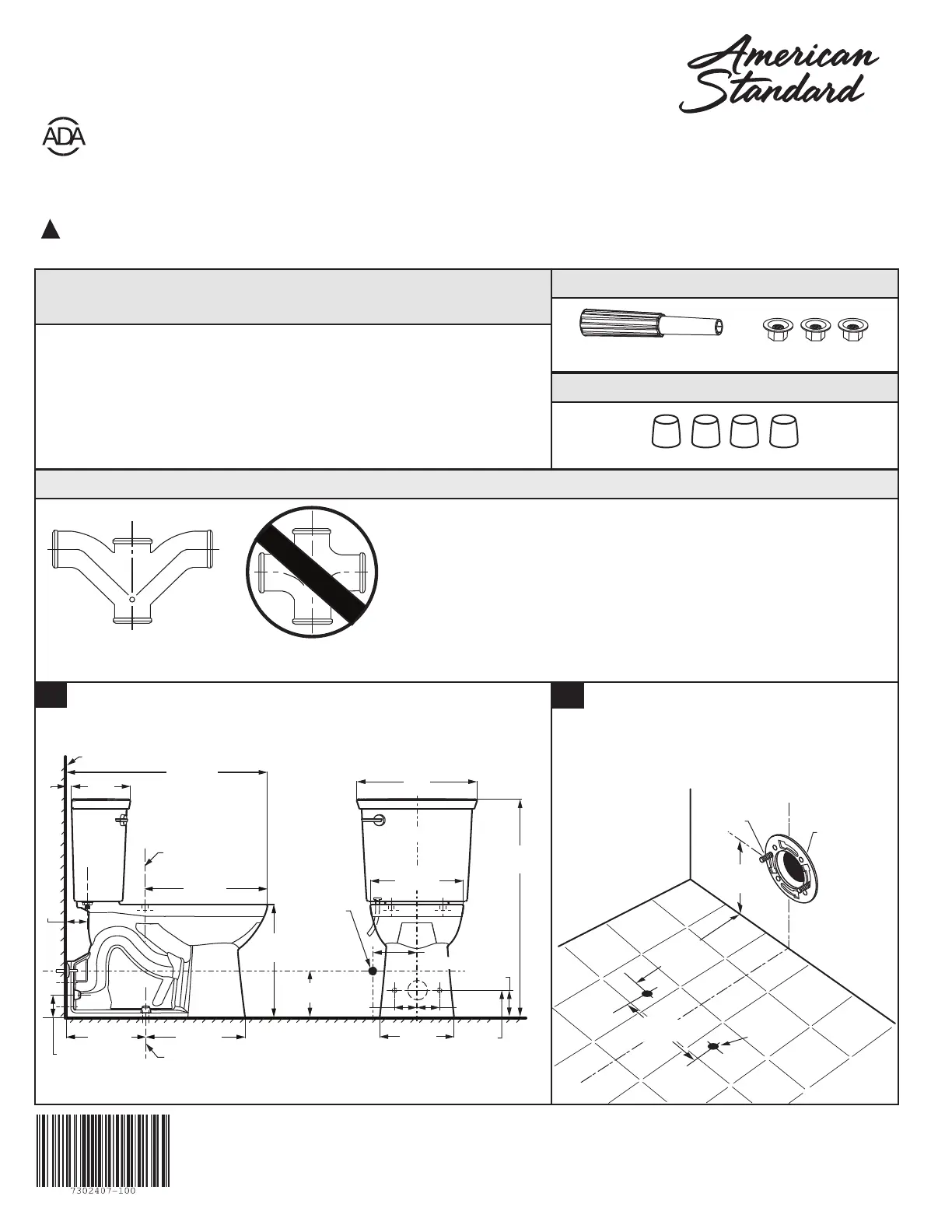

INSTALLATION INSTRUCTIONS
YORKVILLE
™
VORMAX
®
BACK OUTLET TOILET
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure
your installation conforms to local codes.
SAVE FOR FUTURE USE
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
7302407-100
1
DIMENSIONS (Nominal) NOTE: Distance from floor to closet
flange centerline (rough-in) must be 4" (102 mm) with flange
surface flush to 1/16" (16mm) max. beyond finished wall.
2
FLUSH TO
1/16" (16mm)
EXPOSED
CLOSET
FLANGE
CLOSET
BOLTS
6-5/8"
(168mm)
PILOT
HOLES
4"
(102mm)
13-3/8"
(340mm)
Install closet bolts in flange channel, turn 90°, and
slide into place 6" (152 mm) apart and parallel to
floor. (Use putty to hold bolts in place if necessary.)
Brace under flooring as needed and drill two
mounting pilot holes as shown.
INSTALL CLOSET BOLTS
C/L OF
WASTE
OUTLET
C/L
C/L OF 1/2" DIA HOLES 168mm (6-5/8") CENTERS
3" (76mm)
30-3/16"
(767mm)
8-7/8"
(225mm)
18-1/2"
(470mm)
13-3/8"
(340mm)
13-7/16"
(342mm)
17"
(432mm)
4" (102mm)
3/4" (19mm)
FINISHED WALL
C/L OF SEAT POST
HOLES 5-1/2"
(140mm CENTERS)
SUPPLY AS
REQ’D
11-3/16"
(284mm)
14"
(355mm)
32-13/16"
(833mm)
18"
(458mm)
3"
(76mm)
3"
(76mm)
4"
(102mm)
*6"
(152mm)
*9"
(229mm)
RECOMMENDED TOOLS AND MATERIALS
(NOT SUPPLIED)
EZ-INSTALL KIT INCLUDED WITH TANK
Attachment Handle
Nuts (3)
KIT INCLUDED WITH BOWL
BACK-TO-BACK INSTALLATION
Recommended fitting type for
back-to-back installations.
Depending upon your plumbing and venting conditions, the flow from the
toilet in a back-to-back installation may create a vacuum on the system
and draw water from the opposing bowl. The National Standards Plumbing
Code prohibits the use of a cross fitting for drainage as throw over is
possible. The code does approve a directional "Y" style fitting with proper
venting to direct the water downward and away from the other toilet.
When installed so top of seat is 17" to 19" (432mm to 483mm) from the nished oor. MEETS THE AMERICANS WITH DISABILITIES ACT
GUIDELINES AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USEABLE BUILDING FACILITIES - CHECK LOCAL CODES.
Putty Knife
Sealant
Hacksaw
Regular Screwdriver
Tape Measure
Adjustable Wrench
Carpenters Level
Flexible Supply Tube
Closet Bolts
Floor Lag Bolts
Wall Mounting Bolts
Neoprene or
Graphite Felt Gasket
(Yorkville Toilets)
Bolt Caps (4)
