Tempest 575H
Bekijk gratis de handleiding van American Audio Tempest 575H (8 pagina’s), behorend tot de categorie Niet gecategoriseerd. Deze gids werd als nuttig beoordeeld door 3 mensen en kreeg gemiddeld 4.8 sterren uit 2 reviews. Heb je een vraag over American Audio Tempest 575H of wil je andere gebruikers van dit product iets vragen? Stel een vraag
Pagina 1/8
American DJ®
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com
2/06
User Instructions
Unpacking: Thank you for purchasing the Tempest 575H™ by Ameri-
can DJ . Every Tempest 575H™ has been thoroughly tested and has ®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without first
contacting customer support.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Tempest 575H™ General Information
© ®American DJ - www.americandj.com - Tempest 575H™ Instruction Manual Page 2
The Tempest 575H™ carries a one year limited warranty. Please fill
out the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. num
-
ber must be clearly written on the outside of the return package. A
brief description of the problem as well as the R.A. number must also
be written down on a piece of paper included in the shipping carton.
If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our
customer support team on our toll free customer support number. All
packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
Tempest 575H™ Product Registration
© ®American DJ - www.americandj.com - Tempest 575H™ Instruction Manual Page 3
• Quality Stepping Motors for Smooth Transitions
• DMX-512 Protocol Compatible (Uses One DMX Channel)
• 6 Dichroic Colors Plus White
• Master/Slave Operation
• Internal Microphone with Volume Sensitivity Knob
• Several Built-In Programs
• Built-In Safety Breaker
• Optional MINI/C Remote Controller
Tempest 575H™ Features
© ®American DJ - www.americandj.com - Tempest 575H™ Instruction Manual Page 4
Introduction: This unit is a one channel, intelligent DMX centerpiece
effect. The Tempest 575H™ has a low profile design for clubs with low
ceilings, producing 6 dichroic colors plus white. Using 18 motors it cre-
ates solid and moonflower type beams that rotate and sweep across
a room. The Tempest 575H
™
comes with several built-in programs
that will randomly be activated by the low frequencies of an audio
source. This unit can run as a stand-alone sound activated unit, or in a
Master/Slave configuration. The optional MINI/C controller will operate
the blackout function.
For best results use fog or special effects smoke
to enhance the beams projections.
General Instructions: To optimize the performance of this product,
please read these operating instructions carefully to familiarize yourself
with the basic operations of this unit. These instructions contain impor-
tant safety information regarding the use and maintenance of this unit.
Please keep this manual with the unit, for future reference.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact American DJ Customer Support.®
Tempest 575H™ Introduction
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords and plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 11 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen on, or liquid has been spilled into the appli
ance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Tempest 575H™ Safety Precautions
© ®American DJ - www.americandj.com - Tempest 575H™ Instruction Manual Page 6© ®American DJ - www.americandj.com - Tempest 575H™ Instruction Manual Page 5
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your American DJ ®
Tempest 575H.™ The American DJ Tempest 575H®
™
is available in a
120v and 220v version. Because line voltage may vary from venue to
venue, you should be sure your unit voltages matches the wall outlet
voltage before attempting to operate you fixture.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav
-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter
-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a sin-
gle controller, as long as all fixtures and the controller are DMX com
-
pliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.

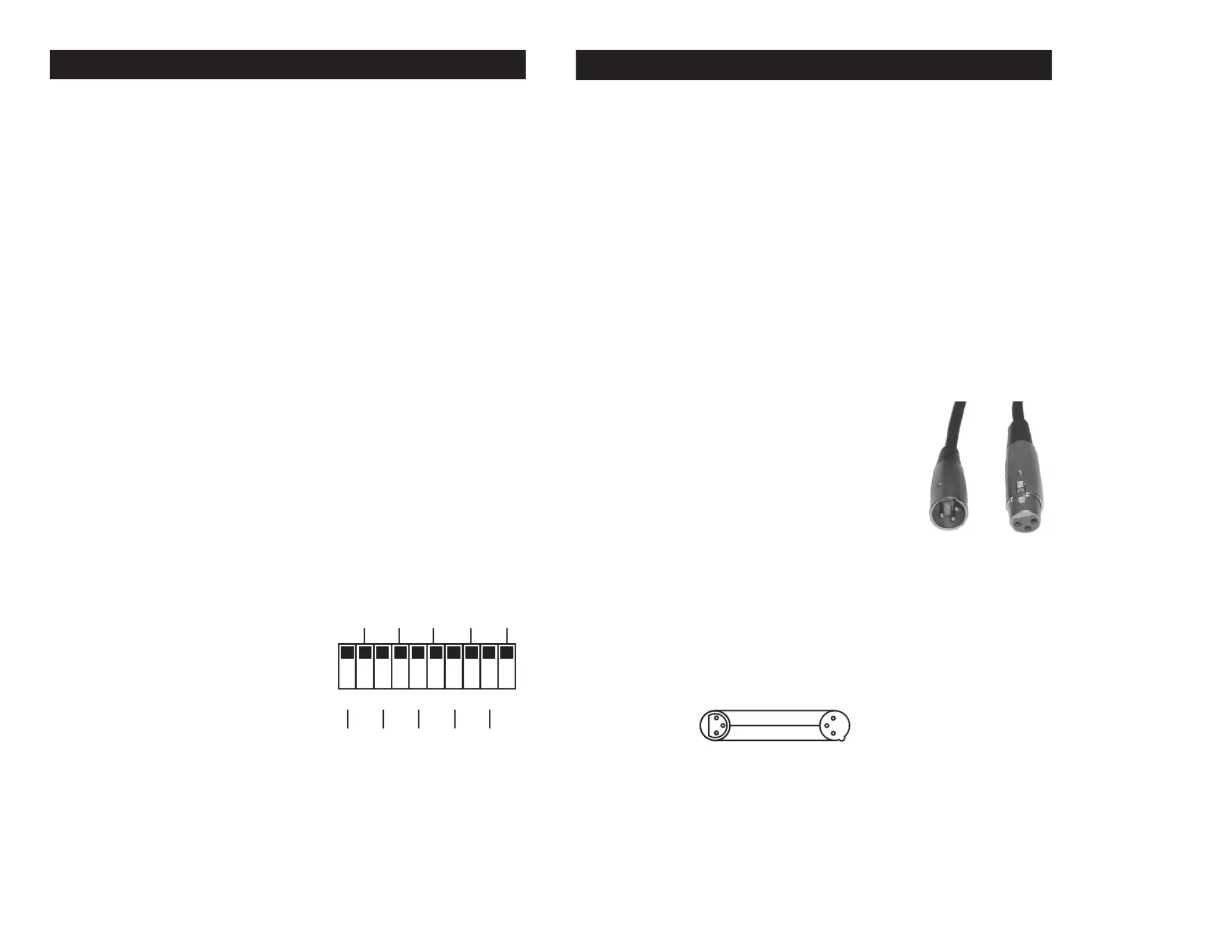

Dipswitches in DMX mode: This unit uses dipswitches to assign a
DMX address. Each dipswitch represents a binary value.
Dipswitch 1 address equals 1
Dipswitch 2 address equals 2
Dipswitch 3 address equals 4
Dipswitch 4 address equals 8
Dipswitch 5 address equals 16
Dipswitch 6 address equals 32
Dipswitch 7 address equals 64
Dipswitch 8 address equals 128
Dipswitch 9 address equals 254
Dipswitch 10 - Some units omit dipswitch 10. When a unit does
include dipswitch #10, it is usually used for special functions such as
Tempest 575H™ Set Up
ON
1 98765432
10
1282 8 32
256651641
SF
DMX CHANNEL
sound activation.
Assigning DMX Address: Each dipswitch has a preset value. A
specific DMX address is set by combining the dipswitches that sum
your desired value. For example: To achieve a DMX address of 21,
combine dipswitches 1, 3, and 5. Since dipswitch 1 has a value of 1,
dipswitch 3 has a value of 4, and dipswitch 5 has a value of 16, the
combination of the three create a DMX value of 21.
Set DMX address 21: Set DMX address 201:
Dip-switches # 1 = 1 Dip-switches # 1 = 1
3 = 4 4 = 8
5 = 16 7 = 64
= 21 8 = 128
= 201
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Tempest 575H™ can be controlled via DMX-512
protocol. The Tempest 575H™ is a one channel DMX unit. The DMX
address is set on the side panel of the Tempest 575H.™ Your unit and
your DMX controller require a standard 3-pin XLR
connector for data input and data output (Figure
1). If you are making your own cables, be sure to
use standard two conductor shielded cable (This
cable may be purchased at almost all pro sound
and lighting stores). Your cables should be made
with a male and female XLR connector on either
end of the cable. Also remember that DMX cable
must be daisy chained and can not be split.
Figure 1
Tempest 575H™ Set Up
Notice: Be sure to follow figures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
