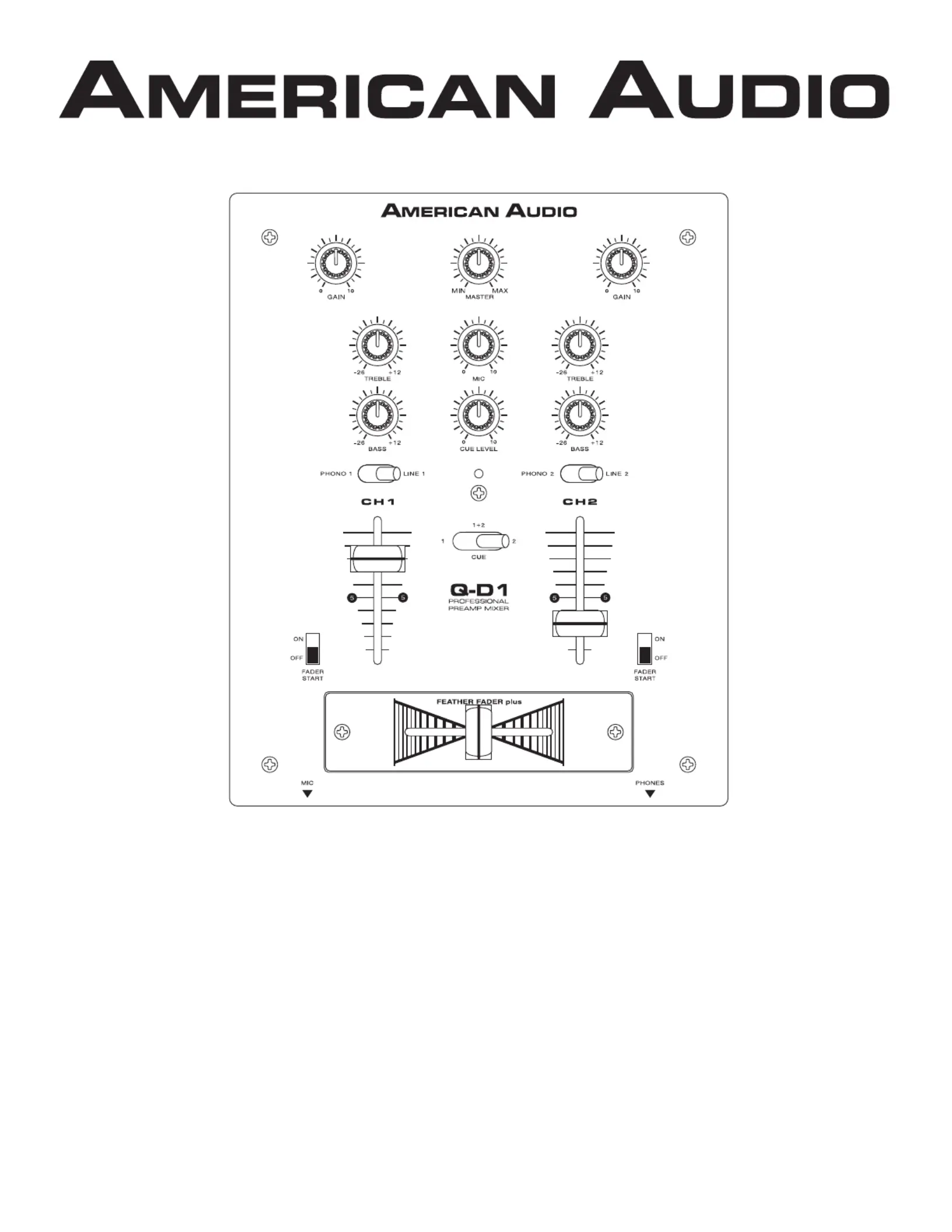

Q-D1
™
Professional Preamp Mixer
User Instructions
American Audio
4295 Charter Street
Los Angeles Ca. 90058
www.AmericanAudio.us
Rev. 4/05
© ®American Audio - www.americandj.com - Q-D1™ Instruction Manual Page 2
MAIN FEATURES....................................................................................................................................2
WARRANTY REGISTRATION..................................................................................................................2
SAFETY PRECAUTIONS........................................................................................................................3
ELECTRICAL PRECAUTIONS................................................................................................................4
SAFETY PRECAUTIONS........................................................................................................................5
UNPACKING...............................................................................................................................6
INTRODUCTION....................................................................................................................................6
SET-UP PRECAUTIONS.........................................................................................................................6
QUICK START.........................................................................................................................................7
FUNCTIONS AND CONTROLS
FRONT PANEL............................................................................................................................8
REAR PANEL............................................................................................................................10
TYPICAL SET-UP DIAGRAMS...............................................................................................................11
CLEANING......................................................................................................................14
CROSS FADER REPLACEMENT..........................................................................................................14
WARRANTY.........................................................................................................................................15
SPECIFICATIONS.......................................................................................................................16
Q-D1™ CONTENTS
Q-D1™ MAIN FEATURES
• Fader “Q” Start • Independent Gains Per Channel
• Q-Start Compatible (for use with compatible • Front Access Headphone Jack
(American Audio CD Players ) • Low Residue Resistance Crossfader
• Equipped with high quality Crossfader • 2 Band EQ per channel
(Replaceable) • 2 Phono, & 2 Line Level Inputs
• High output to headphones • Two Turntable Ground Prongs
• Cue Mixing • Front Access 1/4” Mic Jack
• Extremely clean signal to noise ratio • Record Out
• Power Switch
The Q-D1™ carries a one year limited warranty. Please fill out the enclosed warranty card to validate
your purchase. All returned service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the
outside of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper and included in the shipping container. If the unit is under
warranty, you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number
by contacting customer support at (800)
322-6337.
Q-D1™ WARRANTY REGISTRATION
Please Note: Specifications and improvements in the design of this unit and this manual are subject
to change without any prior written or published notice.
For service parts visit http://parts.americandj.com
© ®American Audio - www.americandj.com - Q-D1™ Instruction Manual Page 3
NOTE: This product satisfies FCC
regulations when shielded cables
and connectors are used to con
-
nect the unit to other equipment.
To prevent electromagnetic inter
-
ference with electrical appliances
such as radios and televisions, use
shielded cables and connectors
for connections.
WARNING: TO PREVENT FIRE OR ELECTRIC
SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN, LIQUIDS, OR MOISTURE
CAUTION: TO PREVENT ELECTRIC SHOCK
DO NOT USE THIS (POLARIZED) PLUG
WITH AN EXTENSION CORD, RECEPTACLE,
OR OTHER TYPE OF ELECTRICAL OUTLET
UNLESS THE WIDE BLADES CAN BE
CAREFULLY INSERTED INTO A MATCHING
WIDE SLOT.
ATTENTION: POUR PREVENIR LES CHOCS
ELECTRIQUES NE PAS UTILISER CETTE
FICHE POLARISEE AVEC UN PROLON-
GATEUR, UNE PRISE DE COURANT OU
UNE AUTRE SORTIE DE COURANT, SAUF
SI LES LAMES PEUVENT ETRE INSEREES A
FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.
Q-D1™ ELECTRICAL SAFETY PRECAUTIONS
POWER SUPPLY INLET
POWER SUPPLY
• This unit requires an outboard AC 9v power
supply.
• Be sure to only use the included power
supply.
• This unit may be operated in different volt-
age areas with an adequate power supply
available from American Audio
®.
The serial and model number for this unit is
located on the rear panel. Please write down
the numbers here and retain for future refer
-
ence.
Model No._____________________________
Serial No._____________________________
Purchase Notes:
Date of Purchase_______________________
Dealer Name__________________________
Dealer Address_________________________
_____________________________________
_____________________________________
Dealer Phone__________________________
