DX Hub Getting Started Guide
AP11154 Issue 3
DX HUB
Getting Started Guide
The DX Hub is a remote audio expansion hub that can be connected to an Allen
& Heath , Avantis, or AHM system, or to a dLive system fitted with a gigaACE SQ
card. It provides 4 DX ports to connect to DX Expanders, each port carrying
32x32 channels of 96kHz audio .
One DX32 or up to two DX168/DX164-W/DX012 expanders can be connected to
each DX port allowing up to 128 remote inputs / outputs to be added to the
system. With dLive, multiple DX Hubs can be used for further expansion or for
dual redundan . cy
dLive requires firmware V1.6 or higher and a gigaACE
I/O Port card to work with the DX Hub.
SQ requires firmware V1.2 or higher to work with the DX
Hub.
The DX Hub can be used free standing, or up to two units can be installed in a
1U rack space using our optional rack ear kit which can be FULLU-RK19X,
ordered from your A&H dealer.
Connections and routing
Refer to the or documents at DX System Guide SQ SLink Connectivity
www.allen-heath.com for details of supported connections and example
diagrams.
Use Cat5e or higher STP cables with a maximum length
of 100m per connection.
Use the mixer screen or AHM screen to patch signals to and from I/O Assign
the DX Hub.
Each DX port on the DX Hub has 32x32 available channels:
SLink I/O Port or
DX 1
01 32-
DX 2
33 64-
DX 3
65 96-
DX 4
97 128-

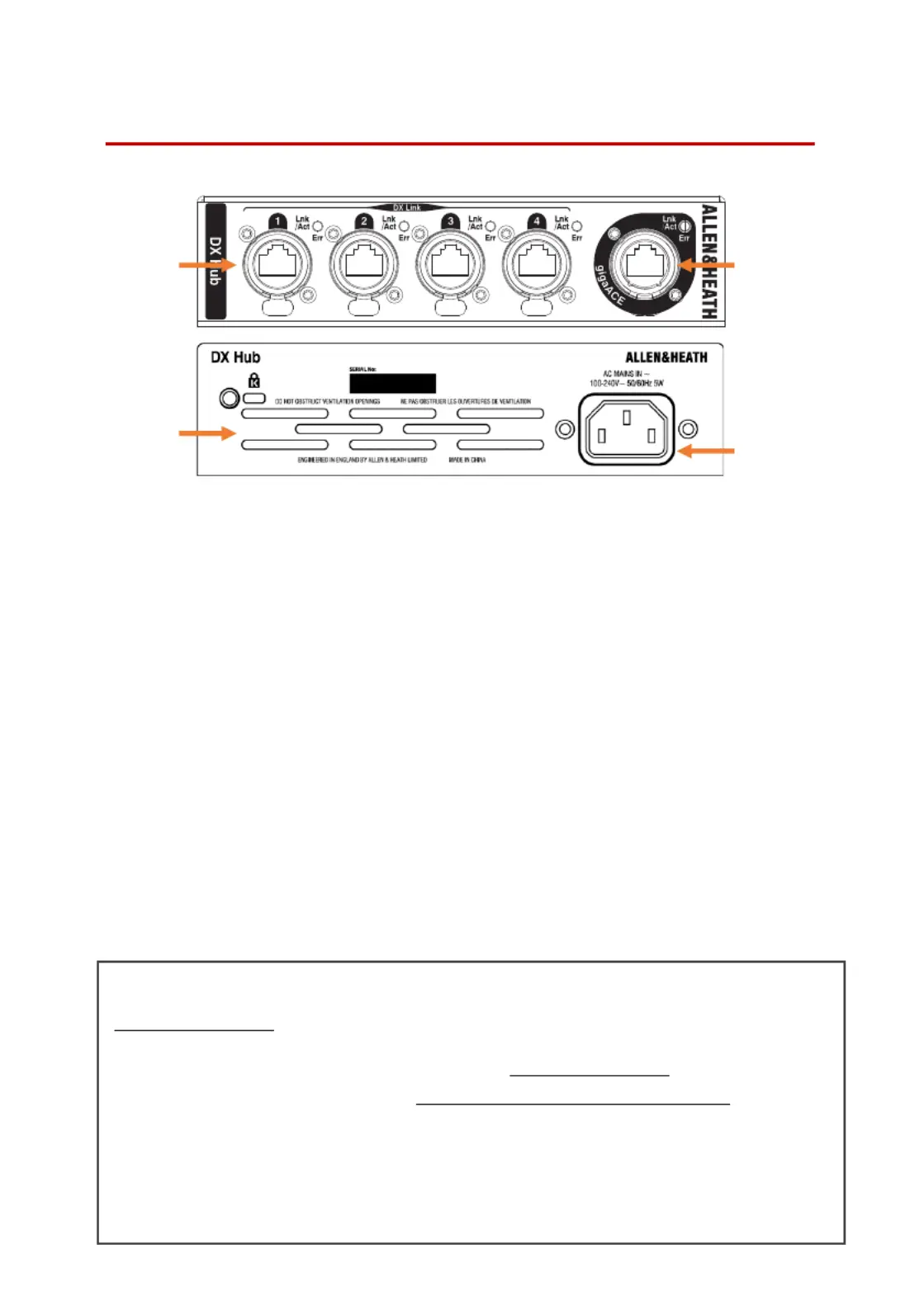

Front and rear panels
DX Link 1-4 Four DX ports each capable of 32x32 channels of 96kHz
audio. Each DX socket can be connected to 1 DX32 or up to 2 DX168/DX16-
4W/DX012 expanders. A status LED flashes yellow for Link activity and
illuminates red to indicate a stream error.
gigaACE For connection to an SQ / Avantis / AHM SLink port, or gigaACE
card in a dLive / Avantis system. The gigaACE connection provides 128x128
channels of audio at 96kHz. A status LED flashes yellow for Link activity and
illuminates red to indicate a stream error.
Vents Ensure good ventilation at the rear of the DX Hub. Avoid obstruction
of vents while operating. Avoid dirt or liquid ingress.
Power IEC connector and fuse for the built-in universal voltage power
supply unit. This accepts voltages from 100 to 240V AC 50/60Hz. Check that
you have received the correct mains lead for your territory.
Read the Safety Instructions Sheet included with the product and the information printed on the panel before operating.
A limited one year manufacturer’s warranty applies to this product, the conditions of which can be found at:
www.allen-heath.com/legal
By using this Allen & Heath product and the software within it you agree to be bound by the terms of the relevant End
User Licence Agreement (EULA), a copy of which can be found at: www.allen-heath.com/legal
Register your product with Allen & Heath online at: http://www.allen-heath.com/support/register-product/
Check the Allen & Heath website for the latest documentation and software updates
ALLEN HEAT&H
H
H
HH
Copyright © 20 Allen & Heath. All rights reserved.21
