M- -WAVES3 fitting note DL
1
AP10844 Issue 1
M- -WAVES3 fitting note DL
M-DL-WAVES3 is one of several audio networking options that can be fitted to an
Allen & Heath dLive I/O Port. It provides a 128x128ch 48/96kHz interface to the
Waves SoundGrid networking and processing platform.

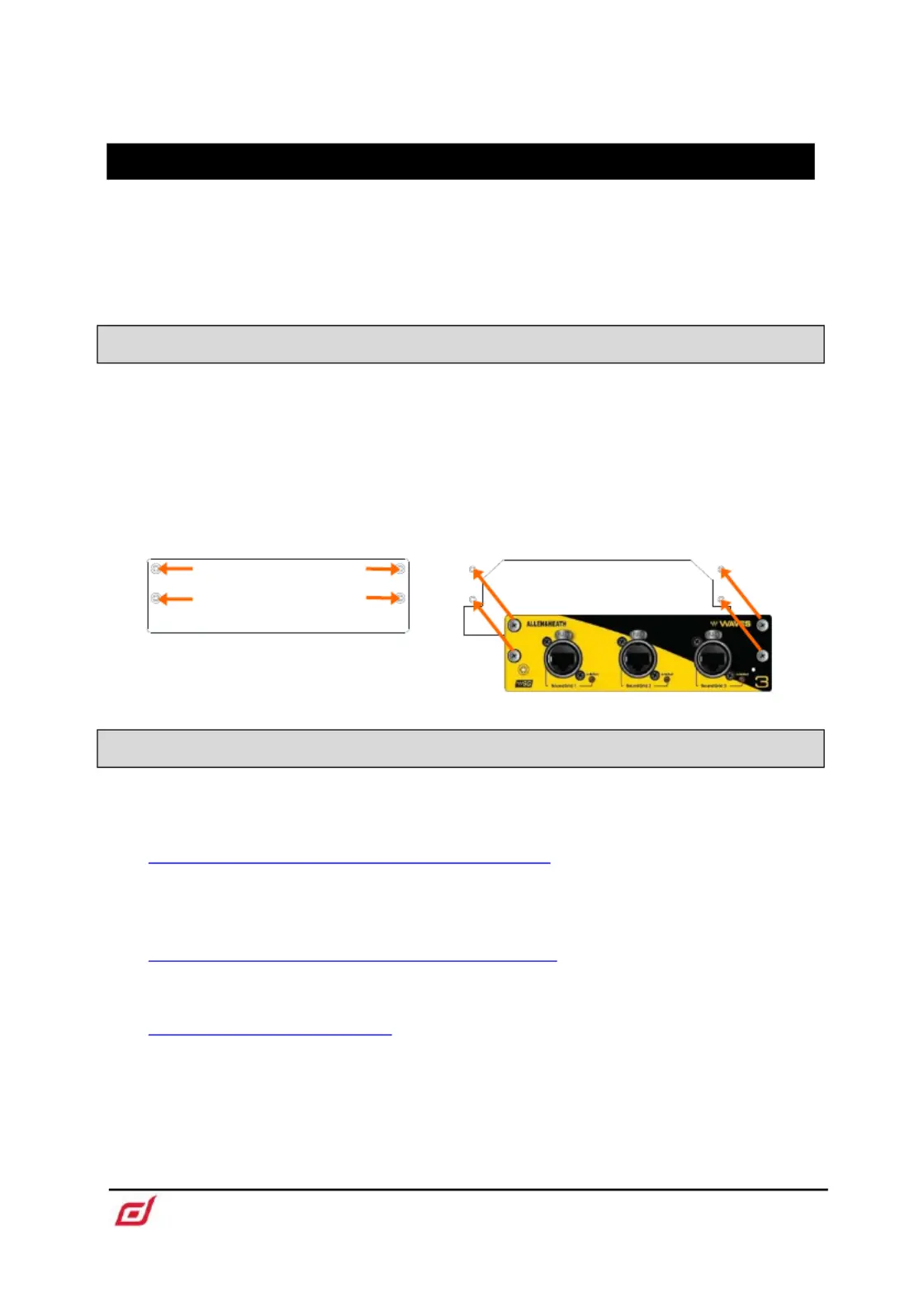

Fitting the card
1. Switch the system off.
2. Remove the 4 screws securing the I/O Port blank panel on the dLive
MixRack or Surface.
3. Slide the card into the slot and press it firmly into the mating
connector.
4. Secure the card by tightening the 4 captivated thumb screws.
Software and firmware
Go to the Waves website to learn more about Waves for the Allen & Heath
platform:
http://www.waves.com/live-sound/allen-heath
Download further documentation, follow the instructions, set up the
hardware and install the card driver and software:
http://www.waves.com/downloads/allen-heath
Download and install the latest version of dLive firmware:
http://www.allen-heath.com
M- -WAVES3 requires dLive firmware V1.3 or higher. DL
2
3
M- -WAVES3 fitting note DL
2
AP10844 Issue 1

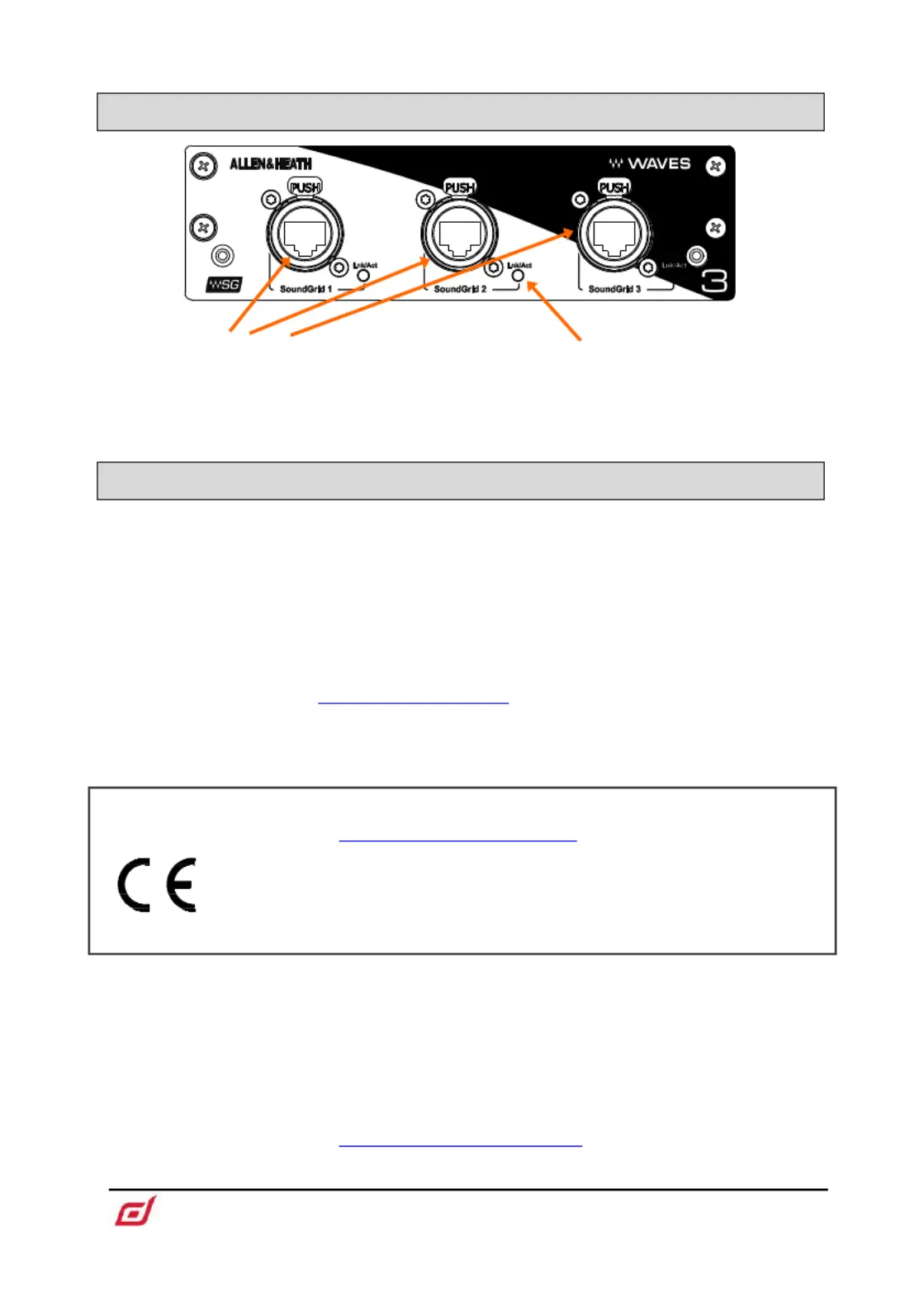

Front panel
Setting clock and patching signals
Use the dLive screen to patch signals from or to the I/O Ports. I/O
Use the screen to select the clock source. Set MixRack Audio Audio Sync/ /
this to Internal on the master system, to the relevant I/O Port on all other or
networked (clock slave) systems.
For more information on dLive setup and functions please
refer to the dLive Firmware Reference Guide available for
download at www.allen-heath.com.
A limited one year manufacturer’s warranty applies to this product, the conditions
of which can be found at: www.allen-heath.com/legal.
This product complies with the European Electromagnetic
Compatibility directive 1 U and the European Low Voltage 20 4/30/E
directive / U. 2014 35/E
Copyright © 2016 Allen & Heath. All rights reserved.
ALLEN HEATH &
Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
http://www.allen-heath.com
Link Status
Flashes to indicate network
activity
SoundGrid ports
A built-in Gigabit switch with 3 locking EtherCon
ports for connecting up to three devices directly
