Pagina 1/5
UTC-307 Startup Manual 1
UTC-307 Computer / / 电脑 微型计算机
Startup Manual
Packing List
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website at:
http://service.advantech.com.tw/eservice/
This manual is for the UTC-307 series Rev. A.
Part No. 2048030700
Printed in China
1st Edition
December 2018
Before you start to set up UTC-307, please make sure that the
following items have been shipped:
UTC-307
• 1 x UTC-307 unit
• 1 x Power Adaptor 12V/3A (36W ITE adaptor)*[1]
If any of these items are missing or damaged, please contact
your distributor or sales representative immediately.
*[1] There is no Power Adapter included for PoE SKU.
Caution!
* UTC-307 (PoE) – A PoE Powered Device (PD)
is a device powered by a PSE and thus consumes
energy. Always use Power Sourcing Equipment
(PSE) which follows IEEE 802.3at PoE standard,
also known as PoE+ or PoE plus, which provides
up to 30W of DC power output. Only 25.5 W input is
assured to be available at the powered.
The equipment is only to be connected to PoE
networks without routing to outside plants.
Family models:
• UTC-307GP-ATB0E
• UTC-307GP-ATB1E
• UTC-307GP-ATW0E
• UTC-307GP-ATW1E
• UTC-307GG-ATB0E
• UTC-307GG-ATB1E
• UTC-307GG-ATW0E
• UTC-307GG-ATW1E
Technical Support and Assistance
Visit the Advantech web site at http://support.advantech.
comwhereyoucanndthelatestinformationaboutthe
product.
Contact your distributor, sales representative, or Advan-
tech’s customer service center for technical support if you
need additional assistance. Please have the following
information ready before you call:
• Product name and serial number
• Description of your peripheral attachments
• Description of your software (operating system, version,
application software, etc.)
• A complete description of the problem
• The exact wording of any error messages
VESA mount dimension: 75 mm x 75 mm
Screw size: M4*4L R/S(W) D=9 H=3
2 UTC-307 Startup Manual
Processor
System
CPU
Intel® Celeron® N3350
(UTC-307G)
Intel® Pentium® N4200 (
UTC-307G)
Base Frequency 1.10 GHz (Dual-Core) 1.10 GHz (Quad-Core)
Cache L2 Cache 1MB L2 Cache 2MB
Memory
1 x SO-DIMM DDR3L 1866 MHz
up to 8 GB
1 x SO-DIMM DDR3L 1866 MHz
up to 8 GB
Storage 1 x M.2 2242 SSD
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
I/O ports
2 x RS-232 COM (COM2 RS-232/422/485 with surge protect)
2 x USB3.0 / 2 x USB3.0 (optional)
2 x Gigabit Ethernet ports (1 with PoE)
Stereo Speaker 1 x 2W
Bus expansion 1 x M.2 key2230, 1 x M.2 key2242
Mounting VESA 75 x 75 mm
Dimensions (W x H x D) 183 x 120 x 31 mm
Weight 0.95kg (2.09lbs)
OS Support
Win 10 IoT Enterprise 64bit
Android 6.0
Linux Ubuntu 18.04
Environmental
Specications
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F) 0 ~ 40 °C (32 ~ 104 °F)
Relative Humidity 10 ~ 95% @ 40 °C non-condensing
Vibration 1G*
Shock 10G peak acceleration (11 msec. duration)
Certication CE, FCC, CB, UL, CCC, BSMI
Front Panel Protection IP 65 Compliant
Power Supply
DC Input Rating 12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter
PoE Optional IEEE 802.3at/30W
Power consumption
Typical: 10W
Max.: 20W
LCD Display
Size/Type 7” TFT LCD with LED backlight
Max.Resolution 800 x 480
Max. Color 262K
Pixel Pitch (um) 192.6 x 179
Brightness (cd/m2) 450
View Angle 140°/ 160°
Touch Screen
Option
(PE/GE)
Type Projected Capacitive. Glass Panel
Light Transmission 80% ± 5% / 90%
Controller USB Interface
Specications
UTC-307 Startup Manual 3

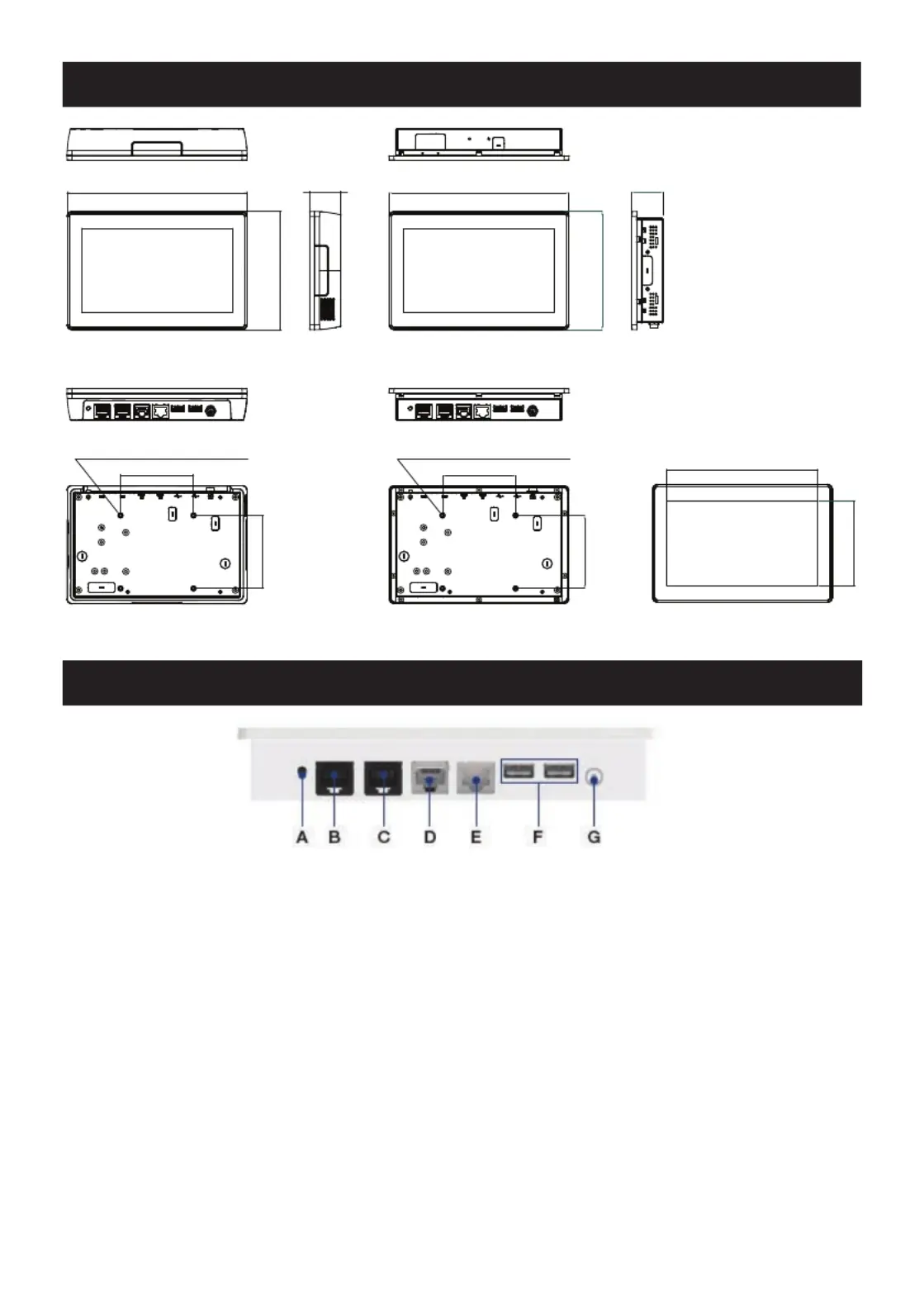

Fully- Integrated I/O
A.
POWER BUTTON E. LAN/PoE Port
B.
COM W/RS-232
F. USB 3.0 x 2
C.
COM W/RS-232/422/485
G. DC Power Jack
D.
LAN Port
* UTC-307 PoE SKU – A PoE Powered Device (PD) is a device powered by a PSE and thus consumes energy.
Please do take a Power sourcing equipment (PSE) which follows IEEE 802.3at PoE standard, also known as PoE+ or PoE
plus, provides up to 30W of DC power output. Only 25.5 W input is assured to be available at the powered device as some
power dissipates in the cable.
Thecustomercanchangethecongurationonlywhentotalpowerinputisunder25.5W.
185
121.45
75
75
32.25
185
121.45
75
75
32.25
75X75 VESA M4 SCREW hole 3mm depth 75X75 VESA M4 SCREW hole 3mm depth
CUT OUT
173.5
110
UTC-307 Dimensions
