ITA-360 Startup Manual 1
Before you begin installing your IPC, please make sure that
the following items have been shipped:
1. 1 x ITA-360 series IPC
2. 1 x Accessary box
3. 2 x Mounting brackets
4. 1 x Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note : Acrobat Reader is required to view any PDF
le.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
Standard Functions
• Chip and chipset: Intel 12th & 13th Generation Desktop
Processor with H610E or R680E
• BIOS: AMI SPI 256 MB Flash
• Memory: Max to 64GB with dual SO-DIMMs
• Display: Intel UHD Graphics 770
• Triple display mode:
- Resolution of single display up to 3840 x 2160 @ 30Hz
- Resolution of triple display up to 1920 x 1080 @ 30Hz
• Storage: Supports 1 x M-Sata slot 1 x M.2 B-key slot and
2 x 2.5” SSD
• Expansion slot:
- Supports 1 x Mini PCIe slot
- Supports 2 x PCI slots(only ITA-360EV1-00A1 support)
ITA-360 Series Fanless Compact Embedded IPC with
Intel 12th & 13th Generation Desktop Processor
Startup Manual
System Specications
• Ethernet: 4 x 100/1000/2500M Ethernet
• USB: 4 x USB 3.0
• Display: 2 x HDMI
• Serial port:
- For ITA-360LV1-00A1:
2 serial ports,with RS-232/422/485;
- For ITA-360V1-00A1:
2 serial ports,with RS-232/422/485;
other 2 serial ports, with RS-232 only
- For ITA-360EV1-00A1:
8 serial ports,with RS-232/422/485;
other 2 serial ports, with RS-232 only
• Digital I/O: 24 bit DIO(ITA-360EV1-00A1)
• Audio: 1 x speaker out, 1 x line in
Mechnical and Environment
• Dimensions (W x H x D):
- ITA-360LV1-00A1: 185 x 57 x 220 mm
- ITA-360V1-00A1: 185 x 70 x 220 mm
- ITA-360EV1-00A1: 185 x 120 x 220 mm
• Voltage input: DC 9 ~ 36 V input
• Working temperature:
-25 ~ 60° C (-13 ~ 140° F) (with
0.7m/s air ow)
Jumper Setting
The board has a number of jumpers that allow you to congure
your system to suit your application.
The table below lists the function of each of the jumpers.
Jumper Setting
Name Function
JCOMS1 Clear CMOS setting
VCCGPIO1 GPIO voltage setting
PSON1 Power on mode setting
JSETCOM 1~X COM mode setting
Specications(Cont.)
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the ITA-360 Series.
Part No. 2041A36000
Print in China
1st Edition
January 2024
Specications
Jumpers

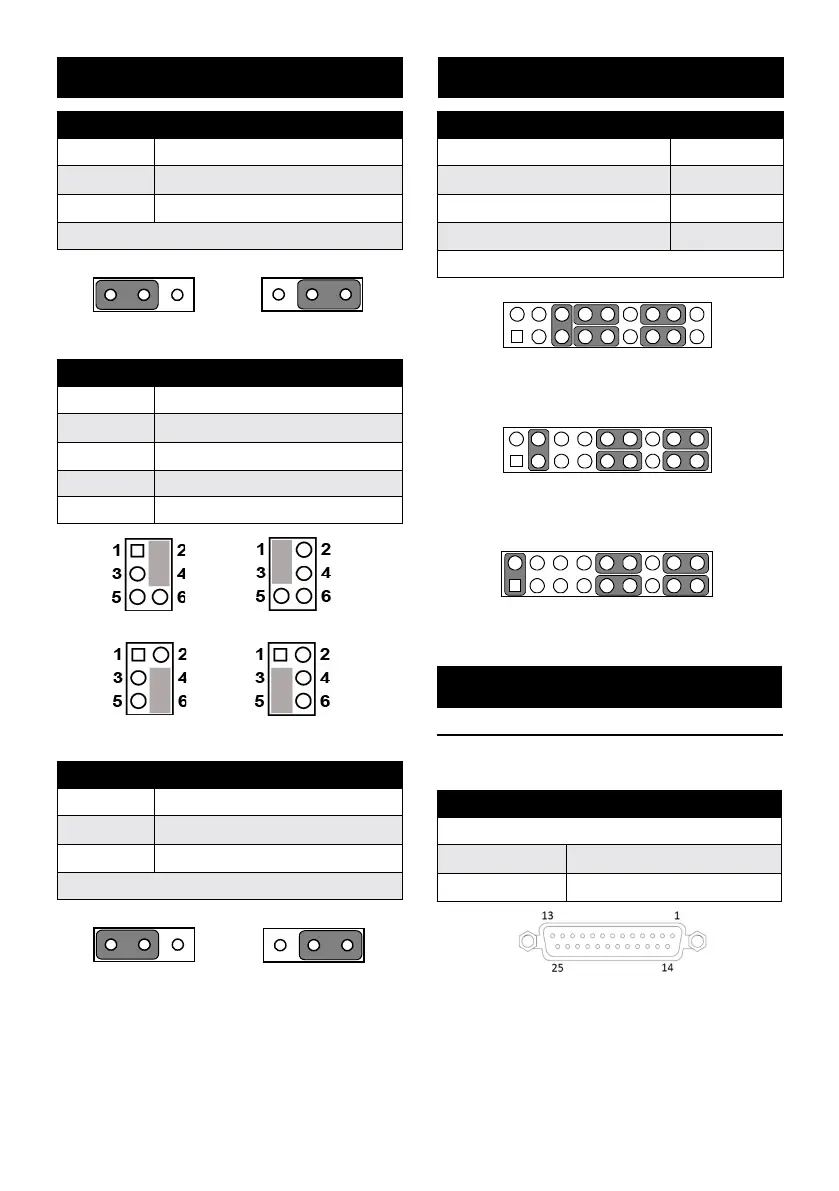

2 ITA-360 Startup Manual
JCOMS1: Clear CMOS Setting
Pins Setting
1-2 Default*
2-3 Clear CMOS setting
* Default setting
Default Setting Clear CMOS Setting
VCCGPIO1: GPIO Voltage Setting
Pins Setting
2-4 +V3.3_SB
1-3 +V5_SB (Default)
4-6 +V3.3
3-5 +V5
+V3.3_SB +V5_SB
+V3.3 +V5
PSON1: Power On Mode Setting
Pins Setting
1-2 AT mode
2-3 ATX mode*
* Default setting
AT Mode ATX Mode
1 2 3
1 2 3
1 2 3
1 2 3
JSETCOM 1~X: COM Mode Setting
Pins Setting
(5-6),(7-9),(8-10),(13-15),(14-16) RS232 mode*
(3-4),(9-11),(10-12),(15-17),(16-18) RS422 mode
(1-2),(9-11),(10-12),(15-17),(16-18) RS485 mode
* Default setting
RS-232 Mode
RS-422 Mode
RS-485 Mode
DIO Connector Denition
The IPC has a DB25 DIO connector, which provides
24-channel digital input-output connector. The denition is
as follow:
DIO
PinDenition
Pin 1 - Pin 24 GPIO 1-24
Pin 25 GND
DIO Connector
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 17
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 17
1 3 5 7 9 11 13 15 17
2 4 6 8 10 12 14 16 18
1 3 5 7 9 11 13 15 171 3 5 7 9 11 13 15 17
1 3 5 7 9 11 13 15 17
Jumpers(Cont.)
Jumpers(Cont.)
ConnectorDenition
