EKI-2712G-4FPI
Unmanaged Redundant Industrial Switch
The EKI-2712G-4FPI is a new generation of
unmanaged switches. With 8 RJ-45 and 4 SFP
ports, they provide up to 30 watts per port to fulfill
high power consumption PD (Power Device)
requirements.
Before installation, please make sure that you
have received the following:
•
1 x EKI-2712G-4FPI Unmanaged Switch
•
1 x Wall mounting bracket with screws
•
1 x DIN-rail Mounting Bracket and Screws
•
1 x Startup manual
•
If anything is missing or damaged, contact your
distributor or sales representative immediately.
For more detailed information, please refer to the
full manual which can be found on the Advan-
tech’s website.
General
•
Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.3az, 802.3ab
•
LAN: 10/100/1000 Base-TX
•
SFP: Up to 110 km (depends on SFP)
•
Ethernet RJ-45 Distance: Up to 100 m
•
Connectors:
8 x 10/100/1000Base-T/TX RJ-45
4 x SFP (mini-GBIC)
•
Switch Architecture: Store and Forward
•
Power Requirements: 48~55 V
DC
, redundant
Power Input with reverse polarity protection.
•
Power Consumption: 15 Watts Max. @48V
DC
(System)
•
Power Budget: 120W
•
Dimensions (W x H x D): 74 x 152 x 105 mm
•
Enclosure: IP30
•
Operating Temperature:
-40 ~ 75°C (-40 ~ 167°F)
•
Storage Temperature: -40 ~ 85°C
(-40°F ~ 185°F)
•
Operating Humidity: 10 ~ 95%
(non-condens- ing)
•
Storage Humidity: 0 ~ 95%(non-condensing)
•
Safety: UL61010
• EMC: CE, FCC Class A
•
Warranty: 5 years
•
Altitude: up to 2000 m
Specifications
Overview
Packing List
User Manual
STARTUP MANUAL
EKI-2712G-4FPI Startup Manual 1
Company Address
ADVANTECH CO., LTD. (研華股份有限公司)
No.1, ALLEY 20, LANE 26, RUEIGUANG RD,
NEIHU DISTRICT, TAIPEI 114. TAIWAN
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/products/unmanaged-
industrial-ethernet-switches/sub_1-2mlk0j
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-2712G-4FPI
1st Edition
June 2018
EKI-2712G-4FPI
Warning! Do not block air ventilation holes.
Avertissement ! Ne bouchez pas les orifices
de ventilation
Warning! Use dry cloth for cleaning
Avertissement ! Nettoyez avec un chiffon
sec
Warning! This is open type equipment and should be
installed in a suitable enclosure
Avertissement ! Cet appareil est de type
ouvert. Il doit être installé dans une
enceinte appropriée

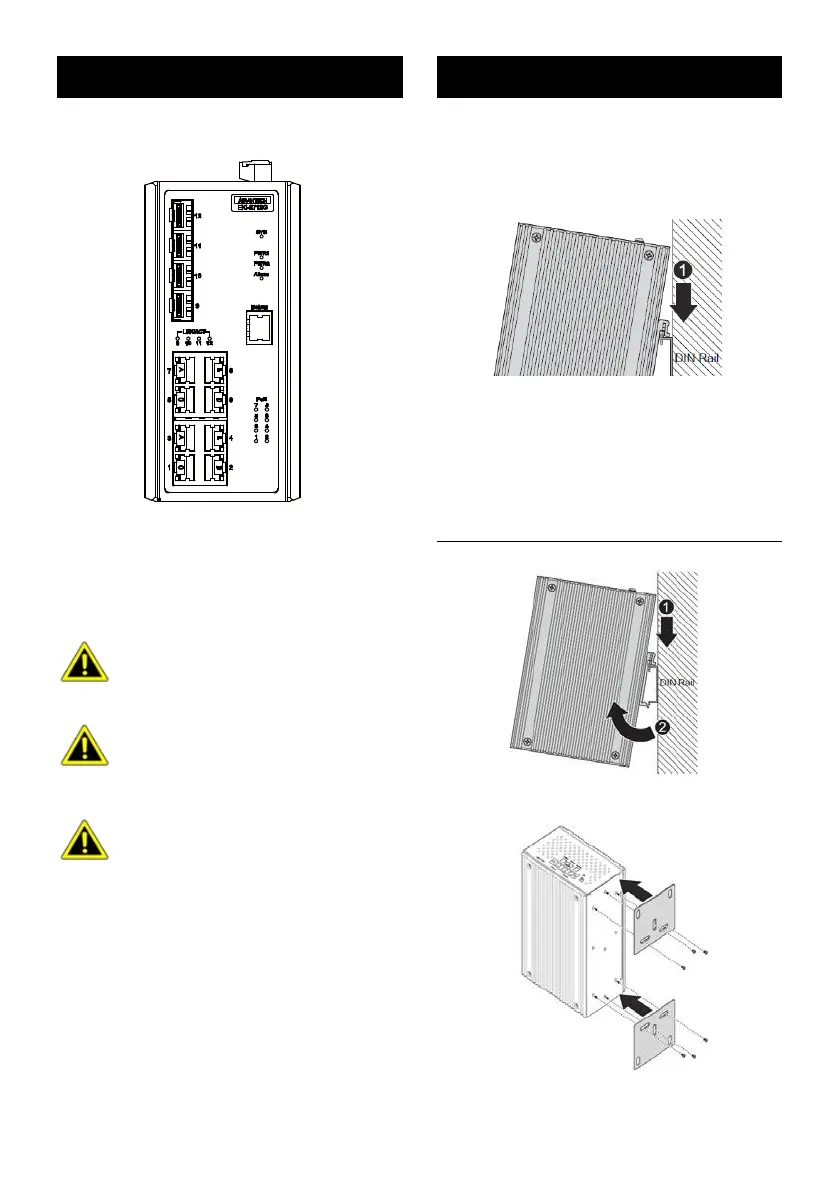

Installing on the DIN rail
WARNING!
1.
Insert the top back of the mounting bracket over the
DIN rail.
2.
Push the bottom of the switch towards the DIN rail until
it snaps into place.
Removing from the DIN-Rail
1.
Push the switch down to free the bottom of the plate
from the DIN rail.
2.
Rotate the bottom of the device towards you and away
from the DIN rail.
3.
Once the bottom is clear of the DIN rail lift the device
straight up to unhook it from the DIN rail.
Wall Mounting
1.
Secure the wall mounting plates to the wall .
Minimum safe height : Up 10 cm/ Down 10 cm
2.
Slide the EKI onto the mounting plates.
Minimum safe height : Up 10 cm/ Down 10 cm
Mounting
Overview
EKI-2712G-4FPI Startup Manual 2
