ITA-2231 Startup Manual 1
Before installing the board, please ensure that the following
items have been shipped:
1. 1 x ITA-2231 IPC
2. 1 x ITA-2231 Accessory Box
3. 1 x ITA-2231 Warranty Card
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Adobe Acrobat Reader is required to view PDF
les. Adobe Acrobat Reader can be downloaded at www.
adobe.com/Prodindex/acrobat/readstep2.html (Acrobat is a
trademark of Adobe).
ITA-2231 Intel® 6th Generation Core™ i Processor 2U
Fanless System with 3 ITA-EM Slots
Startup Manual
Standard Functions
• Chip & Chipset: Intel Core™ i7-6822EQ processor and
QM170 Chipset
• BIOS: AMI SPI 128 Mb
• Memory: Onboard 16GB DDR4-2133
• Display:
Intel HD530, frequency 350 MHz,
Shared system memory up to 512MB SDRAM
• Dual display mode:
Display resolution up to 1920 x 1200 @ 60 Hz,
1 x DVI-I + 1 x DVI-D
• Storage:
- 1 x 3.5”HDD or 2 x 2.5”HDD
- 1 x 2260 size M.2 (only supports SATA interface)
• Expansion slot:
- 3 x ITA-EM slot
- 1 x PCI104
- 1 x Mini PCIe slot
System Specifications
• Ethernet: 2 x 10/100/1000M Ethernet
• USB: 4 USB 3.0, 3 USB 2.0
• DVI: 1 x DVI-D, 1 x DVI-I
• Serial port: 2 DB9 ports, supports RS-232/422/485
• Audio: 1 Speaker Out (supports 4W Amp),1 Mic-in
• ITA-EM module (optional): ITA-EM modules can be
optionally inserted into three ITA-EM slots to make up to
24 additional LAN or COM ports for expansion needs.
Mechanical and Environment
• Dimensions (W x H x D): 427 x 88 x 325 mm
• Voltage input: AC 100-240 or DC 110V
• Working temperature:
- 0 -40 °C (32 ~ 104 °F , with HDD)
- 25 - 60 °C (-13 ~ 140 °F, with SSD)
• Weight:
- Single power: 7.7 kg
- Dual power: 8 kg
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.tw/support
This manual is for the ITA-2231 Series.
Part No. 2001223112
Printed in China
3rd Edition
April 2018
2 ITA-2231 Startup Manual
Jumper/Connector Setting
The board has a number of jumpers and connectors that
allow you to congure your system to suit your application.
The table below lists the function of each of the jumpers
and connectors.
Name / Function
JCMOS1 Clear CMOS setting
PSON1 Power on mode setting
VCCGPIO1 GPIO voltage setting
VIO1
PC/104-Plus Connector VI/O
Voltage setting
COM 1~2 Serial ports
DVI-D DVI-Digital connector
DVI-I DVI-Integrated connector
USB 1~2 USB3.0 connector
USB 3~6 USB2.0 connector
Audio Audio ports
JCMOS1: Clear CMOS Setting
Pins Setting
1-2 Default*
2-3 Clear CMOS setting
*Default setting
Default Clear CMOS
PSON1: Power On Mode Setting
Pins Setting
1-2 AT mode
2-3 ATX mode*
*Default setting
AT Mode ATX Mode
VCCGPIO1: GPIO Voltage Setting
Pins Setting
1-3 Normal(+V5_SB)*
2-4 +V3.3_SB
3-5 +V5
4-6 +V3.3
*Default setting
VIO1: PCI VIO Voltage Setting
Pins Setting
1-6 +3.3V
4-9 Normal(+5V)*
*Default setting
COM 1~2: Serial Ports
RS232 RS422 RS485
Pins Signal Name Signal Name Signal Name
1 DCD Tx- DATA-
2 RxD Tx+ DATA+
3 TxD Rx+ NC
4 DTR Rx- NC
5 GND GND GND
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
Jumpers and Connectors

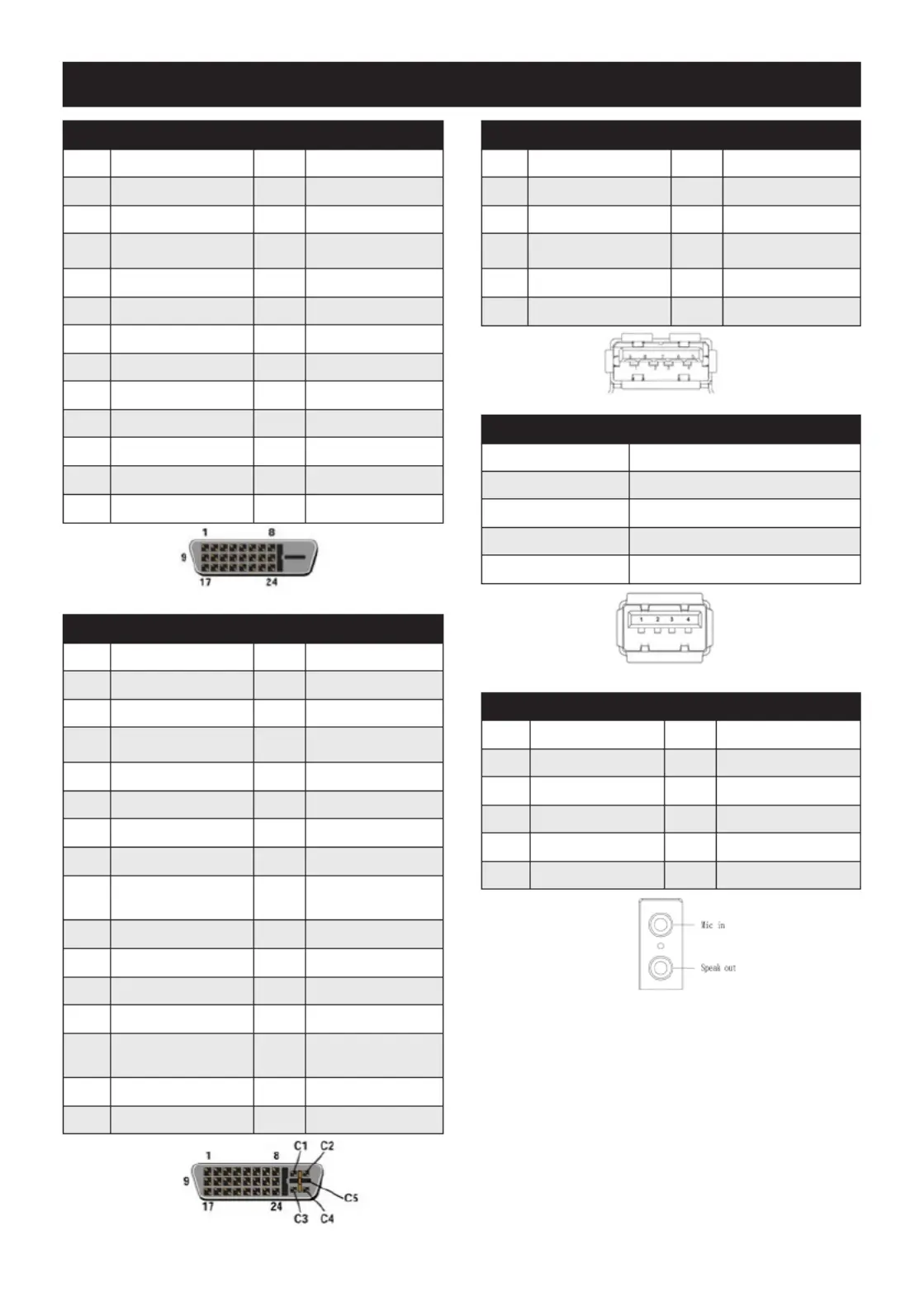

ITA-2231 Startup Manual 3
DVI-D
Pins Signal Name Pins Signal Name
1 T.M.D.S. Data2- 13 Ground
2 T.M.D.S. Data2+ 14 +5V Power
3 Ground 15 Ground
4 Ground 16 Hot Plug Detect
5 Ground 17 T.M.D.S. Data0-
6 DDC Clock 18 T.M.D.S. Data0+
7 DDC Data 19 Ground
8 No Connect 20 Ground
9 T.M.D.S. Data1- 21 Ground
10 T.M.D.S. Data1+ 22 Ground
11 Ground 23 T.M.D.S. Clock+
12 Ground 24 T.M.D.S. Clock-
DVI-I
Pins Signal Name Pins Signal Name
1 T.M.D.S. Data2- 16 Hot Plug Detect
2 T.M.D.S. Data2+ 17 T.M.D.S. Data0-
3 Ground 18 T.M.D.S. Data0+
4 VGA DCC Clock 19 Ground
5 VGA DCC Data 20 Ground
6 DDC Clock 21 Ground
7 DDC Data 22 DVI Detect
8
Analog Vertical
Sync
23 T.M.D.S. Clock+
9 T.M.D.S. Data1- 24 T.M.D.S. Clock-
10 T.M.D.S. Data1+ C1 Analog Red
11 Ground C2 Analog Green
12 Ground C3 Analog Blue
13 Ground C4
Analog Horizontal
Sync
14 +5V Power C5 Ground
15 Ground
Jumpers and Connectors (Cont.)
USB 1~2: USB 3.0 A Type
Pins Signal Name Pins Signal Name
1 VBUS 6 StdA_SSRX+
2 D- 7 GND_DRAIN
3 D+ 8 StdA_SSTX-
4 GND 9 StdA_SSTX+
5 StdA_SSRX-
USB 3~6: USB2.0
Pins Setting
1 +V5(VCC)
2 USB DATA-
3 USB DATA+
4 GND
Audio: Audio Ports
Pins Signal Name Pins Signal Name
1 AUD_GND 6 LOUT_L
2 MIC1_L 7 LOUT_JD
3 MIC_JD 8 AUD_GND
4 AUD_GND 9 LOUT_R
5 MIC_R
