STARTUP MANUAL

1 Startup Manual

ADAM-4541

Fiber Optic to RS-232/422/485 Converter

Packing List

Before you begin installing your module, please make sure

that the following materials have been shipped:

1 x ADAM-4541 Module with DIN-rail mounting

bracket

1 x ADAM-4541 User Manual

1 x Panel Mounting Bracket

1 x Cable for DB-9 to 3-wired

(Red:RX, White:TX, Black:GND)

If any of these items are missing/damaged, contact your

distributor or sales representative immediately.

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com.tw/eservice

This startup manual is for the ADAM-4541

Part No: 20034541013rd Edition

June 2014

Overview

Fiber optic transmission offers the benefits of wide

bandwidth, immunity to EMI/RFI interference, and secure

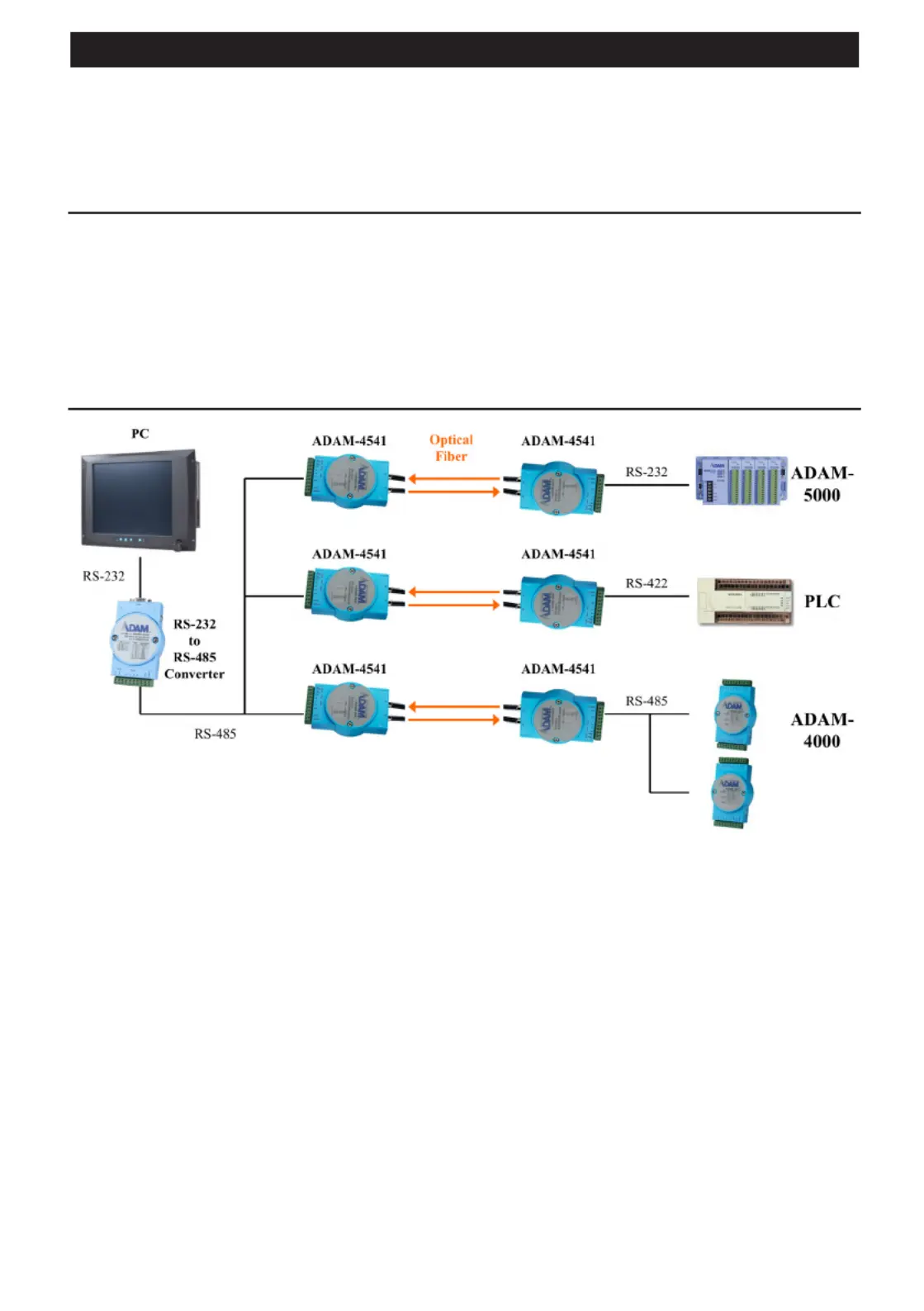

data transmission. The ADAM-4541 can be used as an

RS-232/422/485 point-to-point or ring connection for

transmitting and converting full/half-duplex signals and

their equivalents within a ber optic environment. Fiber

optics are the perfect solution for applications where the

transmission medium must be protected from electrical

exposure, lightning, atmospheric conditions or chemical

corrosion.

The ADAM-4541 is specifically designed to link

various machinery equipped with RS-232/422/485

communication ports (such as computer systems or

manufacturing machines). Using standard ST connectors,

the module's ber optic ports can accommodate a wide

range of ber optic cable sizes, including 62.5/125 µm.

Features

Direct plug-and-play

Easily mounted on a DIN-rail, panel, or piggybacked

Transmission speeds of up to 115.2 kbps

Optical bers enable transmission of up to 2.5 km

Half/Full-duplex, bidirectional transmission mode

Support for ring-mode

Avoid lightning strikes and EMI/RFI

Prevents damage from electrostatic discharge

Stable and error-free data transmission

Automatic internal RS-485 bus supervision

No external ow control signals required for RS-485

Transient suppression and over-current protection on

RS-232/422/485 data lines

LED for power and data ow indication

Specifications

Fiber Optic : Multimode

Wavelength : 820 nm

Transmission Distance : 2.5 km

Optical Power Budget (attenuation) : 15 dB

Casing : ABS with captive mounting hardware

Communication Mode : Asynchronous

Connector : Plug-in screw terminal

Fiber port : ST

Transmission Mode : Full/Half-duplex, bidirectional

Transmission Rate : Up to 115.2 kbps

Power Requirement : Unregulated +10 ~ +30 V

DC

Operating Temperature : -10 ~ 70°C (14 ~ 158°F)

Operating Humidity : 5 ~ 95% (non-condensing)

Accessories : DIN-rail mounting adapter, panel

mounting bracket

Two Year Warranty

Advantech warrants to you, the original purchaser, that

this product will be free from defects in materials and

workmanship for two years from the date of purchase.

This warranty does not apply to any products which

have been repaired or altered by persons other than repair

personnel authorized by Advantech, or which have been

subject to misuse, abuse, accident or improper installation.

Advantech assumes no liability under the terms of this

warranty as a consequence of such events.

If your product is defective, it will be repaired or replaced

at no charge during the warranty period. package and ship

it prepaid to your dealer.
