EAI-3101 Startup Manual 1

Before you start installing your card, please make sure that

the following items have been shipped:

•1 x EAI-3101 GPU card with active fan and full-height

PCIe bracket installed

•1 x Startup Manual

•1 x China RoHS

Note: Regarding OpenVINO, you can go to:

https://www.intel.com/content/www/us/en/devel-

oper/tools/openvino-toolkit/overview.html

to download the latest version.

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

EAI-3101

PCIe x16 Intel® Arc™A380E Embedded GPU Card

Startup Manual

ProductEAI-3101-41A1

Form FactorPCI Express x16

GPUIntel® Arc™ A380E

MemoryGDDR6 6GB

Dimensions

(W x H x D)

152 x 110 x 34.8 mm, Dual Slots

Signal InterfacePCI Express Gen 4.0 x8

Temperature

0~60 °C (Depending on the GPU

and cooler solution)

Max. Power

Consumption

Up to 85 watts

Thermal SolutionSingle Active Fan

Power Connector8-pin power input (required)

Power RangeDC 12V input

Dislay

I/O Ports

DP

4 x DisplayPort 1.4a,

7680 x 4320 @ 60Hz, 8K

Graphics Engine

DirectX 12, OpenGL 4.6, OpenCL

3.0

HW Encode: H.264/H.265 (HEVC)/

AV1

HW Decode: H.264/H.265 (HEVC)/

AV1/VP9

•Above 4G Decoding enabled

•Resizable (Re-Size) BAR support enabled

•Compatibility Support Module (CSM) or Legacy Mode

must be disabled and UEFI boot mode must be Enabled.

Notes: The procedure to enable the resizable BAR

maybedi󰀨erentforeachsystemmanufacturer.

Please check with your system manufacturer for

specicinstructionsasnecessary.

The Resizable BAR option may be described as

Re-Size BAR, Smart Access Memory, or Clever

Access Memory.

Visit the Intel website to get more information:

https://www.intel.com/content/www/us/en/sup-

port/articles/000091128/graphics.html

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for EAI-3101.

Part No. 2046310100

Printed in Taiwan

Edition 1

May 2024

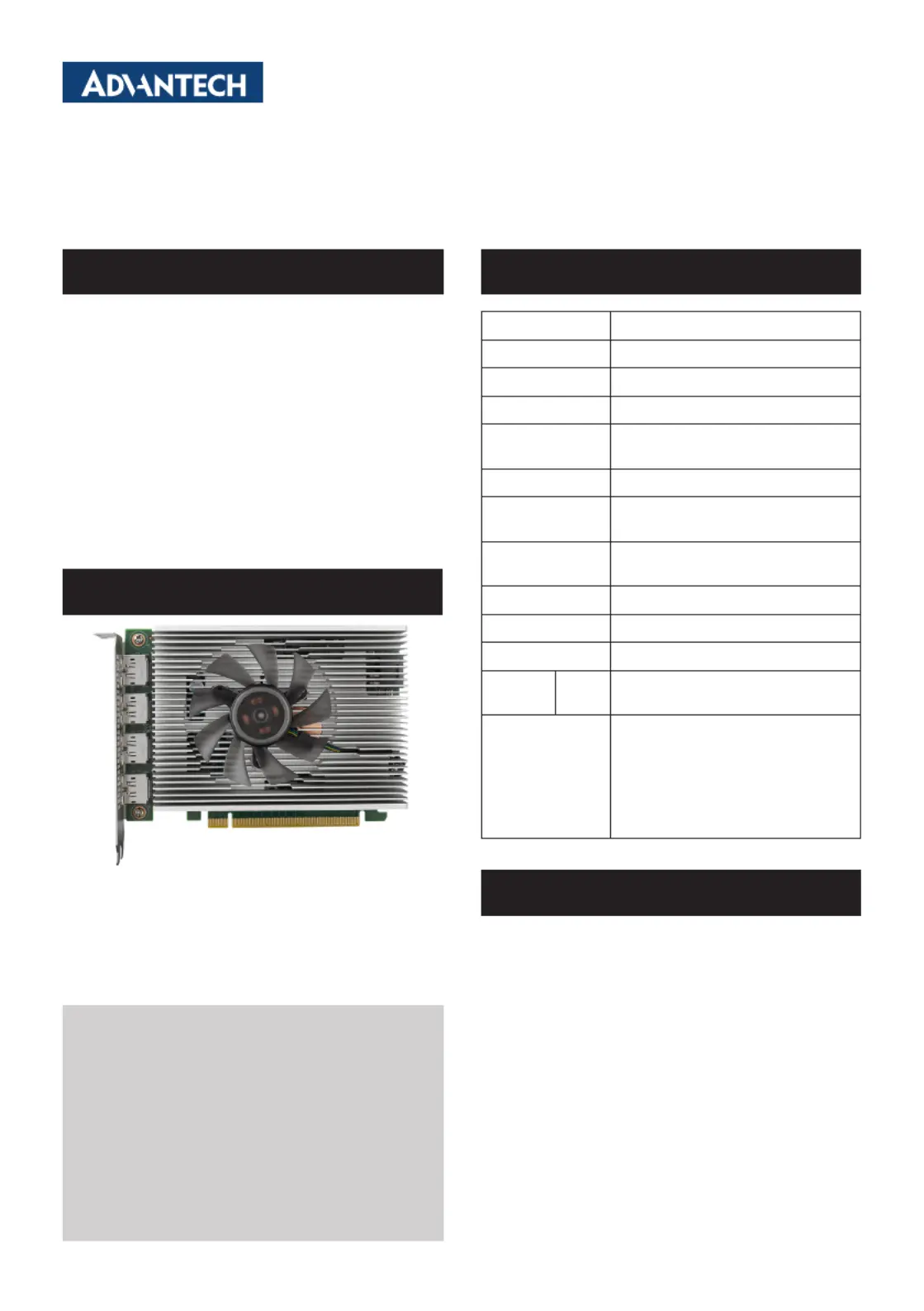

Product Picture
