EKI-2708G/2710G Series Startup Manual 1
EKI-2708G-PI&EKI-2710G-2FPI
Industrial Unmanaged PoE Switch
Startup Manual
Specications
Overview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for EKI-2708G-PI & EKI-2710G-2FPI.
Part No. 2049270800
Printed in Taiwan
1st Edition
Feb 2024
General
• Compatibility: IEEE 802.3, 802.3u, 802.3z, 802.3ab,
802.3x, 802.3at/af
• LAN:
EKI-2708G-PI:
- 8 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
EKI-2710G-2FPI:
- 8 x 10/100/1000BASE-T/TX RJ-45 PoE Ports
- 2 x SFP (mini-GBIC) 100/1000Mbps port
• Ethernet RJ-45: Up to 100 m
• SFP: Up to 110 Km (depends on SFP)
• Connectors:
- EKI-2708G-PI: 8 x RJ-45
- EKI-2710G-2GPI: 8 xRJ45, 2 x SFP
• Switch Architecture: Store and Forward
• Power Input: 12~48VDC, redundant power
• Power Consumption: Max 5.28W (system)
• Power Budget:
- 240W@48VDC
- 120W@24VDC
- 80W@12VDC
• Dimensions (W x H x D): 54 x 140 x 120 mm
• Enclosure: IP30
• Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature: -40 ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% (non-condensing)
• Storage Humidity: 5 ~ 95% (non-condensing)
• Safety: LVD EN62368
• EMC: FCC Class A, CE
• Warranty: 5 year
The EKI-2708G and EKI-2710G PoE Switch: These
unmanaged Ethernet switches support 8 PoE+ (Power over
Ethernet) ports and comply with IEEE 802.3at/af standards.
Each port provides up to 30 watts of power, with a total
power budget of 240 watts for the system. The switch
includes a relay output for event alarms, notifying adminis-
trators when activated. Designed for harsh environments, it
features robust construction, din rail mounting, and a quick
startup with plug-and-play functionality.
The EKI-2708G and EKI-2710G support IEEE
802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000
Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X
auto-sensing to provide an economical solution for your
industrial Ethernet network.
Packing List
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2708G/EKI-2710G Ethernet Switch
• 1 x DlN-rail mounting brackets with screws
• 1 x EKI-2708G/EKI-2710G Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
User Manual
For more detailed information, please refer to the full
manual which can be found on the Advantech’s website.
2 EKI-2708G/2710G Series Startup Manual
EKI-2708G-PI EKI-2710G-2FPI
E KI-2525/I

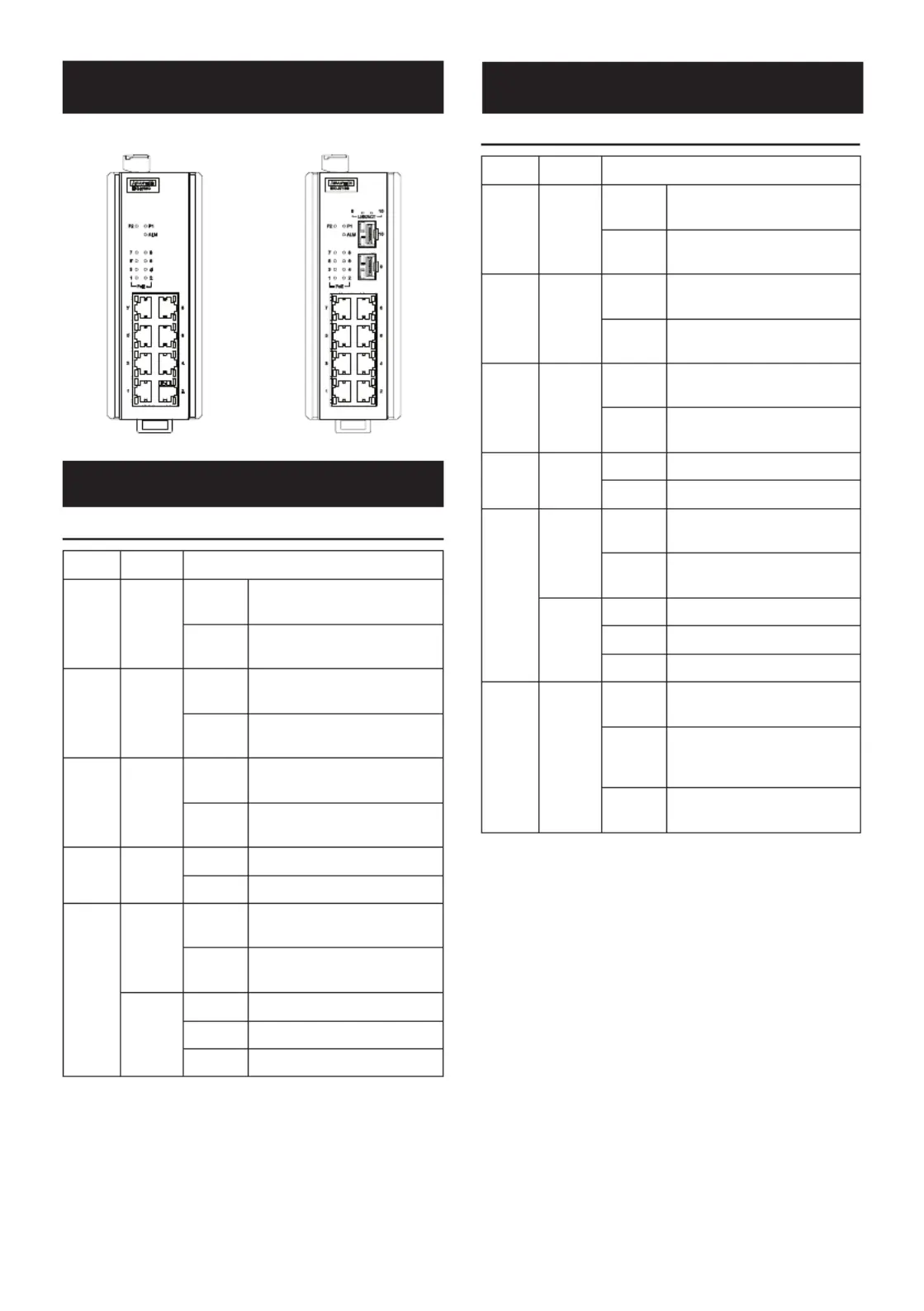

LED Denition
EKI-2708G-PI
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O
P2 is not being supplied to
power input.
ALM Green
On
When P1 or P2 is discon-
nected, the LED lights
O
When P1 or P2 is con-
nected,theLEDiso
PoE
(1~8)
Green
On PoE activated
O PoE non-working
Copper
Ports
(1~8)
Green
(top)
On
When the port’s data is being
transmitted at 1000Mbps
O
When the port’s data is being
transmitted at 10/100Mbps
Green
(bottom)
On Ethernet port link
Blinking Ethernet port active
O No link
EKI-2710G-2FPI
LED Color Description
P1 Green
On
P1 is being supplied to
power input.
O
P1 is not being supplied to
power input.
P2 Green
On
P2 is being supplied to
power input.
O
P2 is not being supplied to
power input.
ALM Green
On
When P1 or P2 is discon-
nected, the LED lights
O
When P1 or P2 is con-
nected,theLEDiso
PoE
(1~8)
Green
On PoE activated
O PoE non-working
Copper
Ports
(1~8)
Green
(top)
On
When the port’s data is being
transmitted at 1000Mbps
O
When the port’s data is being
transmitted at 10/100Mbps
Green
(bottom)
On Ethernet port link
Blinking Ethernet port active
O No link
SFP
Port
(9~10)
Green
On
The port has established
a link
Blinking
When Fiber port’s data
is being transmitted at
100M/1000Mbps
O
When Fiber port linked
down/inactive
Overview
LED Denition (Cont.)
EKI-2708G/2710G Series Startup Manual 3

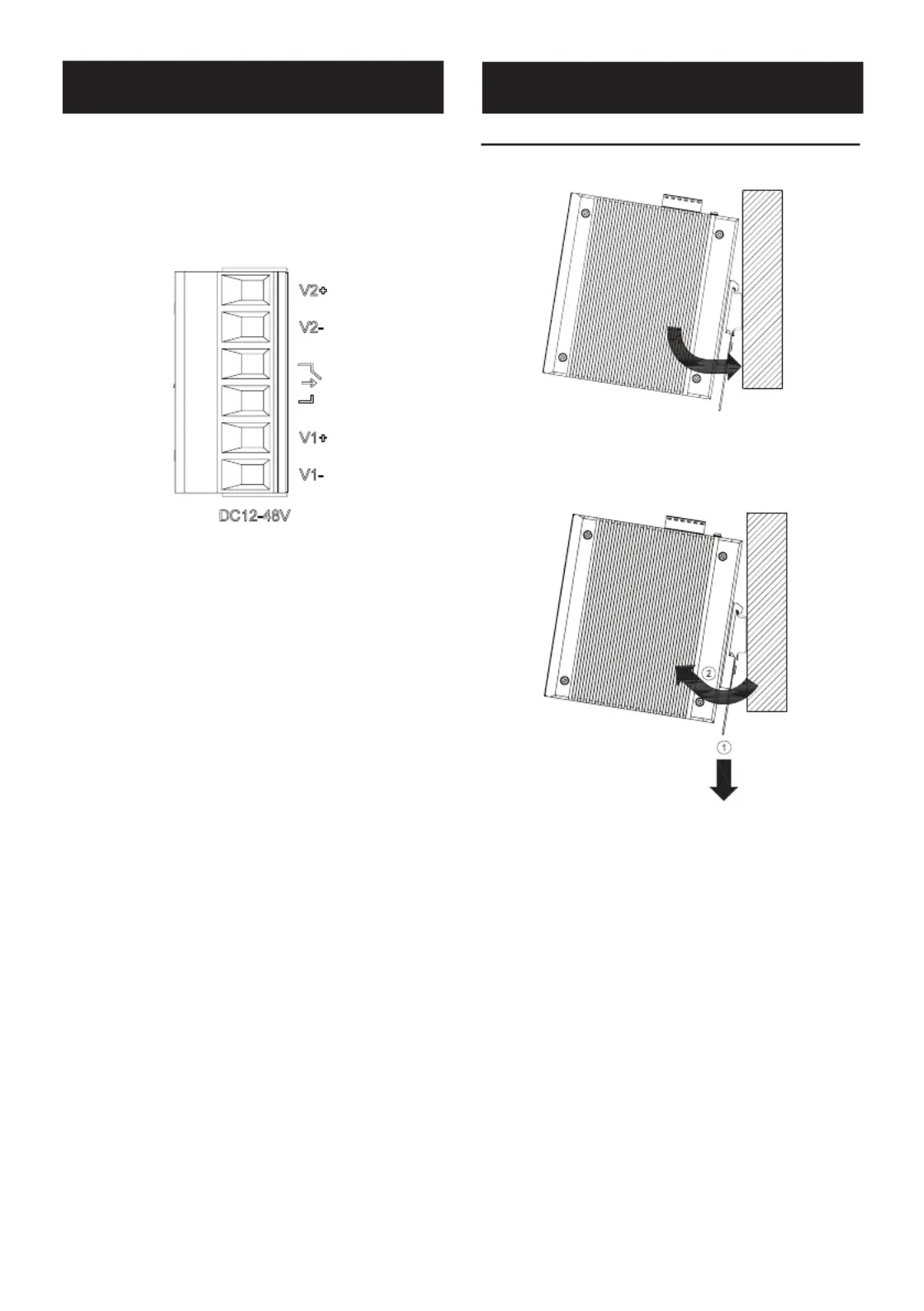

The EKI-2708/EKI-2710 switch supports dual +12~48 VDC
power inputs and changes relay status when power failure
occurs.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose
Warning: This product is intended to be supplied by an
ULcertiedpowersupplyordcsourcesuitableforuseat
minimum Tma 75 °C whose output meets SELV or ES1 and
is rated 12-48 Vdc, 0.8A min., if need further assistance,
please contact Advantech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a power outlet.
The power outlet socket should have grounded connection.
Warning: Never open the equipment. For safety reasons,
theequipmentshouldbeopenedonlybyqualiedskilled
person.
Avertissement: Ce produit est destiné à être alimenté par
unealimentationcertiéeULouunesourcedecourant
continu adaptée à une utilisation à au moins Tma 75 °C
dont la sortie satisfait les conditions SELV ou ES1 et est
évaluée à 12-48Vdc, 0.8A min-imum. Si vous avez besoin
d’une aide supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter l’équipement
à une prise de courant. La prise de courant doit avoir une
prise de terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des
Raisons de sécurité, l’équipement ne doit être ouvert que
parunepersonnequaliée.
DIN-rail Mounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail Mounting Kit.
Power Connection
