ADAM-3017 Startup Manual 1
ADAM-3017 is an external powered signal conditioner
for powering IEPE sensors that is easy to integrate into
any measurement chain. Simply connect a cable from the
sensor to the input and a cable from the data acquisition
system to the output.
• IEPE current support: 4, 6, 10 mA
• Signal amplification of 1x, 10x, and 100x
• LED indicator for sensor open, short and normal
ADAM-3017-AE External Powered IEPE Signal
Conditioner
968AG00014 BNC to terminal block adaptor
ADAM-3017
External Powered IEPE Signal Conditioner
Startup Manual
Integrated Electronic Piezoelectric Excita-
tion (IEPE) Signal Conditioning
• Channels:1
• IEPE Current : 0, 4, 6, or 10 mA ± 5%
• Gain: 1, 10, or 100 (for AC signal)
• Gain accuracy: < ±2% for all gain settings
• Couple: DC or AC
• Input voltage: 4 ~ 24 V (normal operation)
• Amplifier output voltage: 4 ~ 24 V (normal operation)
• Compliance: > 24 V
• Upper cut-off frequency (for all couple settings)
x1, x10 gain (-5%): 100 kHz
x100 gain (-15%): 50 kHz
• Lower cut-off frequency (-5%, 1 M load, for all gain Ω
settings)
DC couple : DC
AC couple (1 μF): 1.77 Hz
AC couple (47 μF): 0.038 Hz
• Discharge time constant (1 M load, for all gain settings) Ω
DC couple: 0 second
AC couple (1 μF): > 0.3 seconds
AC couple (47 μF): > 13 seconds
• DC offset: < ±30 mV
Isolation Protection
• Input/Output to Power: 2,500 V
DC
Power Requirements
• Supply voltage : +24 V
DC
± 10%
• Current consumption:
35 mA typical
45 mA max. (with 0 mA IEPE current)
Environmental
• Operating temperature: 0 to 60 °C (32 to 140 °F)
• Storage temperature: -20 to 70 °C (-4 to 158 °F)
• Storage humidity: 5 to 95% RH, non-condensing
Overview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the ADAM-3017.
Part No. 2001301700
Printed in Taiwan
1st Edition
Aug 2017
Specications
Features
Ordering Information
Accessories

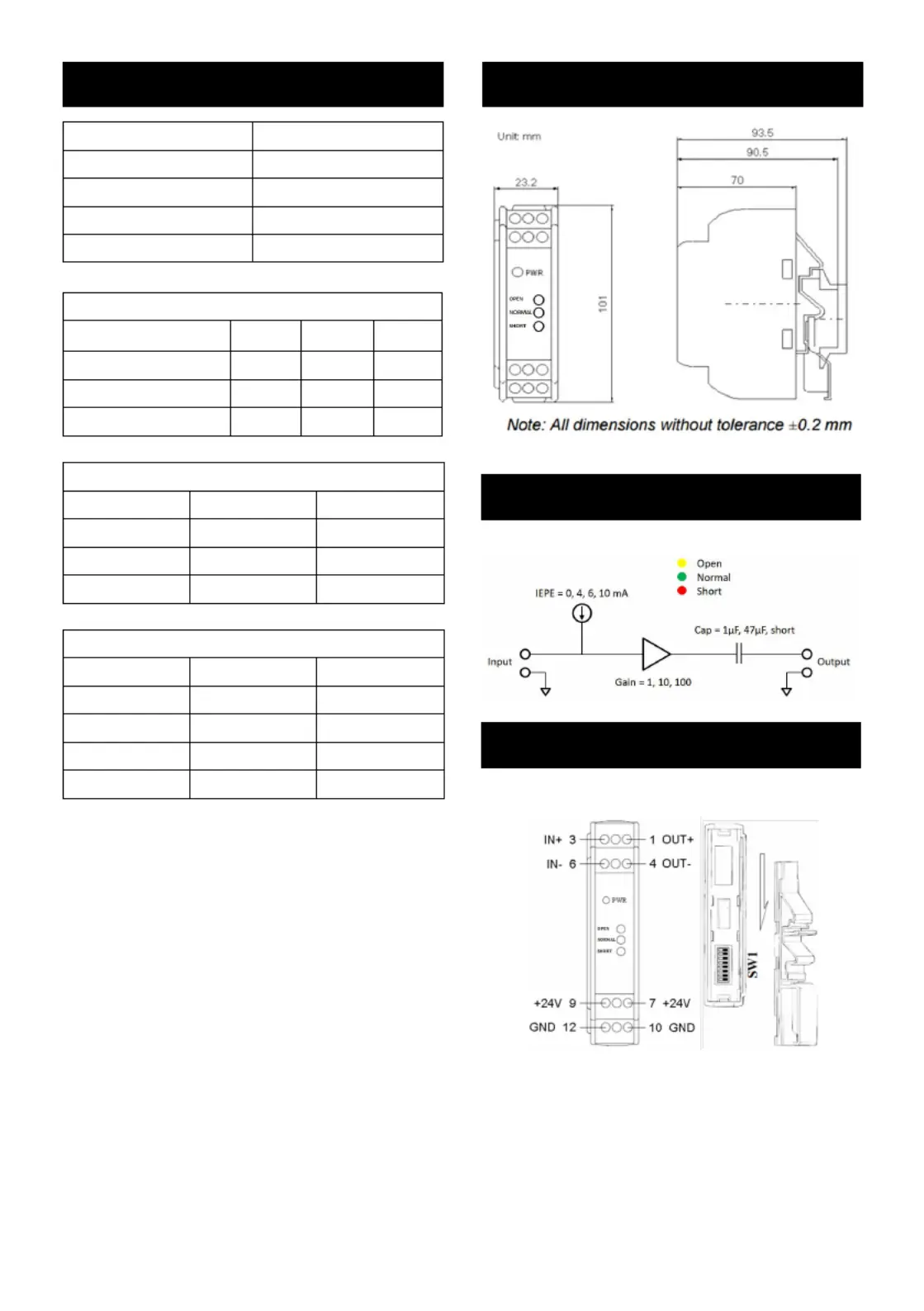

2 ADAM-3017 Startup Manual
LED Indicator Description
PWR 24 V Power
Open (Yellow) Sensor Open (> 25 V)
Normal (Green) Normal Operation
Short (Red) Sensor Short (< 1 V)
DC/AC Couple Setting (SW1)
Couple 1 2 3
DC Couple ON OFF OFF
*AC Couple (1 μF) OFF ON OFF
AC Couple (47 μF) OFF OFF ON
Gain Setting (SW1)
Gain 5 6
*1 ON ON
10 OFF ON
100 ON OFF
IEPE Setting (SW1)
Current 7 8
0 mA OFF OFF
* 4 mA ON OFF
6 mA OFF ON
10 mA ON ON
* Default setting
Dimensions LED Indicators and Switch setting
Function Block Diagram
Terminal Wiring Diagram
