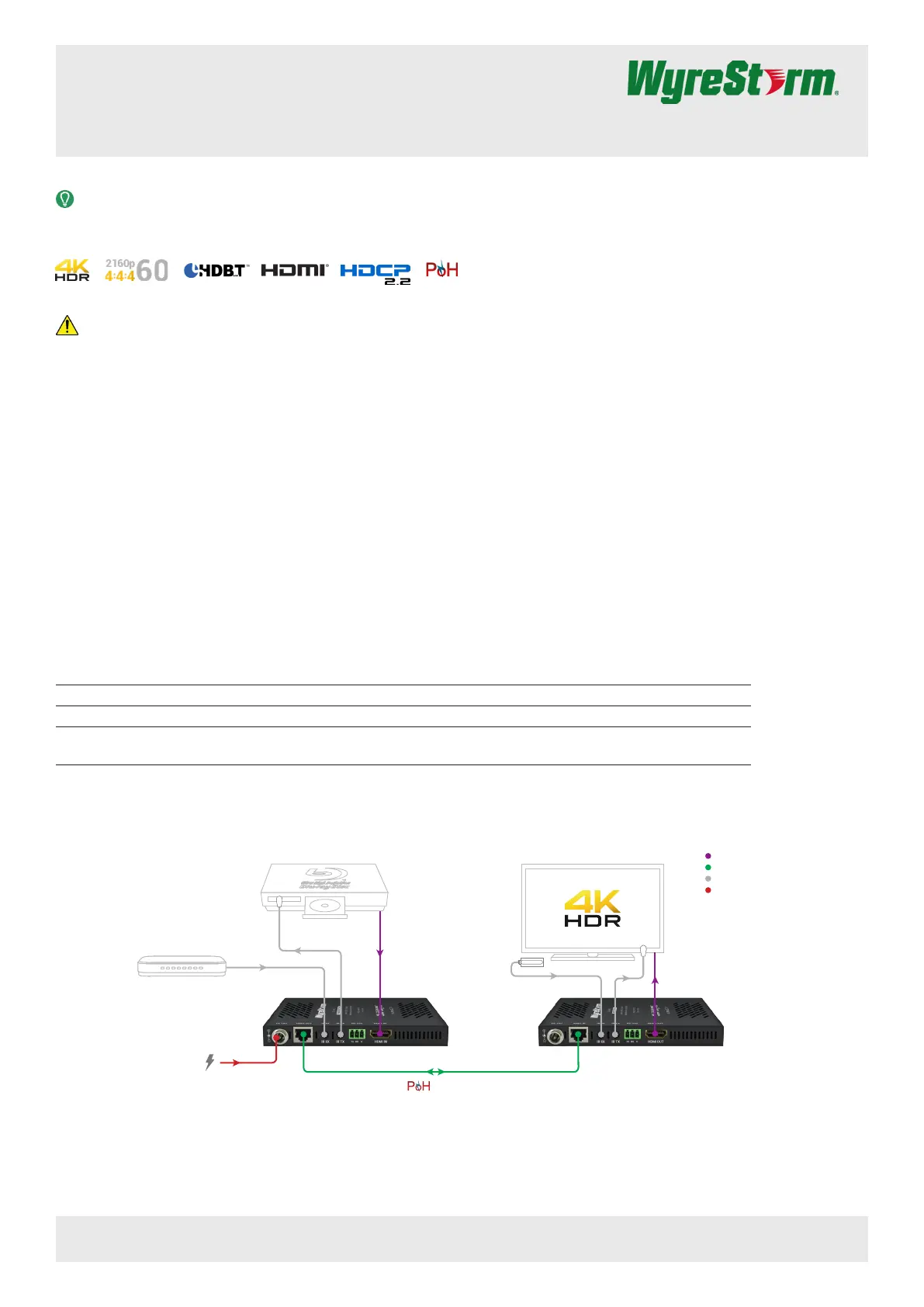

18Gbps 4K HDR HDBaseT Extender with
HDCP 2.2 and 2-way PoH
EX-35-H2
Quickstart Guide
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
EX-35-H2 Quickstart Guide | 190509
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
Identifying Product Versions
This product was released in 2 different versions which contain different chassis designs and feature sets. The differences are identied throughout this
document in order to make installation and use easier.
Versions can be identied by a v# after the model number on the product chassis model number sticker. Note that version 1 of this product may not contain a
v1 after the product while all version 2s will contain a v2 after the model number.
Operational Differences
FeatureVersion 1Version 2
RS-232 Mode SwitchYesNo – Changes made this switch unnecessary
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4
Not Supported on Category Cable (HDBaseT)Supported on Category Cable (HDBaseT)
Basic Wiring Diagram
IMPORTANT! Installation Requirements
• This product was released in 2 different versions which contain different
chassis designs and feature sets.
• See Identifying Product Versions for details.
• Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x EX-35-H2 Transmitter
1x EX-35-H2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connectors
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
HDMI
HDMI
IR Emitter
IR Emitter
IR Receiver
18V DC 1A
Power Supply
IR to Control System
CAB-IR-LINK (Sold Separately)
EX-35-H2 Transmitter (TX) EX-35-H2 Receiver (RX)
4K/UHD HDMI Source4K/UHD HDMI Display
KEY
HDMI
HDBaseT Cat6/7
IR TX and RX
Power
HDBaseT
Cat5e/6/6a/7
Note: Extender set may be powered
by either the TX or RX. Only one
power supply is required.
Product specificaties
| Merk: | WyreStorm |
| Categorie: | Audio/video-converter |
| Model: | EX-35-H2 |
| Soort bediening: | Draadloos |
| Kleur van het product: | Zwart |
| Gewicht: | 360 g |
| Breedte: | 140 mm |
| Diepte: | 90.2 mm |
| Hoogte: | 17 mm |
| Soort: | AV-zender & ontvanger |
| Stroom: | 1 A |
| Connectiviteitstechnologie: | Bedraad |
| Ethernet LAN: | Ja |
| Maximum resolutie: | 4096 x 2160 Pixels |
| Vermogensverbruik (max): | 8.88 W |
| Certificering: | CE | FCC | RoHS | RCM |
| HDCP: | Ja |
| HDMI versie: | 2.0 |
| Remote (IR) ingang: | 1 |
| Duurzaamheidscertificaten: | RoHS |
| Plug and play: | Ja |
| Temperatuur bij opslag: | -20 - 70 °C |
| Luchtvochtigheid bij opslag: | 10 - 90 procent |
| Rack-montage: | Ja |
| Audio-uitgangskanalen: | 2.0 kanalen |
| Remote (IR) uitgang: | 1 |
| Power over Ethernet (PoE): | Ja |
| HDMI in: | 1 |
| RJ-45 uitgang ports: | 1 |
| HDCP versie: | 2.2 |
| IR-doorvoer: | Ja |
| Bandbreedte: | 9.2 Gbit/s |
| Aantal HDMI-uitgangen: | 1 |
| RJ-45 invoer ports: | 1 |
| Operating voltage: | 18 V |
| HDBaseT-poort: | Ja |
| Maximaal bereik: | 70 m |
| Bedrijfstemperatuur (T-T): | 0 - 45 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 10 - 90 procent |
| HDCP- & EDID-omzeiling: | Ja |
| Ondersteundende kabel types: | Cat6, Cat6a, Cat7, HDMI |
| Extended display identification data (EDID): | Ja |
| HDCP-passthrough: | Ja |
| RS-232-passthrough: | Ja |
