ATOLL ELECTRONIQUE

OWNER’S MANUAL ~ CONVERTER

DAC300

ATOLL ELECTRONIQUEPage 5Page 4

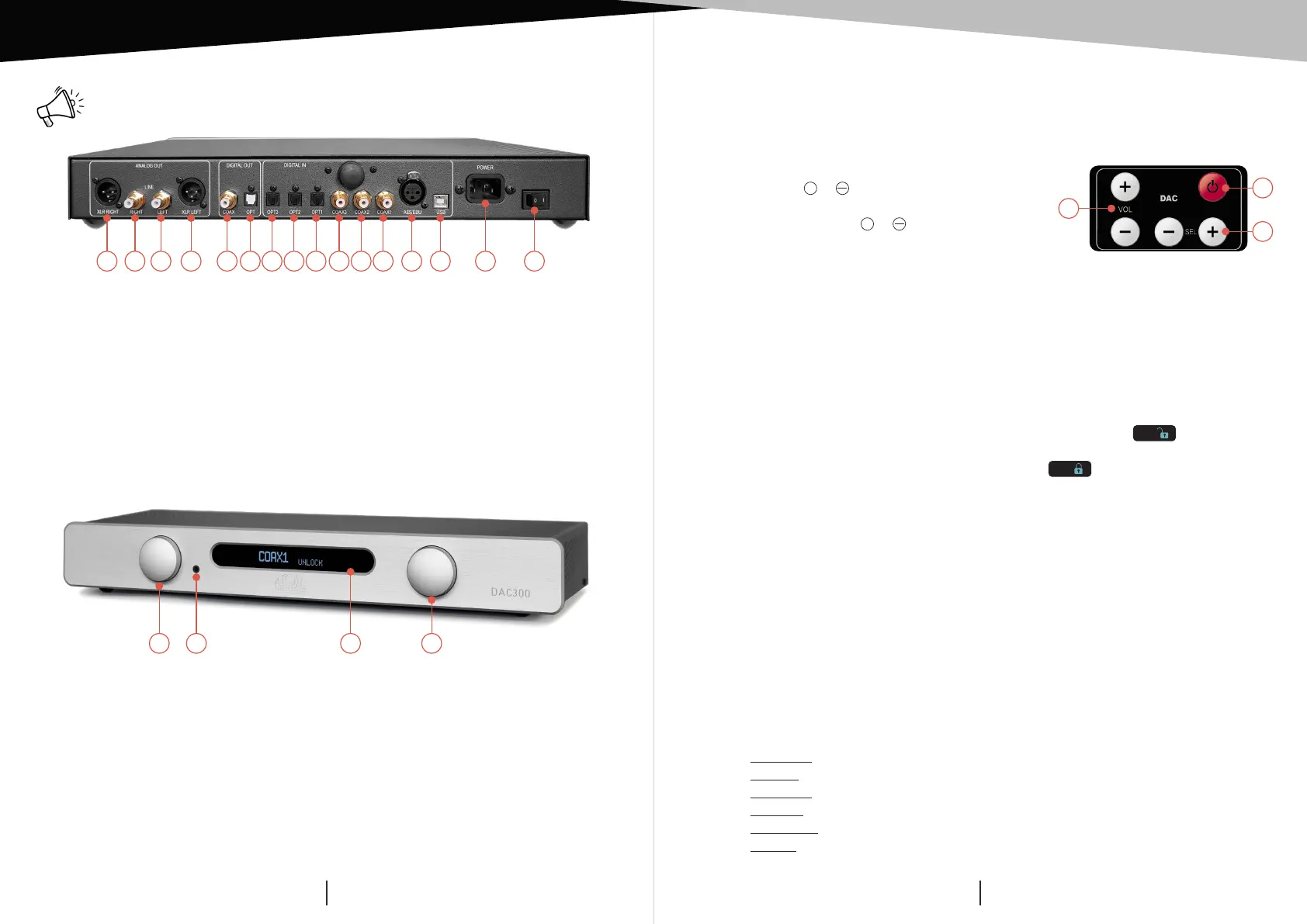

1) XLR output (Right).

2) Analog output (Right).

3) Analog output (Left).

4) XLR output (Left).

5) Digital output (coaxial).

6) Digital output (optical).

7) Digital input 3 (optical).

8) Digital input 2 (optical).

9) Digital input 1 (optical).

10) Digital input 3 (coaxial).

11) Digital input 2 (coaxial).

12) Digital input 1 (coaxial).

13) AES input.

14) USB input (type B).

15) Power plug.

16) ON/SLEEP switch.

CONNECTINGREMOTE CONTROL

DETAILS OF FUNCTIONS

Reminder: do not make any connections when your device is turned on.

17)ON/SLEEP knob and sources selection.

18) Headphones output (jack 3,5mm): linking the headphones shut down the

Output signals).

NB:

When you connect a headphones, regardless of the BY-PASS mode,

you’ll switch to volume management mode (BY-PASS OFF) in order to

manage the volume level of the headphones.

19) Display: selected source shows on the left and frequency sampling on the

right. When no signal is detected display shows UNLOCK.

20) Volume control knob (when BY-PASS OFF) from 0 to 80 and filters setup.

The remote control is equipped with 2 Lithium CR2025 batteries. This remote control

is also able to drive all others ATOLL’s products: CD players; Tuner; Integrated or

Preamplifier. (See those manuals for details).

(*)

Volume control is possible only when BY-PASS OFF. When changing the volume, level

is displayed shortly, then the display shows the sampling frequency.

BLUETOOTH®

FILTERS SETUP

Your appliance allows the reception of audio signals sent since any devices having a

Bluetooth transmitter (Smartphone, tab, computer…).

First time association:

• Activate the Bluetooth® connectivity of your emitter device.

• Select the Bluetooth® (BT) input of DAC300: unlock symbol

BT

appears.

• Select your appliance on the list of possible receiver (named DAC300).

• Once the connection is made, the lock symbol

BT

appears.

The whole audio signals of your device source will then be transmitted towards your

DAC300. Your emitter device will remain associated until you unlock the DAC300 with

your Smartphone or switch off your amplifier.

Association of another emitter:

• To connect another emitter, you’ll need to disconnect the first emitter. The quality

of reception of the signal depends on the power of the Bluetooth® emitter and

the distance between the 2 devices.

Avoid being more than 5 meters of your DAC300 for a correct reception without any

risks of signal cuts.

While pressing knob (20) you can choose different kinds of digital filters which you can

select during listening:

• Standard: fast roll-off, minimum phase filter.

• Fast lin: fast roll-off, linear phase filter.

• Slow min: soft roll-off, minimum phase filter.

• Slow lin: soft roll-off, linear phase filter.

• Apodizing: Fast roll-off by apodizing and linear phase filter

• Hybrid: fast roll-off and minimum phase filter

21) Volume keys

+

&

(*)

.

22) ON/SLEEP key.

23) Source selection keys

+

&.

21

22

23

17181920

12345710681113912141615
